Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3. Tests for the proper operation of the circuit in the low voltage range. If the fuse in the jumper opens when you perform this test, the signal circuit is shorted to voltage.

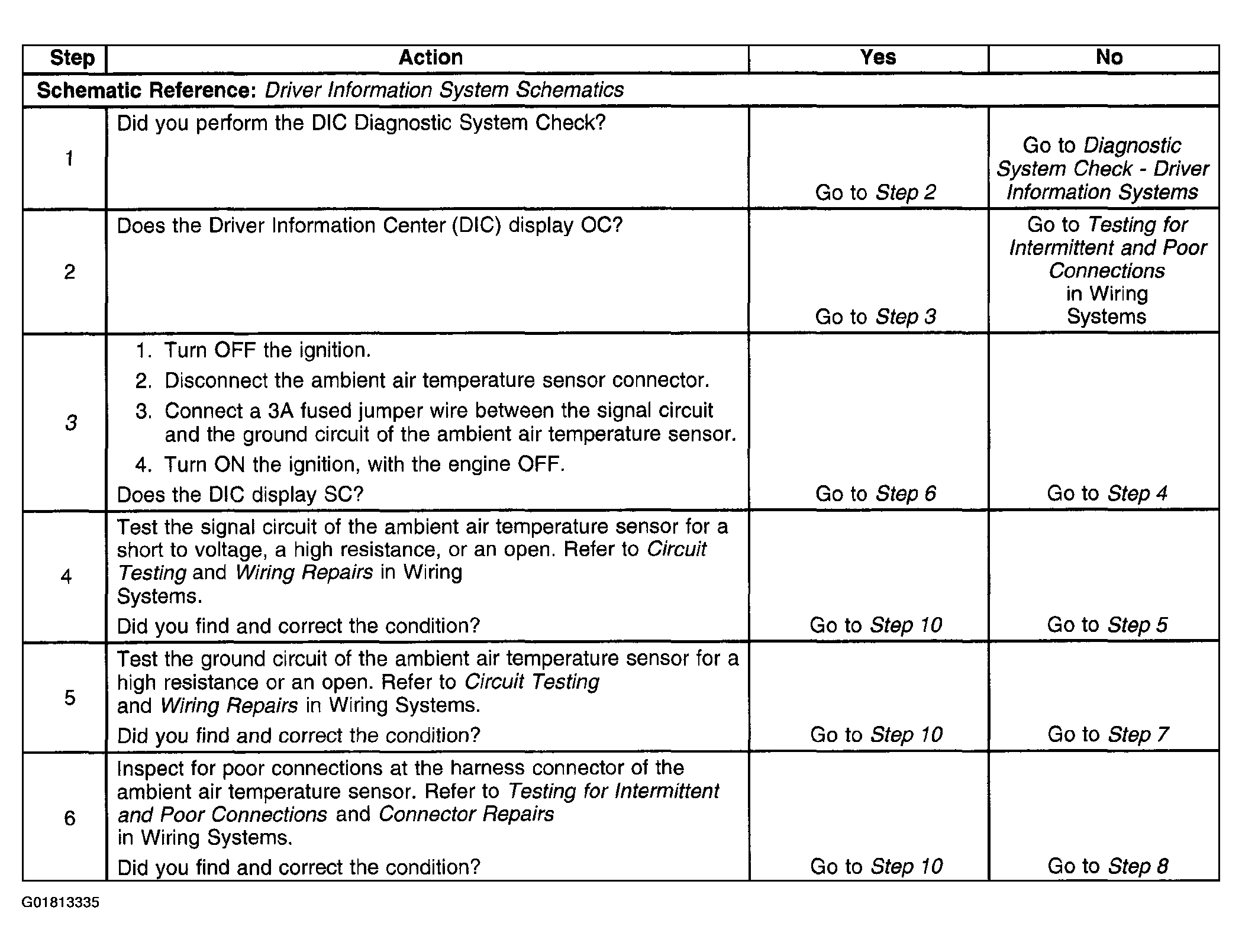

    Fig 1: DTC B0162 (1 Of 2)
    G01813335Courtesy of GENERAL MOTORS CORP.

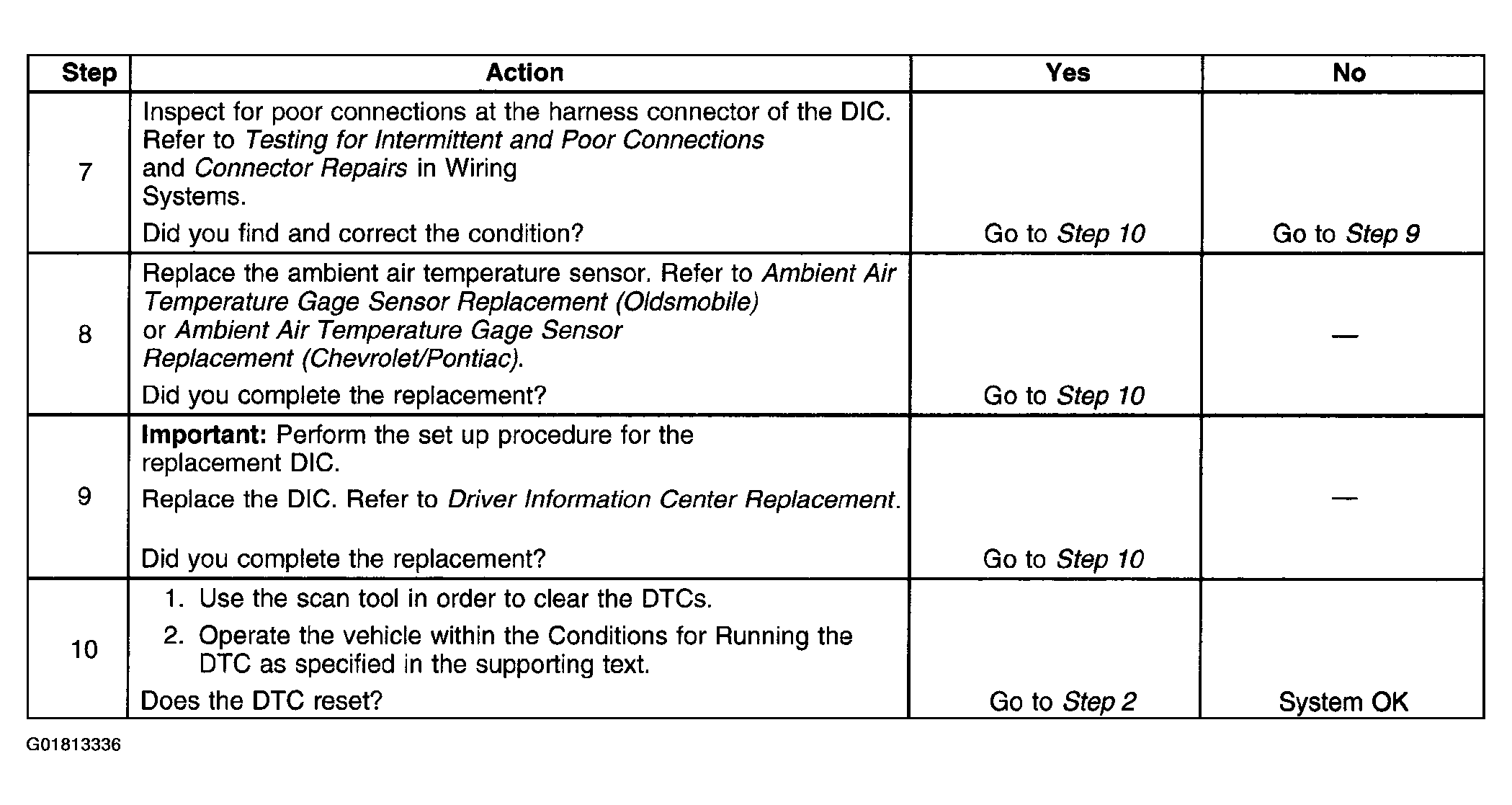

Fig 2: DTC B0162 (2 Of 2)
G01813336Courtesy of GENERAL MOTORS CORP.
