Instrument Panel, Gages, and Console Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

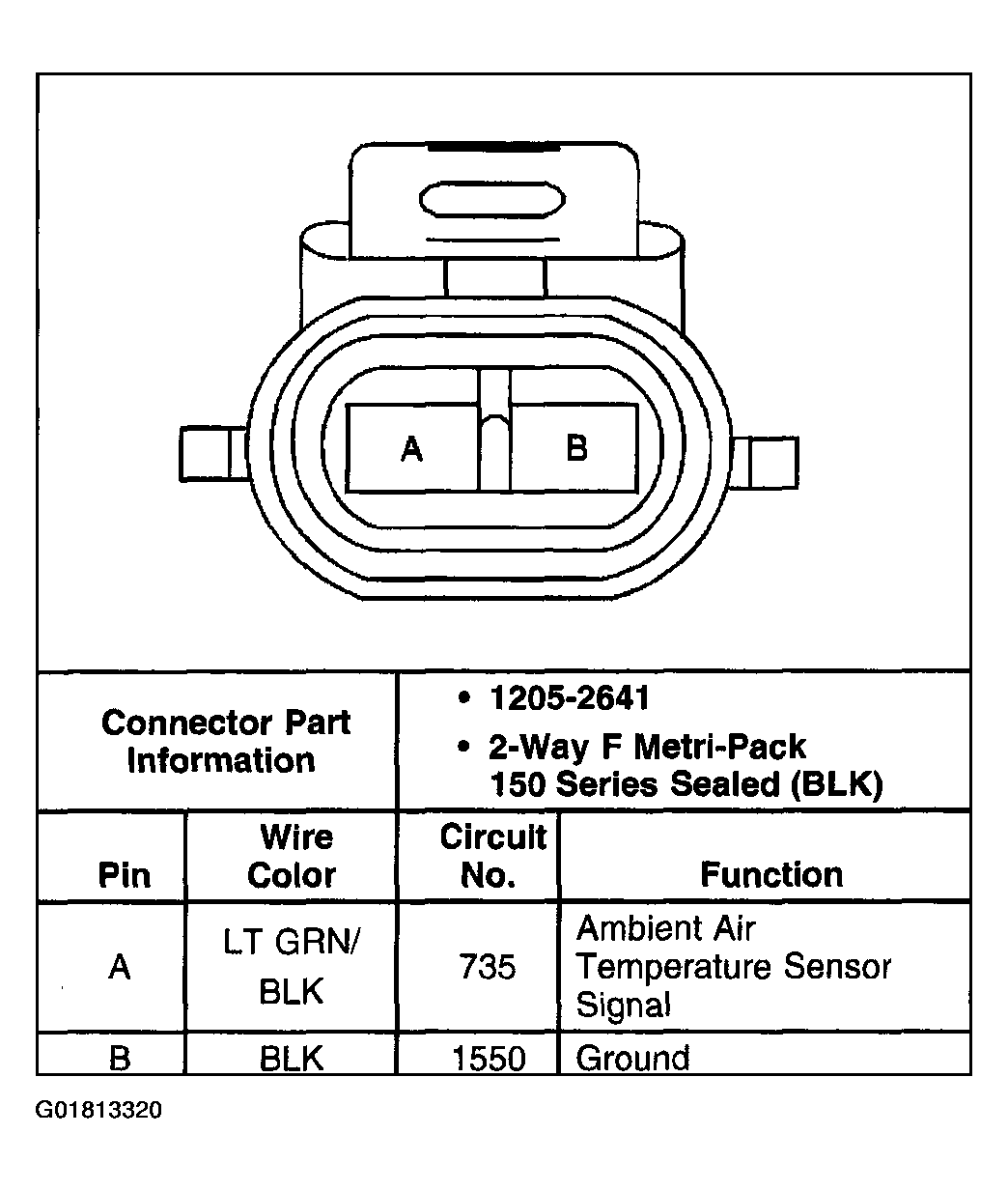

Fig 1: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 2: Driver Information Center (DIC)

Courtesy of GENERAL MOTORS CORP.

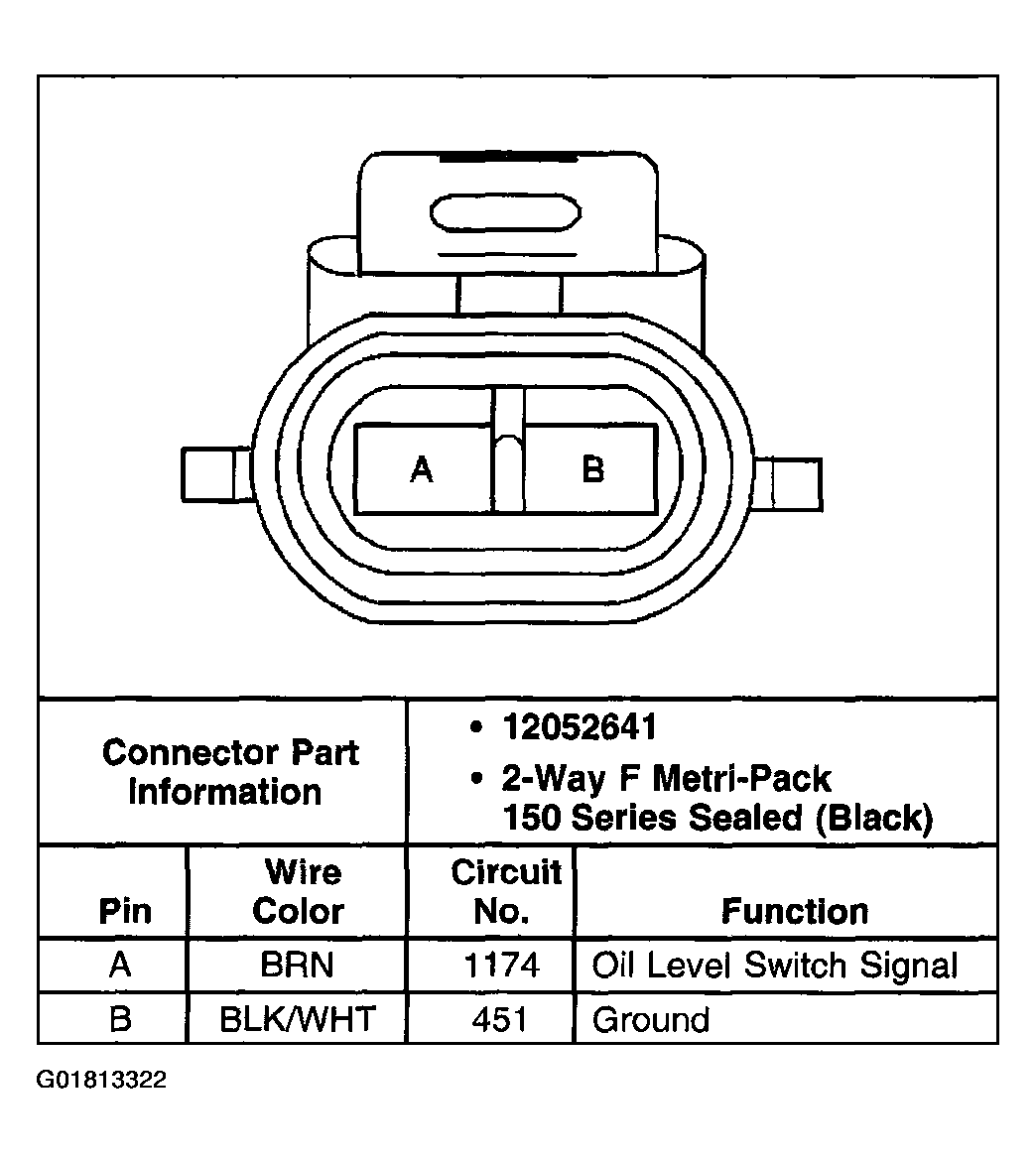

Fig 3: Engine Oil Level Switch

Courtesy of GENERAL MOTORS CORP.

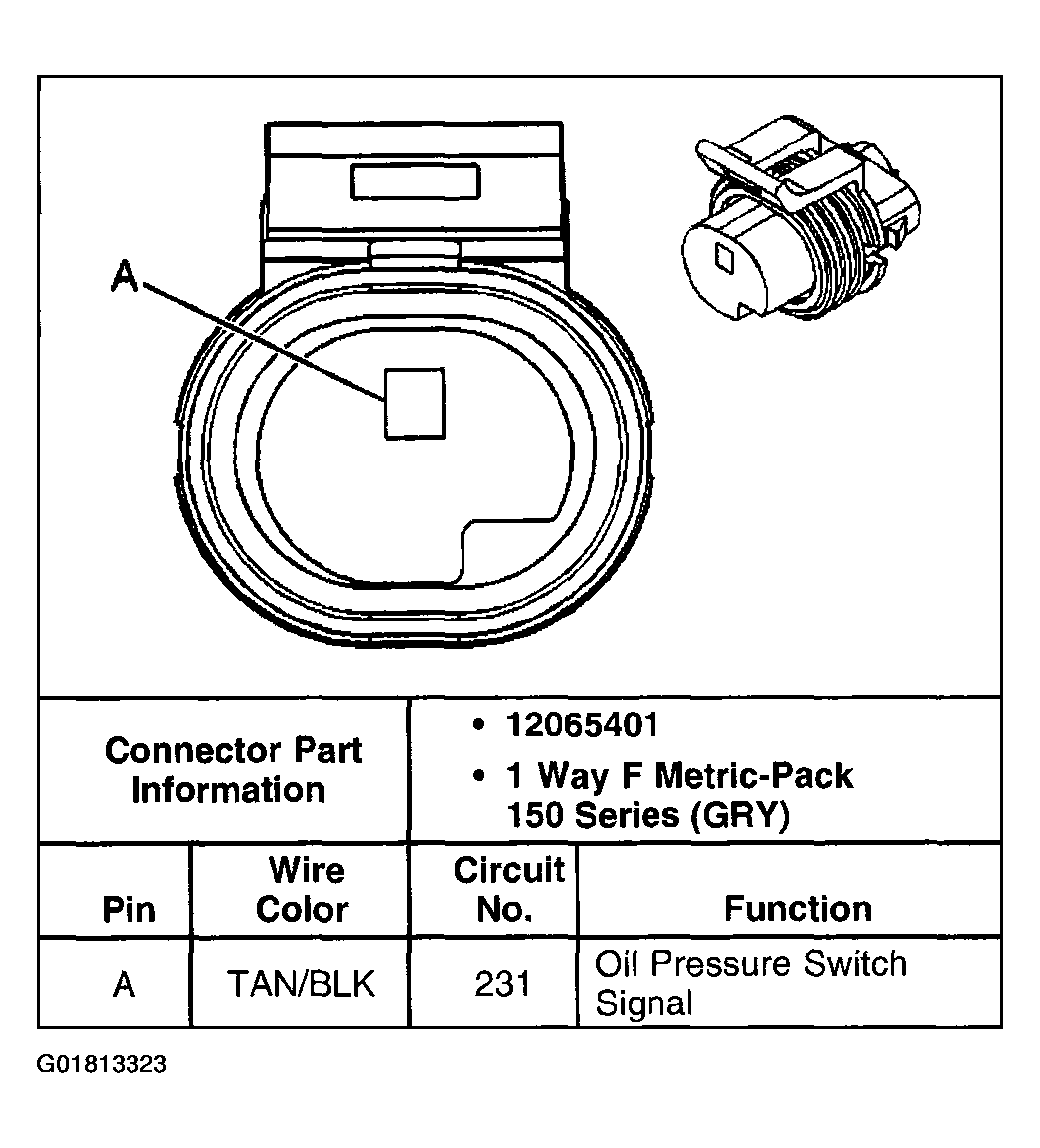

Fig 4: Engine Oil Pressure (EOP) Switch

Courtesy of GENERAL MOTORS CORP.

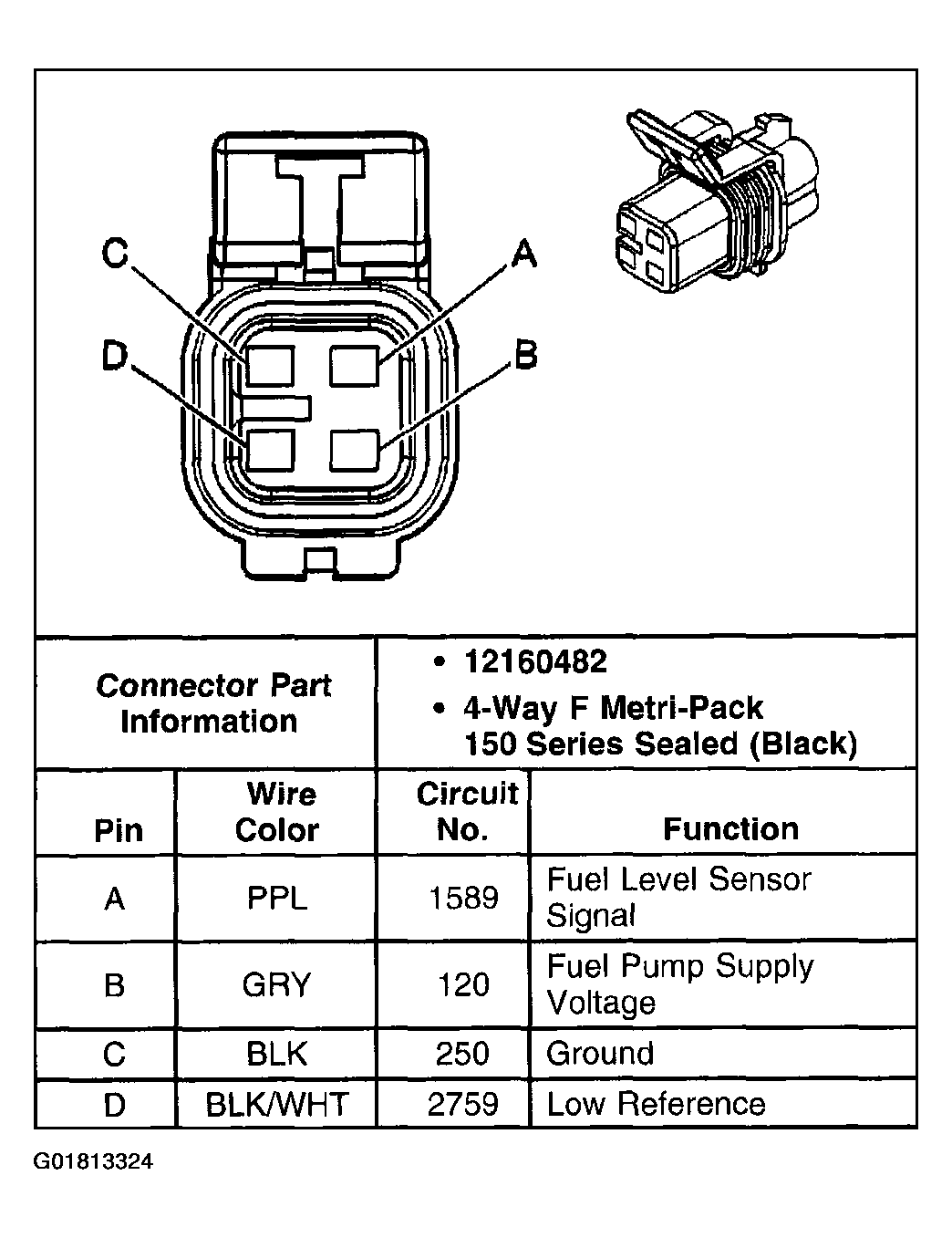

Fig 5: Fuel Pump Sender Unit C1

Courtesy of GENERAL MOTORS CORP.

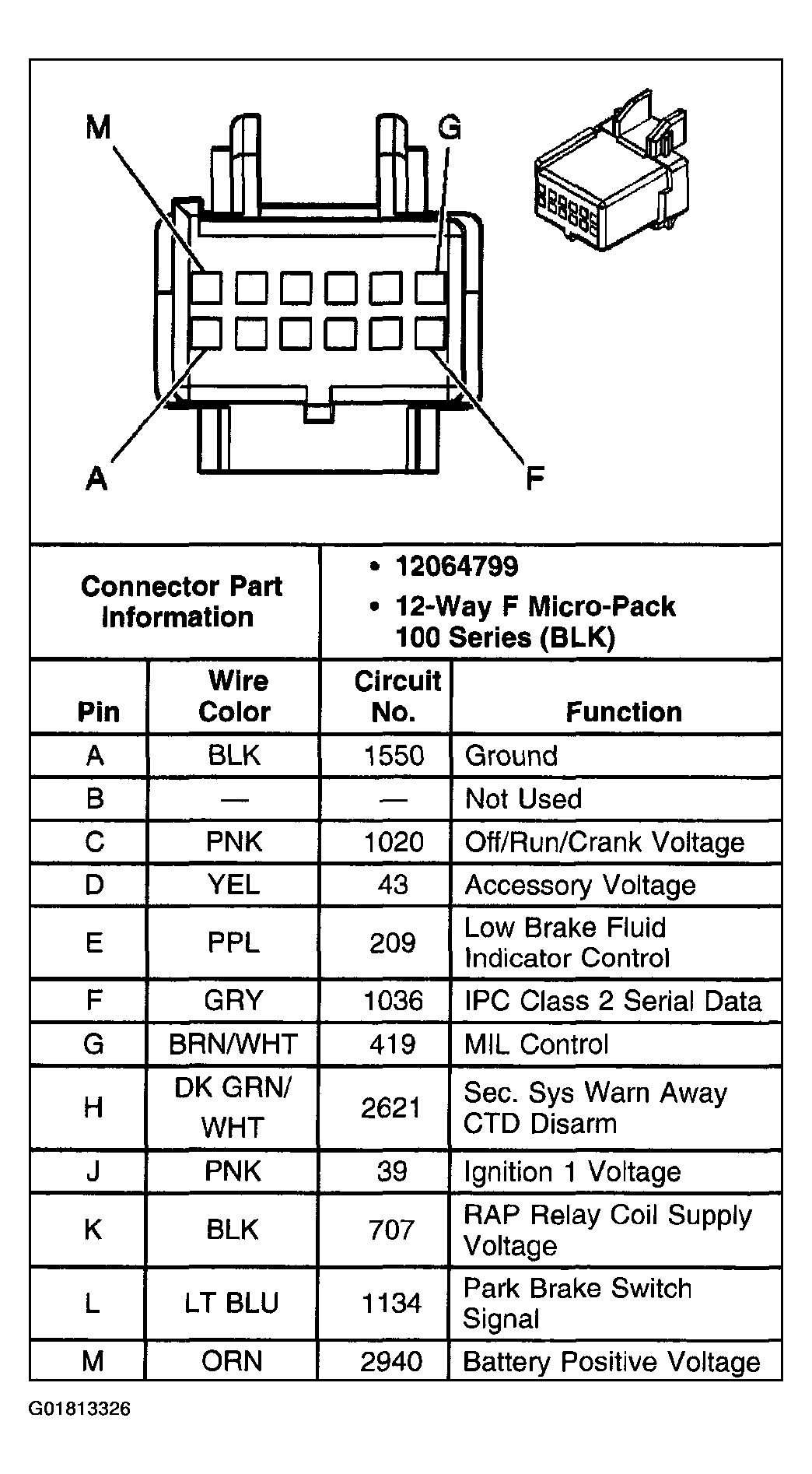

Fig 6: Instrument Panel Cluster (IPC) Connector C1

Courtesy of GENERAL MOTORS CORP.

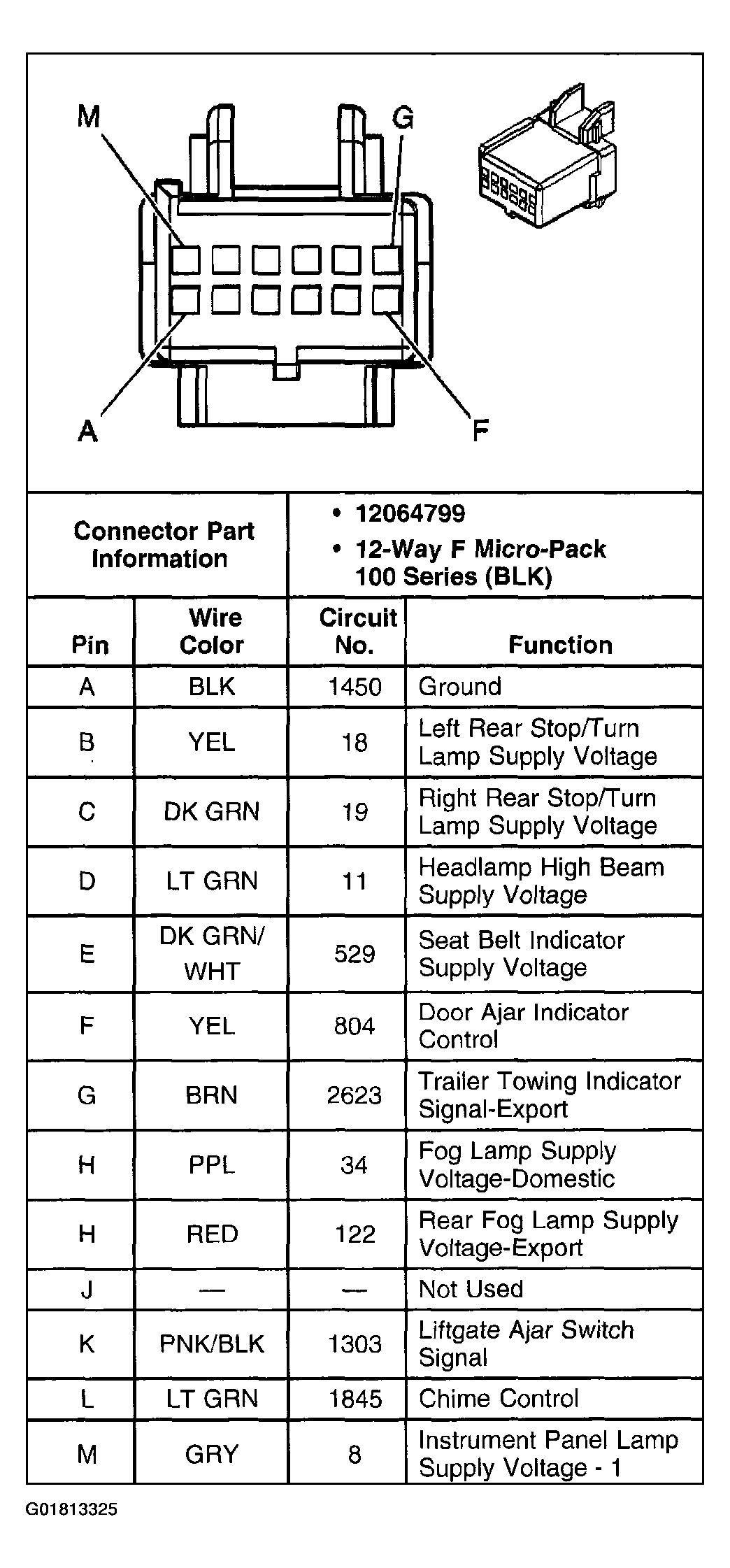

Fig 7: Instrument Panel Cluster (IPC) Connector C2

Courtesy of GENERAL MOTORS CORP.
