Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

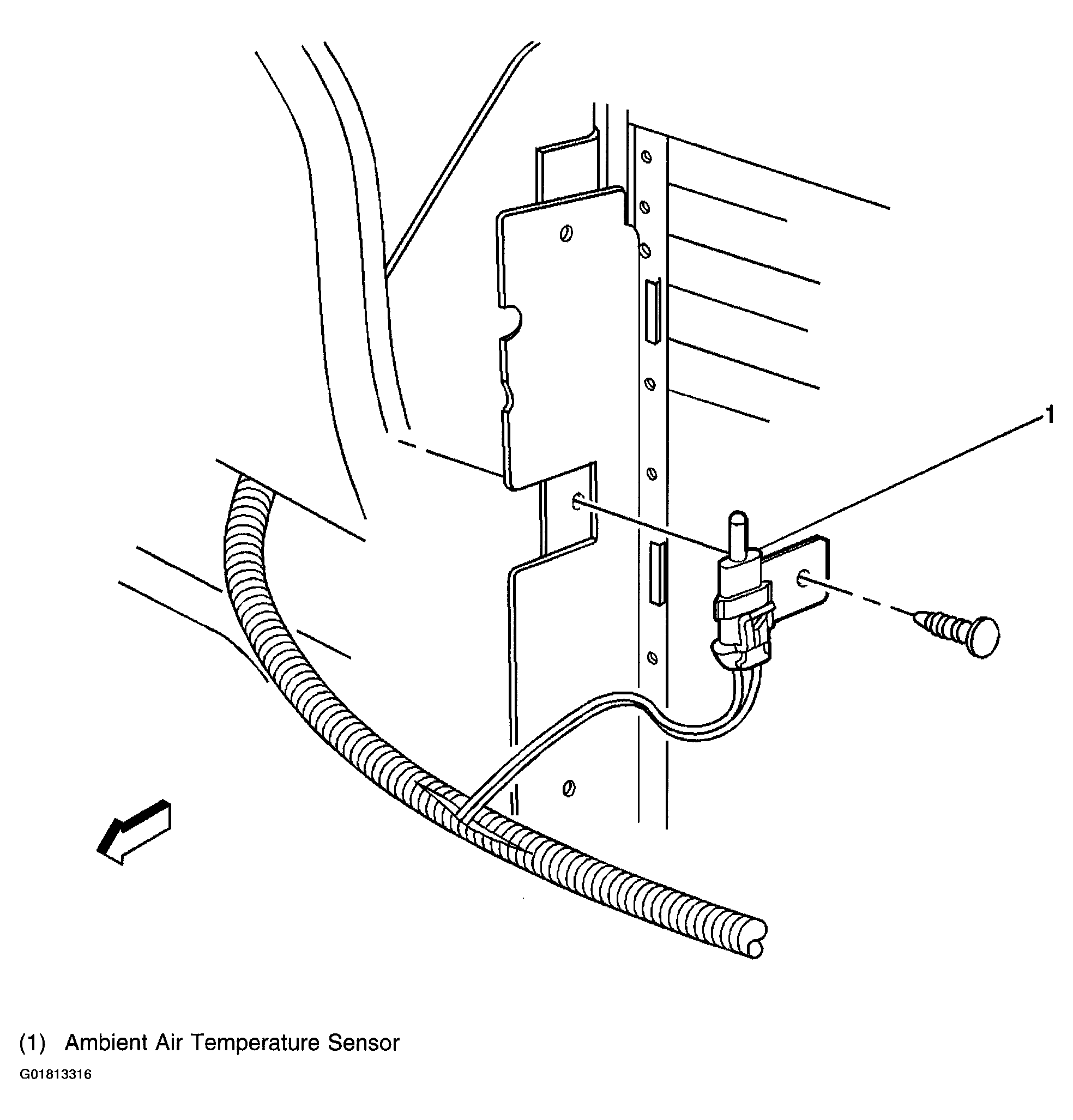

Fig 1: Radiator Support Front Of The Radiator

Courtesy of GENERAL MOTORS CORP.

Fig 2: LH Side Of IP, Above Steering Column

Courtesy of GENERAL MOTORS CORP.

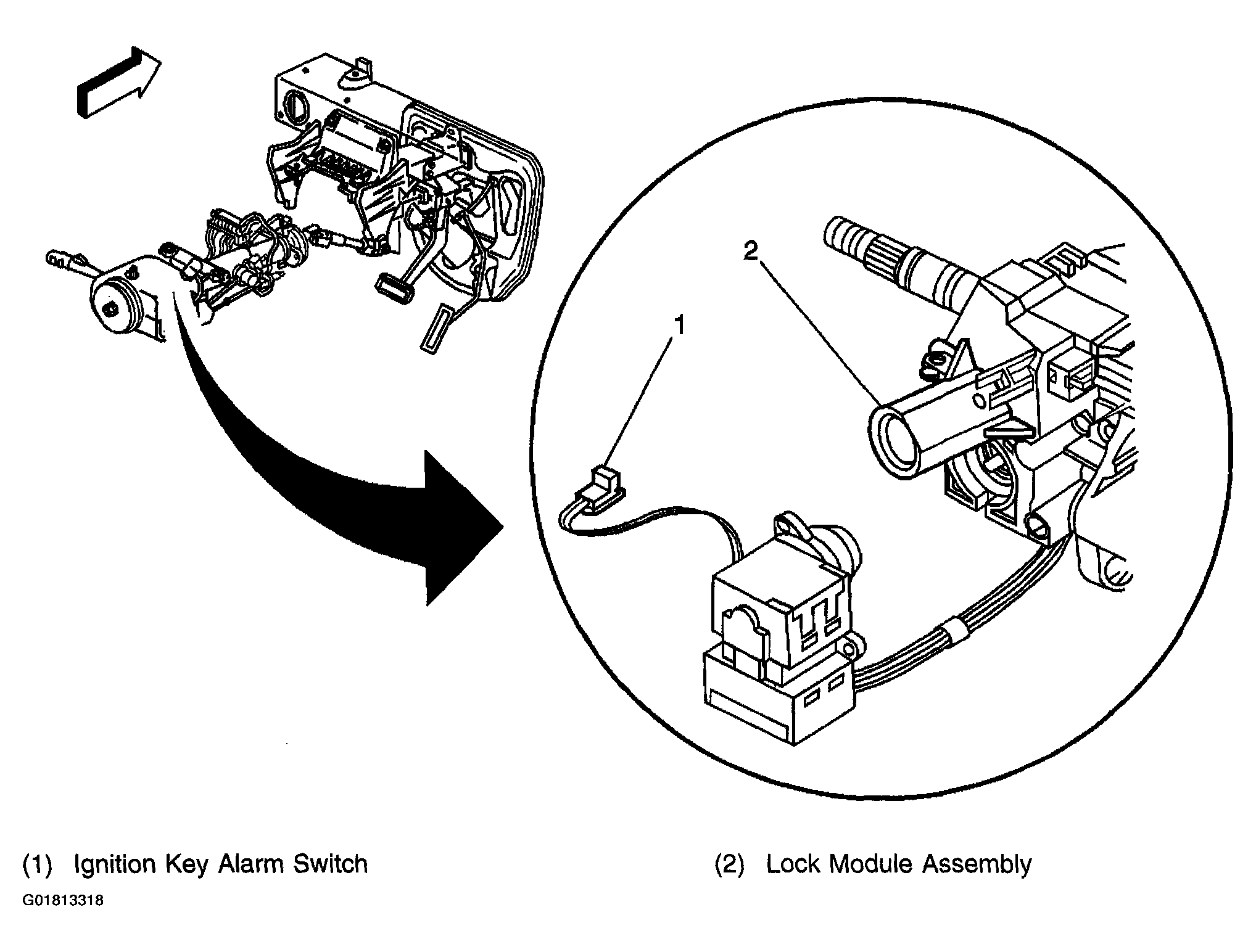

Fig 3: Steering Column

Courtesy of GENERAL MOTORS CORP.

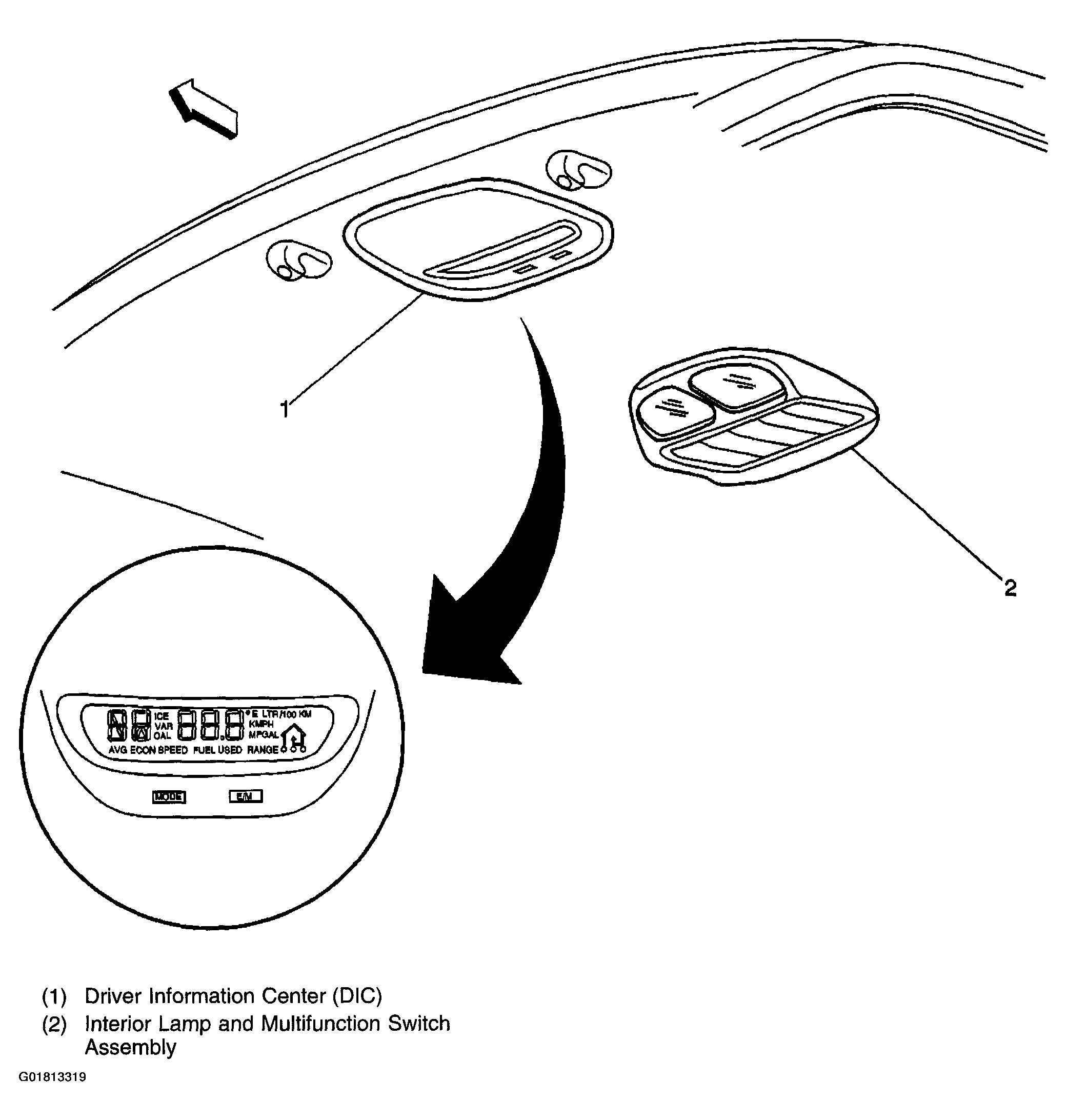

Fig 4: Overhead Console

Courtesy of GENERAL MOTORS CORP.
