Water Pump Removal

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump pulley bolts.
  2. Remove the water pump pulley.

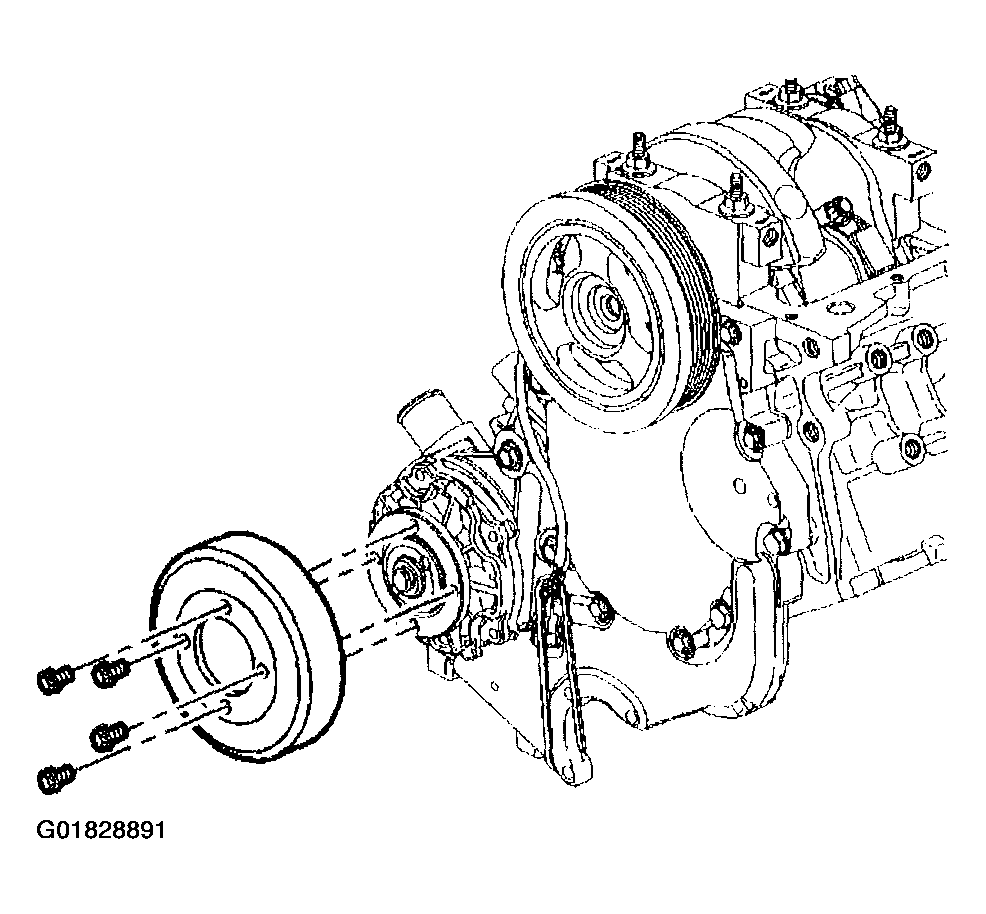

    Fig 1: Water Pump Pulley
    G01828891Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump bolts.
  4. Remove the water pump.
  5. Remove the water pump gasket.

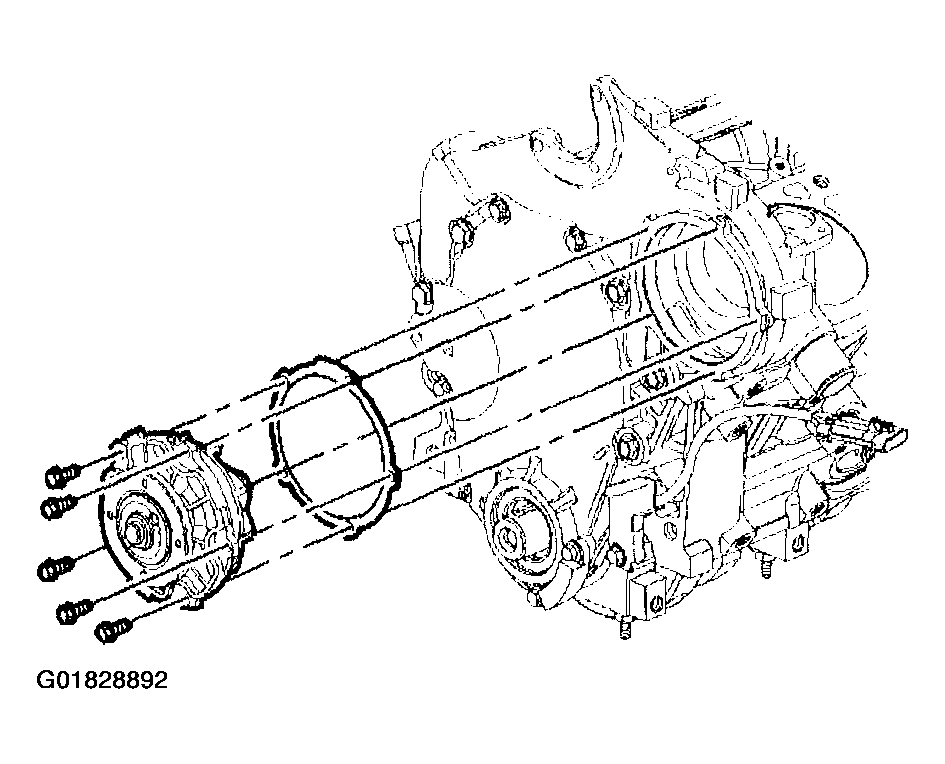

    Fig 2: Water Pump
    G01828892Courtesy of GENERAL MOTORS CORP.
