Water Pump Cleaning and Inspection

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

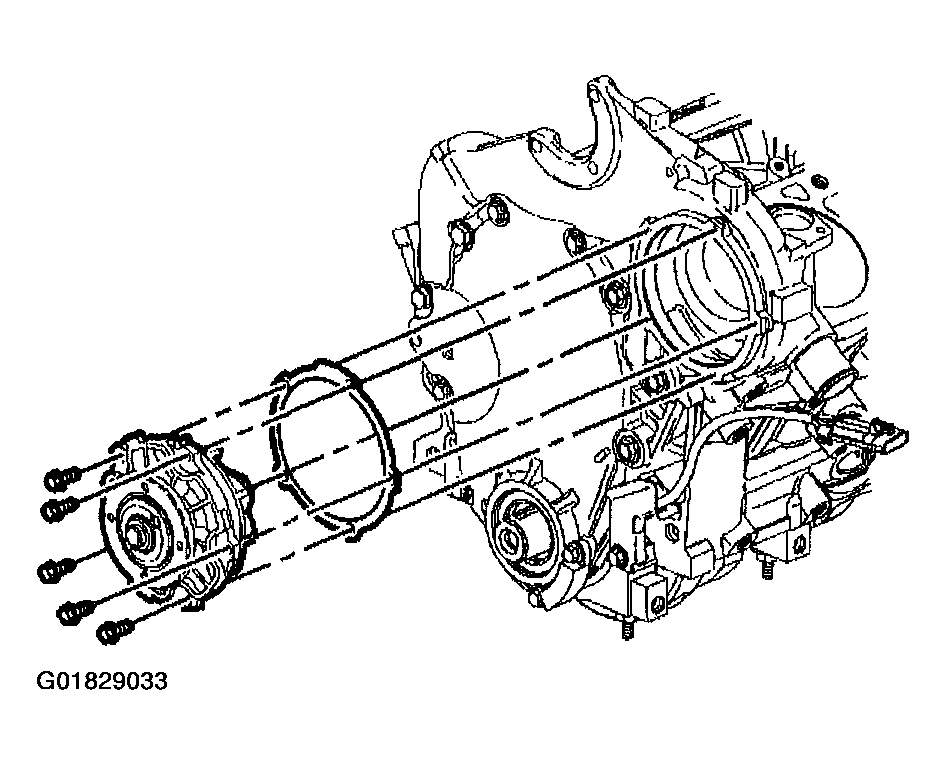

    Fig 1: Water Pump
    G01829033Courtesy of GENERAL MOTORS CORP.
  1. Remove all gasket material from the sealing surface.
  2. Inspect the water pump impeller for damage.
  3. Inspect the water pump shaft for looseness.
  4. Replace the water pump if necessary.
