Water Outlet Removal

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water outlet bolts.
  2. Remove the water outlet.

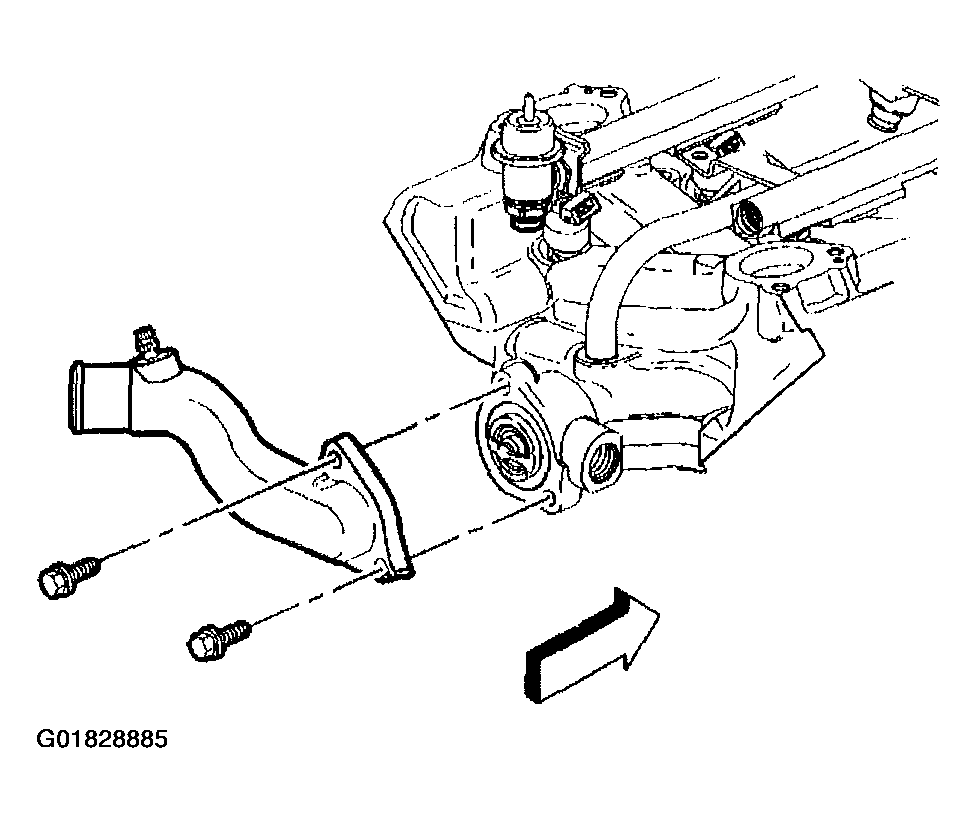

    Fig 1: Water Outlet
    G01828885Courtesy of GENERAL MOTORS CORP.
  3. Remove the thermostat.

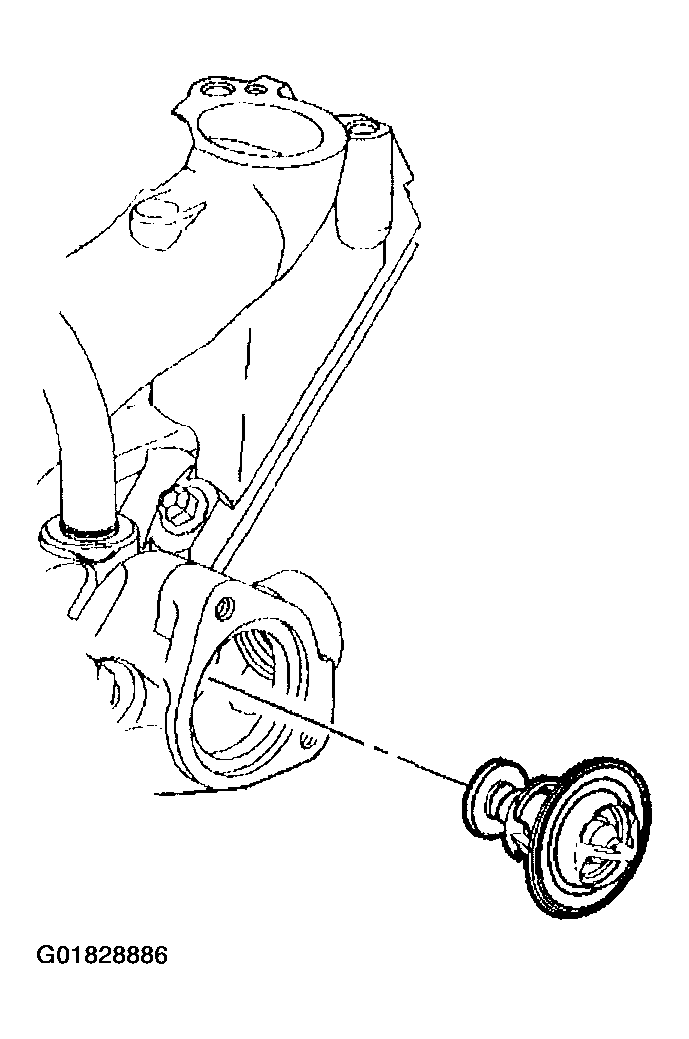

    Fig 2: Thermostat
    G01828886Courtesy of GENERAL MOTORS CORP.
