Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm bolts.

    Important  : Place the valve train components in a rack in order to ensure that the components are installed in the same location from which they were removed.

  2. Remove the valve rocker arms.

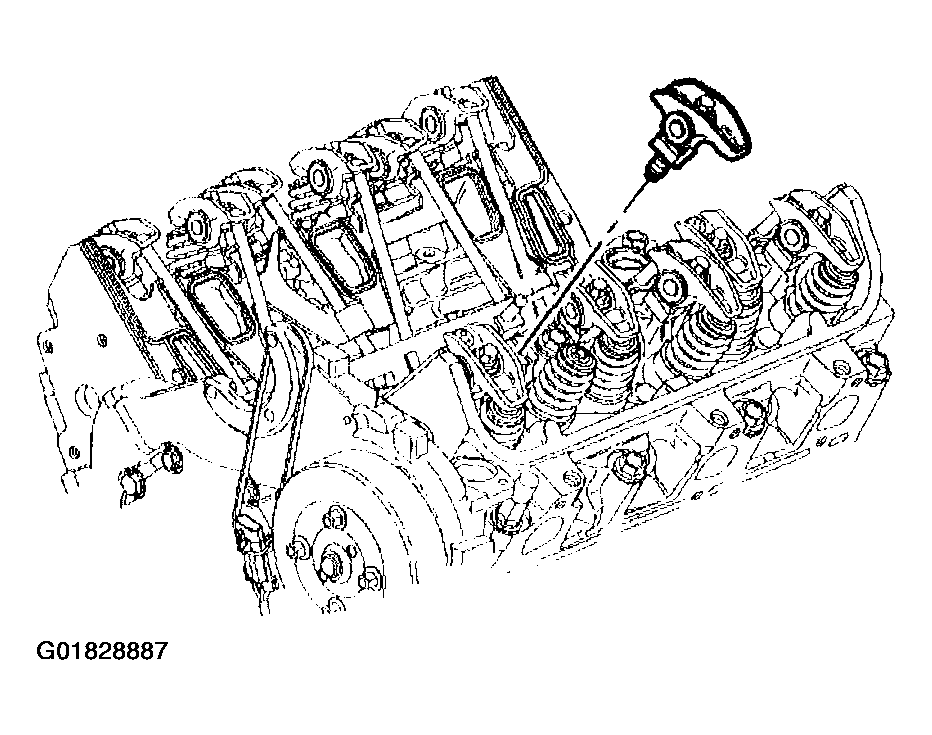

    Fig 1: Valve Rocker Arm
    G01828887Courtesy of GENERAL MOTORS CORP.
  3. Remove the push rods.
    • The intake push rods measure 146 mm (5.75 in).
    • The exhaust push rods measure 152.51 mm (6.0 in).

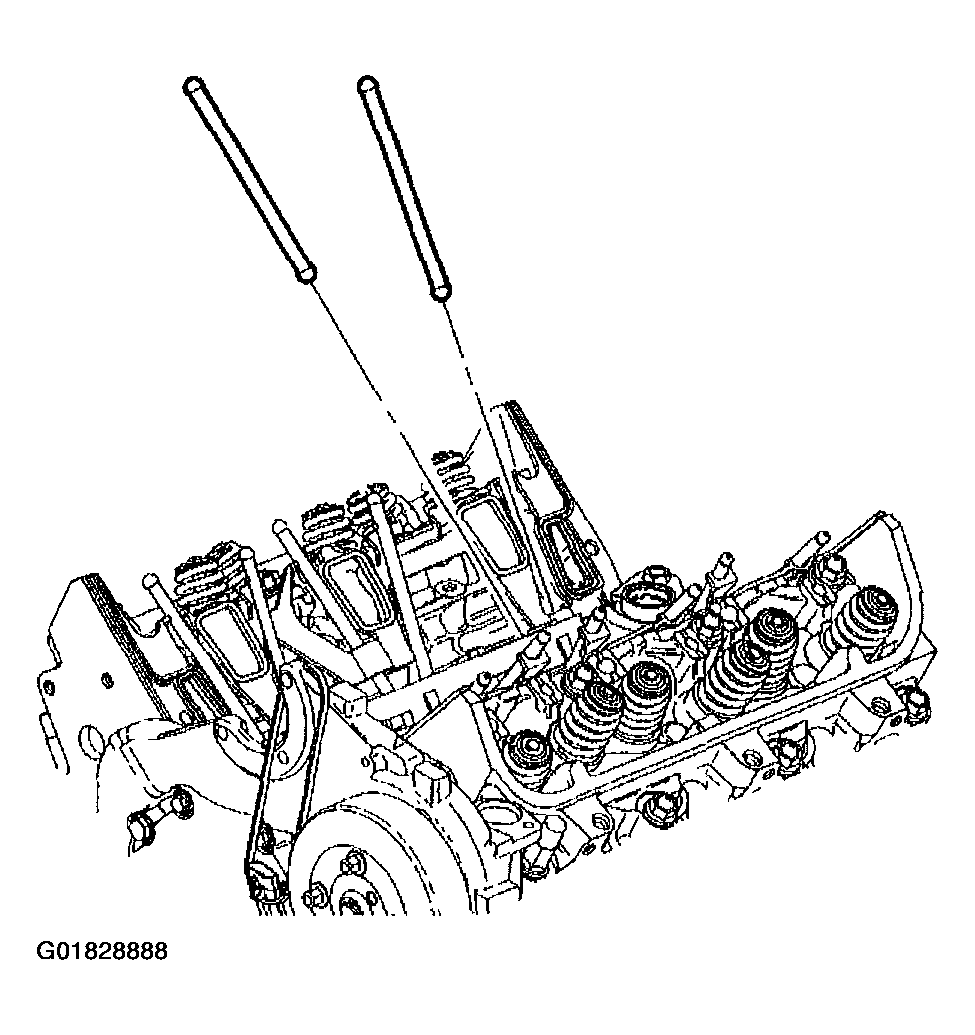

    Fig 2: Push Rods
    G01828888Courtesy of GENERAL MOTORS CORP.
  4. Remove the intake manifold gaskets.

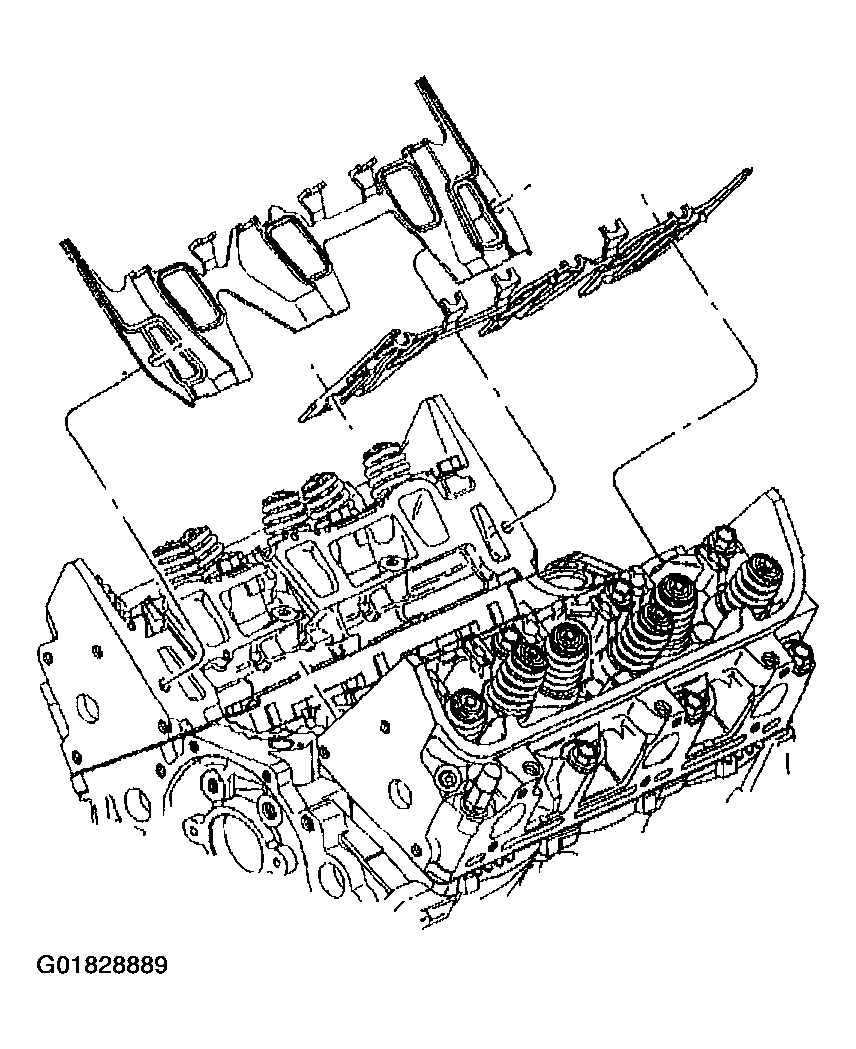

    Fig 3: Intake Manifold Gaskets
    G01828889Courtesy of GENERAL MOTORS CORP.
