Valve Rocker Arm Cover Removal - Right

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wires from plugs.
  2. Remove the electronic ignition control module nuts and bolts.
  3. Remove the electronic ignition control module.
  4. Remove the electronic ignition control module studs.

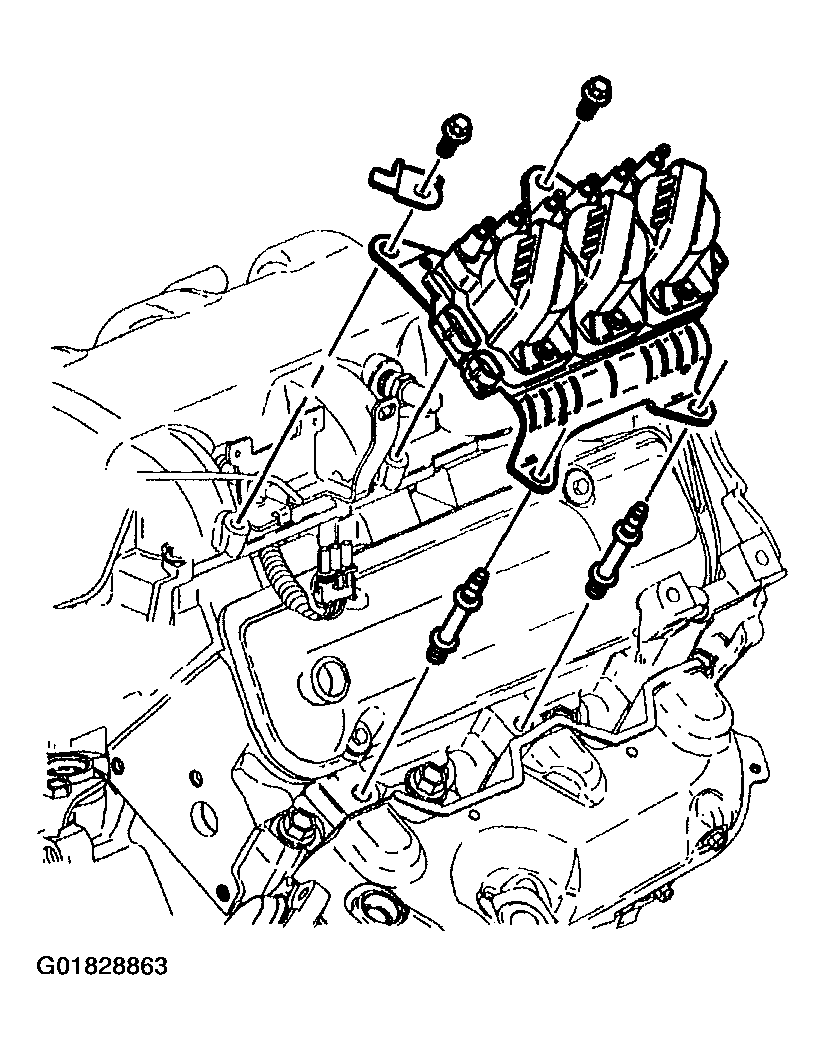

    Fig 1: Electronic Ignition Control Module
    G01828863Courtesy of GENERAL MOTORS CORP.
  5. Remove the valve rocker arm cover bolts.
  6. Remove the valve rocker arm cover and gasket.

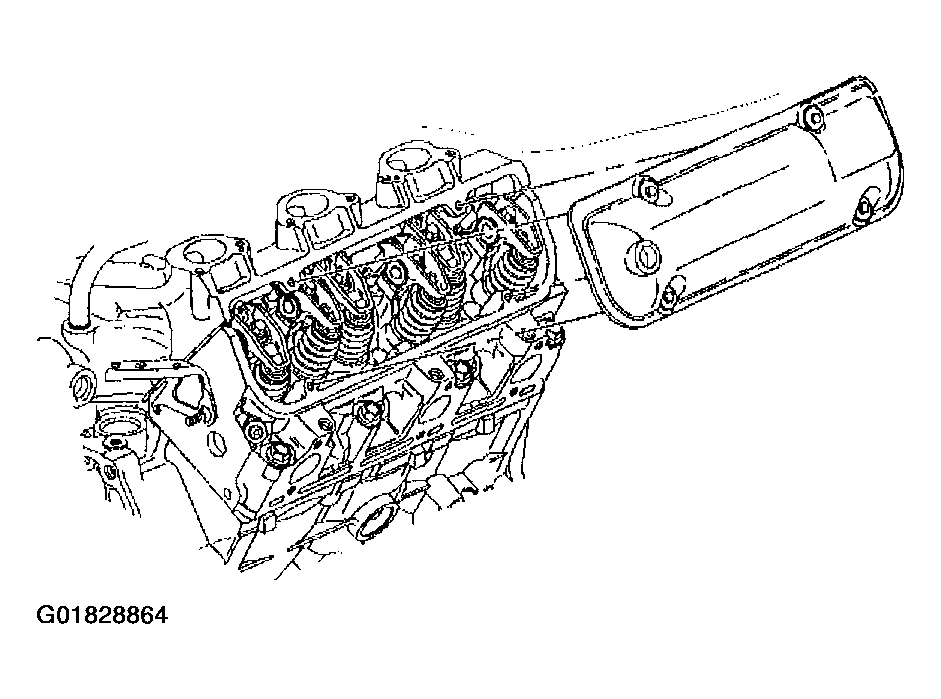

    Fig 2: Valve Rocker Arm Cover - Right
    G01828864Courtesy of GENERAL MOTORS CORP.
