Valve Rocker Arm Cover Removal - Left

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover and gasket.

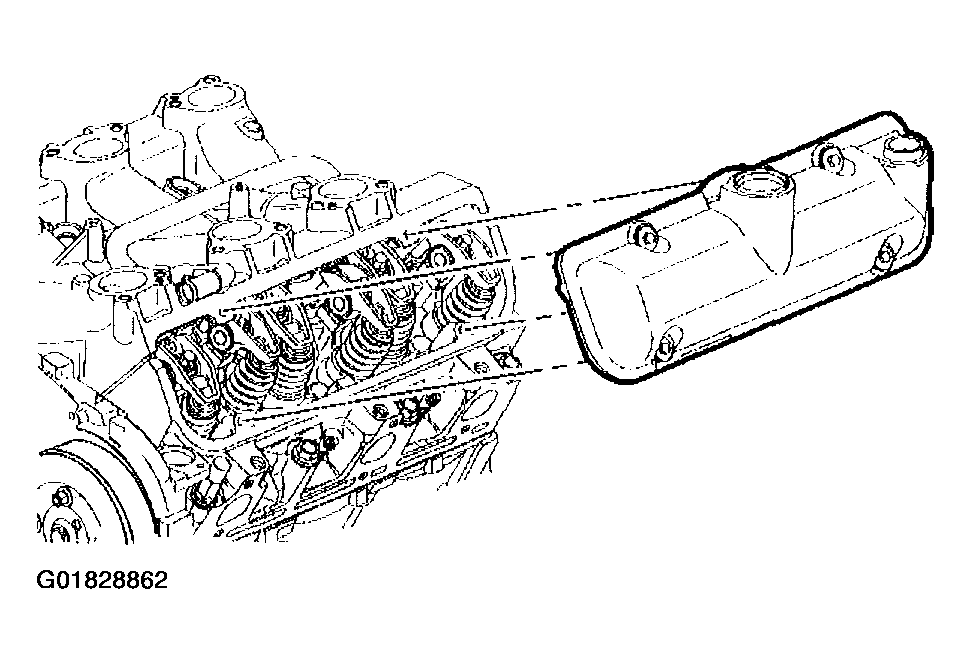

    Fig 1: Valve Rocker Arm Cover - Left
    G01828862Courtesy of GENERAL MOTORS CORP.
