Valve Rocker Arm Cover Installation - Right

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
  2. Apply sealer GM P/N United States 12345739, GM P/N Canada 10953541 or the equivalent to the notches where the cylinder head and intake manifold meet.

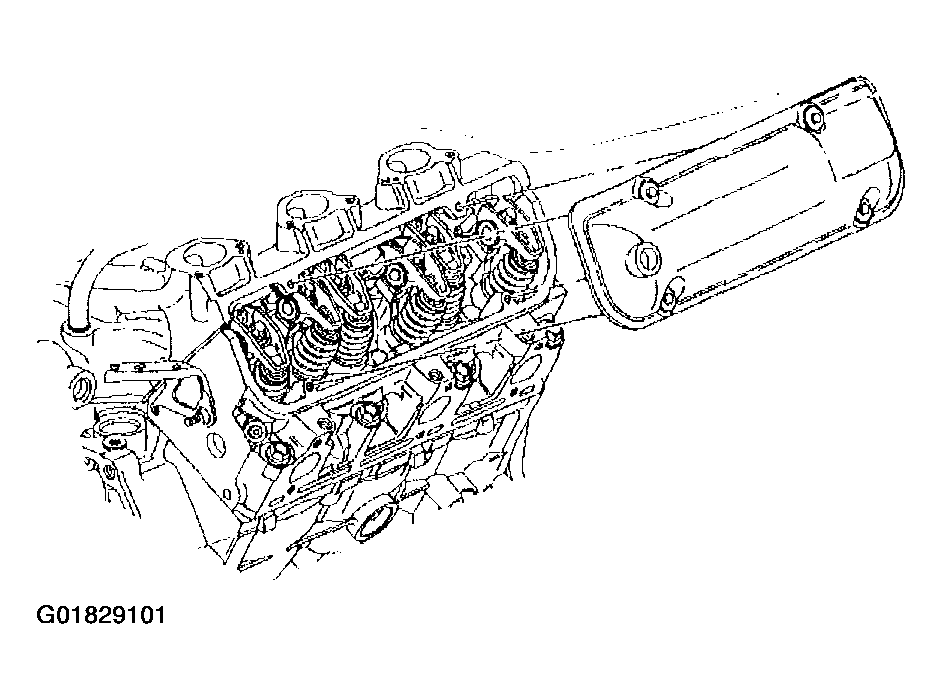

    3. Fig 1: Valve Rocker Arm Cover
    G01829101Courtesy of GENERAL MOTORS CORP.
  3. Install the valve rocker arm cover.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 10 N.m (89 lb in).

  5. Install the vacuum lines from the upper intake manifold.

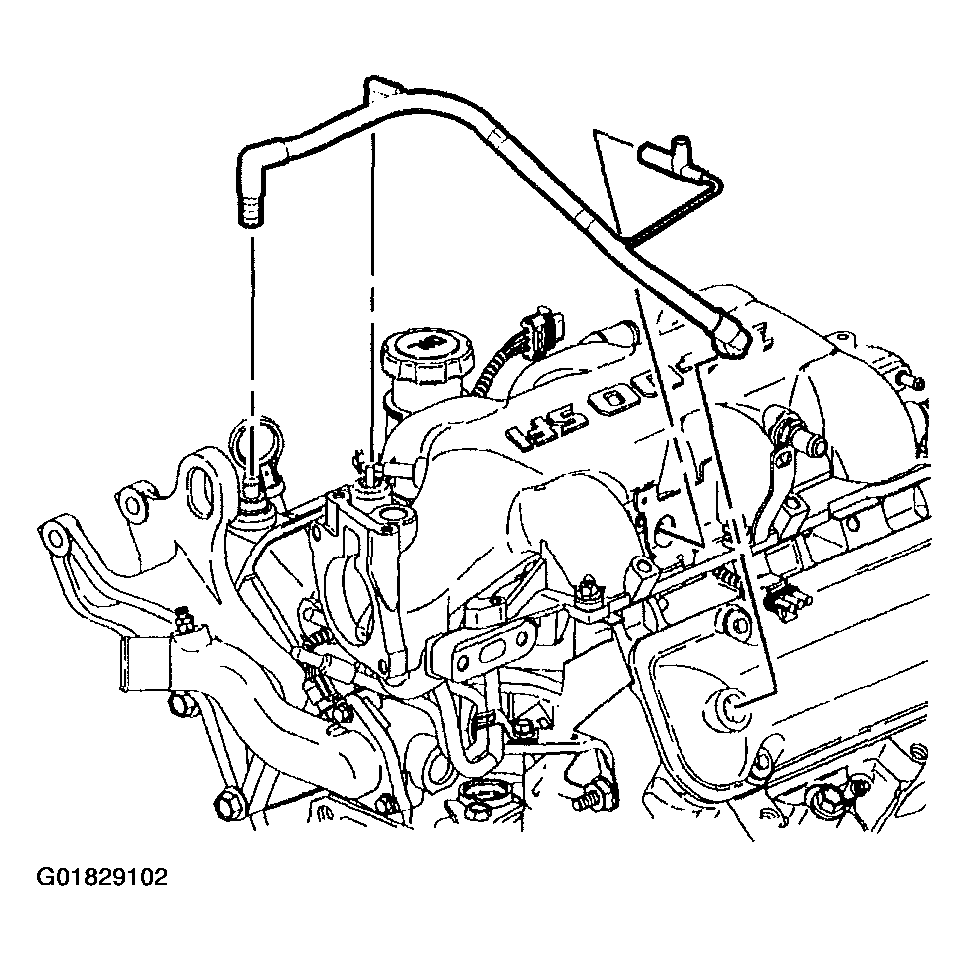

    Fig 2: Vacuum Lines
    G01829102Courtesy of GENERAL MOTORS CORP.
  6. Install the ignition coil studs.

    Tighten

    Tighten the ignition coil studs to 25 N.m (18 lb ft).

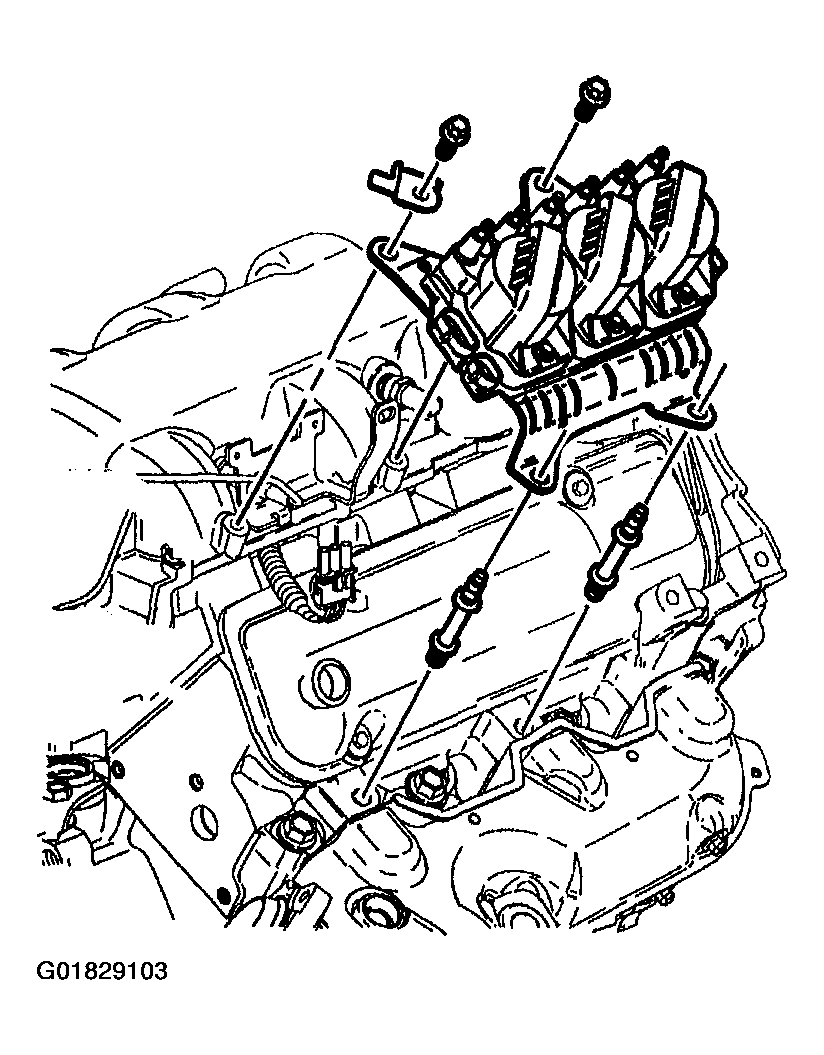

    7. Fig 3: Electronic Ignition Control Module
    G01829103Courtesy of GENERAL MOTORS CORP.
  7. Install the electronic ignition control module.
  8. Install the electronic ignition control module nuts and bolts.

    Tighten

    Tighten the electronic ignition control module nuts and bolts to 25 N.m (18 lb ft).
