Valve Rocker Arm Cover Installation - Left

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
  2. Apply sealer GM P/N United States 12345739, GM P/N Canada 10953541 or the equivalent to the notches where the cylinder head and intake manifold meet.

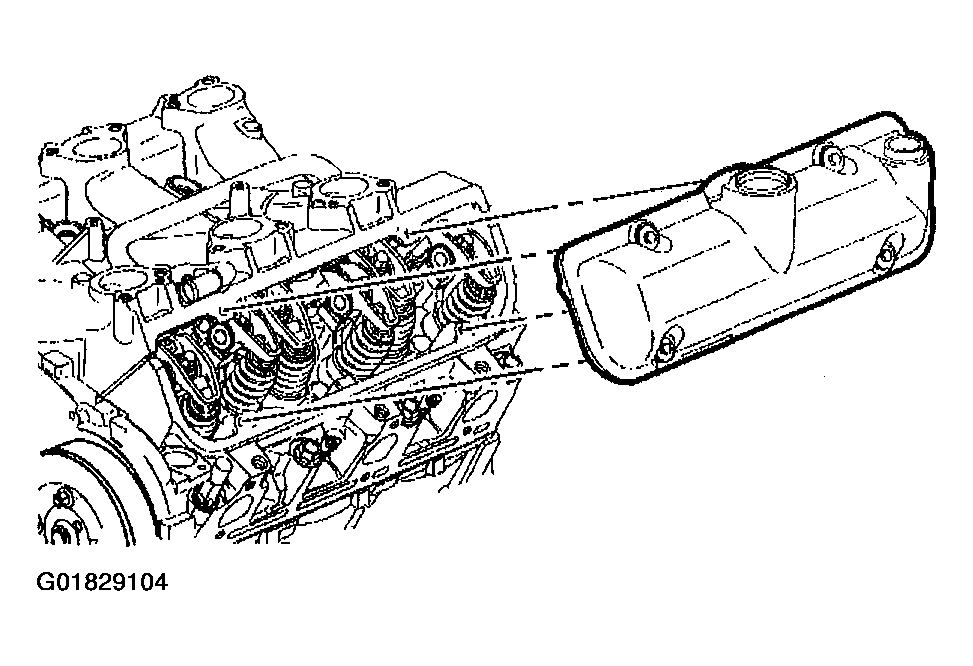

    3. Fig 1: Valve Rocker Arm Cover
    G01829104Courtesy of GENERAL MOTORS CORP.
  3. Install the valve rocker arm cover.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 10 N.m (89 lb in).
