Timing Chain and Sprockets Removal

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the camshaft sprocket bolt.
Remove the camshaft sprocket and timing chain.

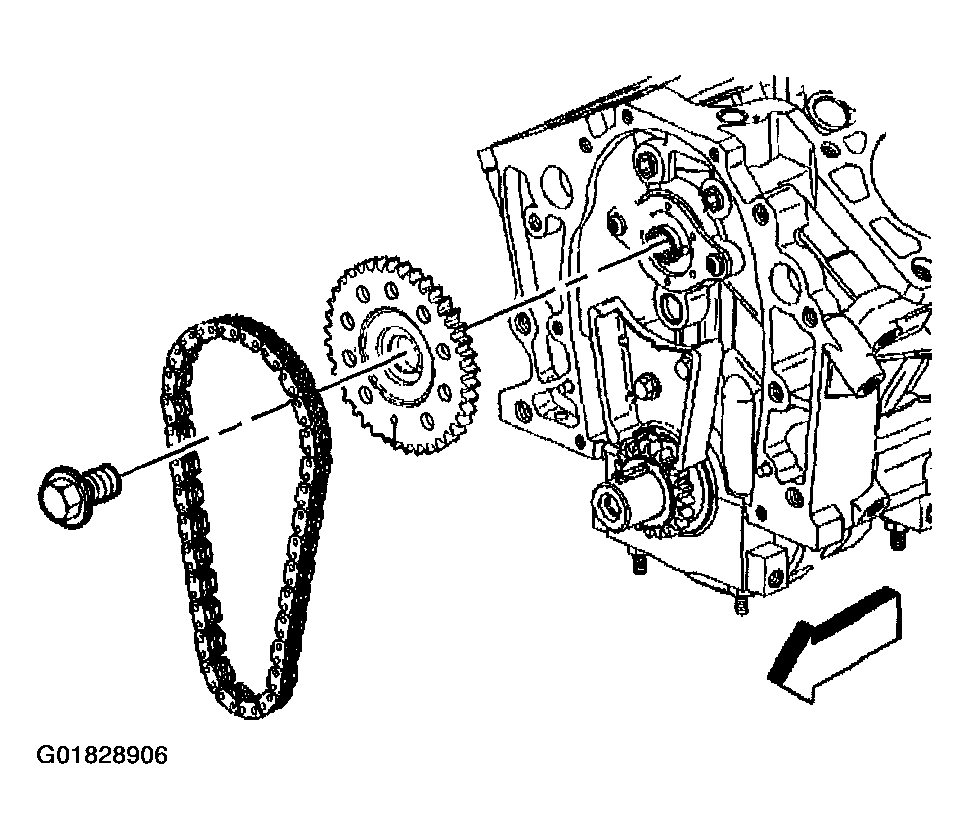

Fig 1: Camshaft Sprocket & Timing Chain
Courtesy of GENERAL MOTORS CORP.
Remove the crankshaft sprocket.

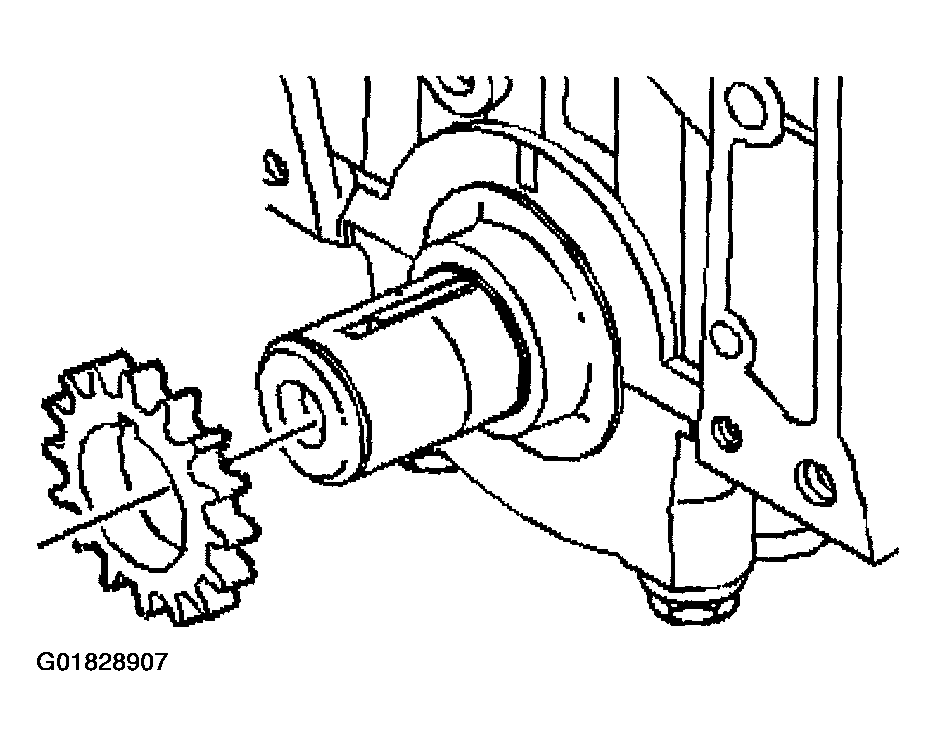

Fig 2: Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.
Remove the timing chain dampener bolts.
Remove the timing chain dampener.

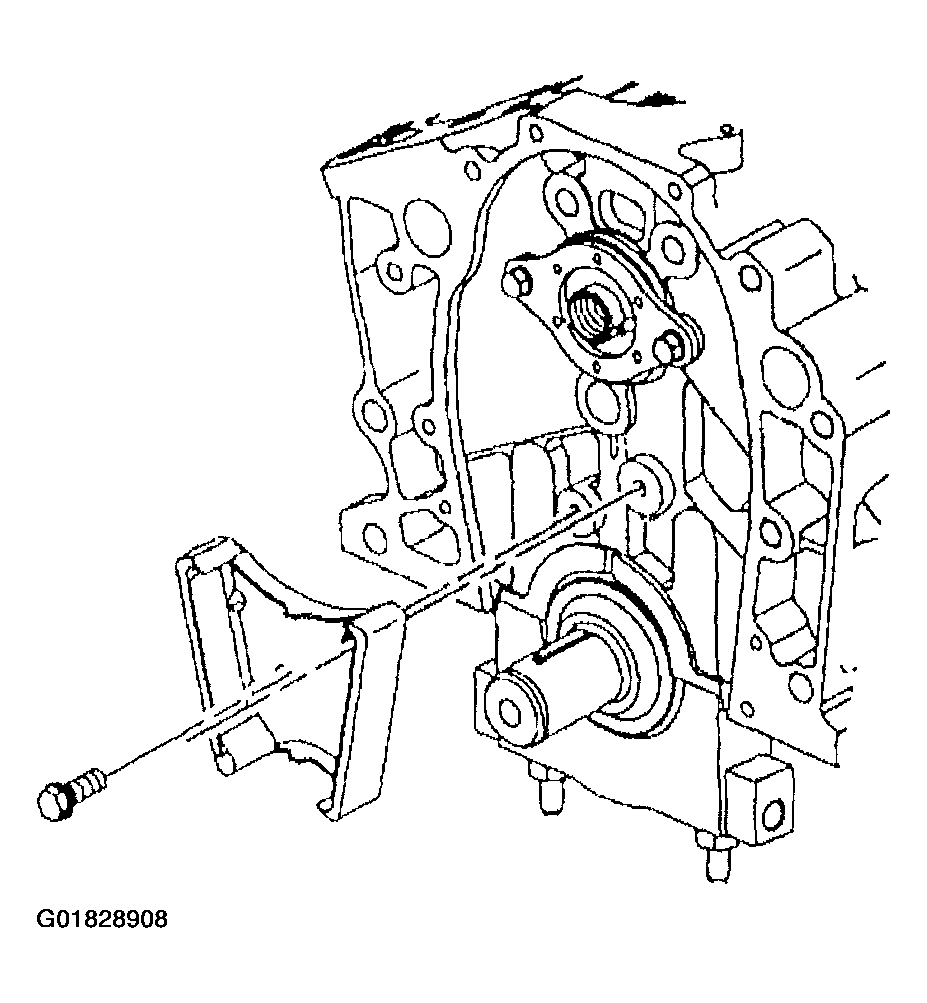

Fig 3: Timing Chain Dampener
Courtesy of GENERAL MOTORS CORP.
