Oil Pump Removal

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump bolt.
  2. Remove the oil pump and oil pump drive shaft.

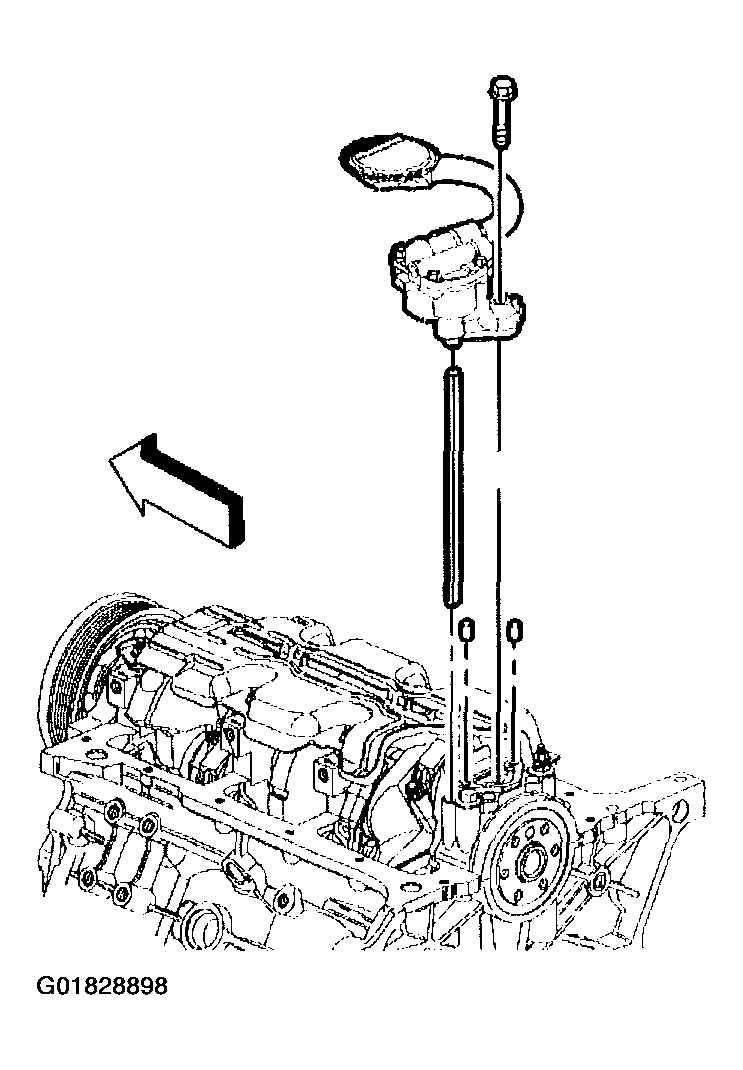

    Fig 1: Oil Pump & Oil Pump Drive Shaft
    G01828898Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft oil deflector nuts.
  4. Remove the crankshaft oil deflector.

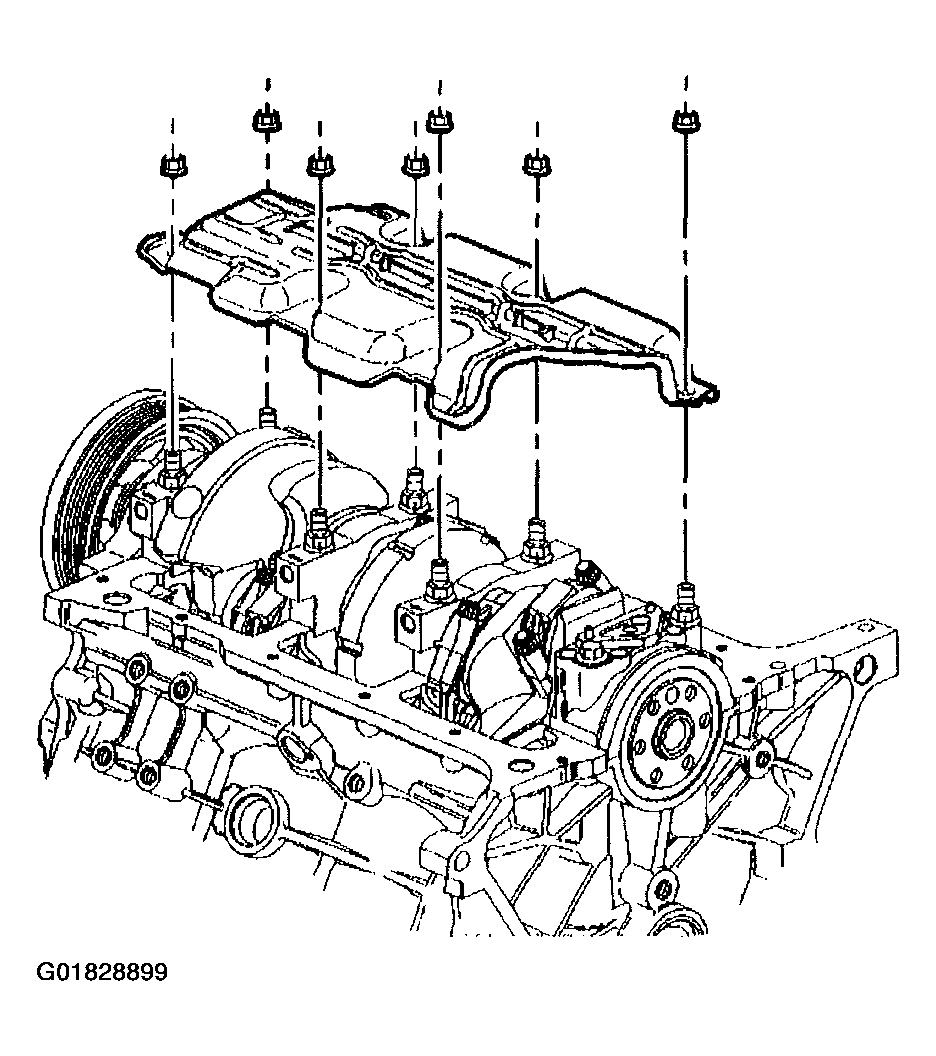

    Fig 2: Crankshaft Oil Deflector
    G01828899Courtesy of GENERAL MOTORS CORP.
