Oil Pump Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

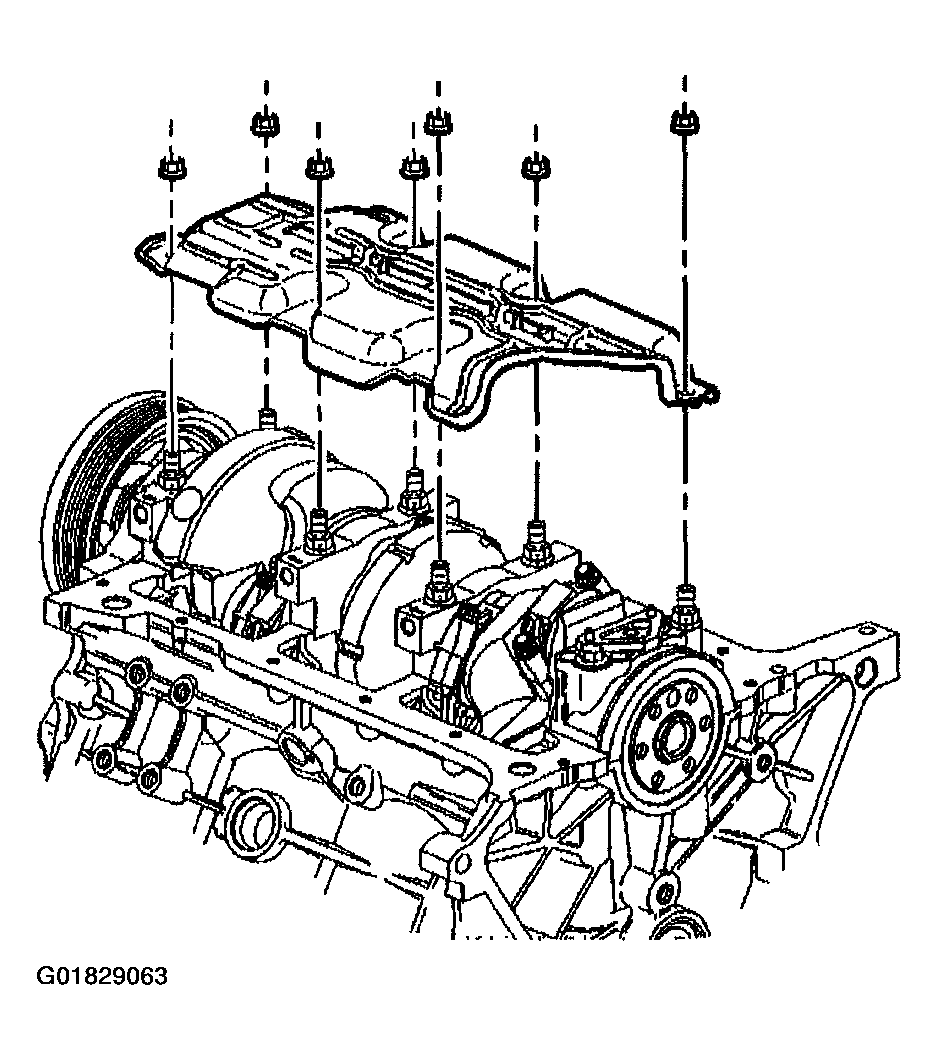

    Fig 1: Crankshaft Oil Deflector
    G01829063Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft oil deflector.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the crankshaft oil deflector nuts.

    Tighten

    Tighten the crankshaft oil deflector nuts to 25 N.m (18 lb ft).

    Important:  Do not reuse the oil pump driveshaft retainer. During assembly, install a NEW oil pump driveshaft retainer.

  3. Install the oil pump.
  4. Position the oil pump onto the pins.
  5. Install the oil pump bolt attaching the oil pump to the rear crankshaft bearing cap.

    Tighten

    Tighten the oil pump bolt to 41 N.m (30 lb ft).

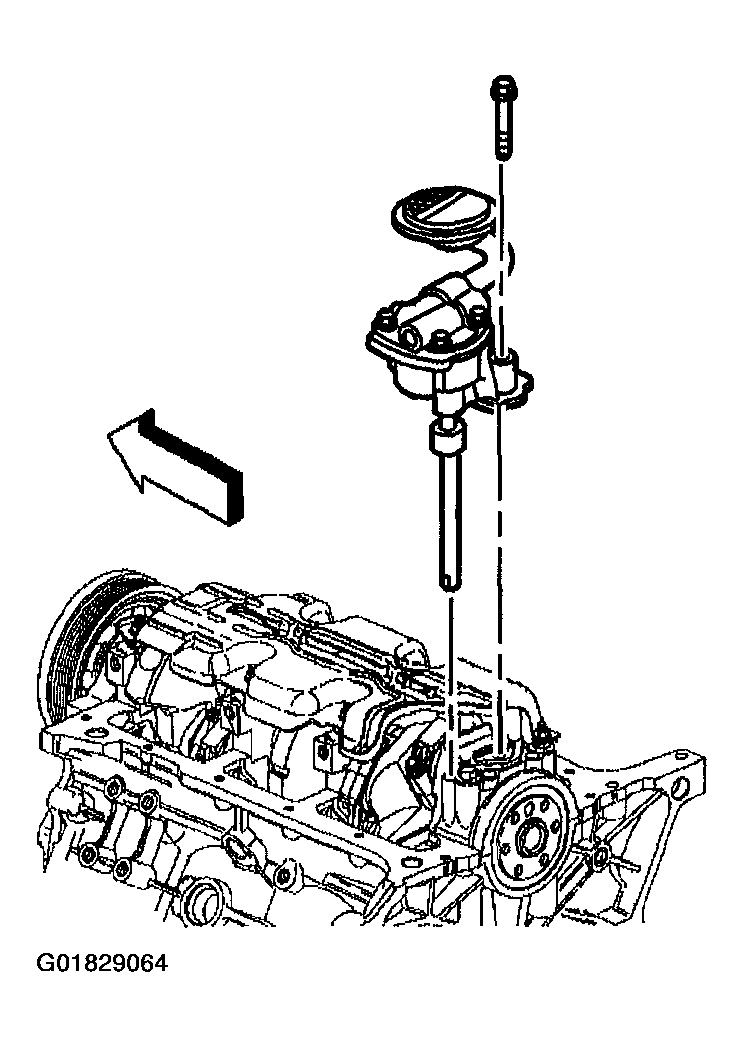

    Fig 2: Oil Pump
    G01829064Courtesy of GENERAL MOTORS CORP.
