Oil Pump Drive Removal

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump drive clamp bolt.
  2. Remove the oil pump drive clamp.
  3. Remove the oil pump drive.

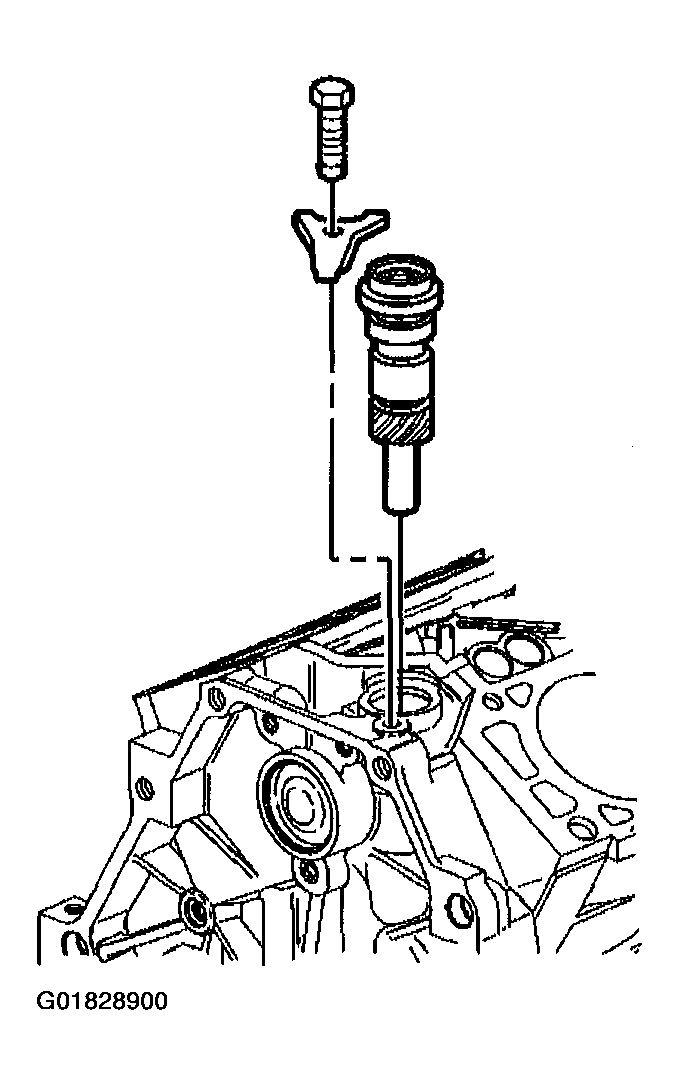

    Fig 1: Oil Pump Drive
    G01828900Courtesy of GENERAL MOTORS CORP.
