Oil Pump Drive Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

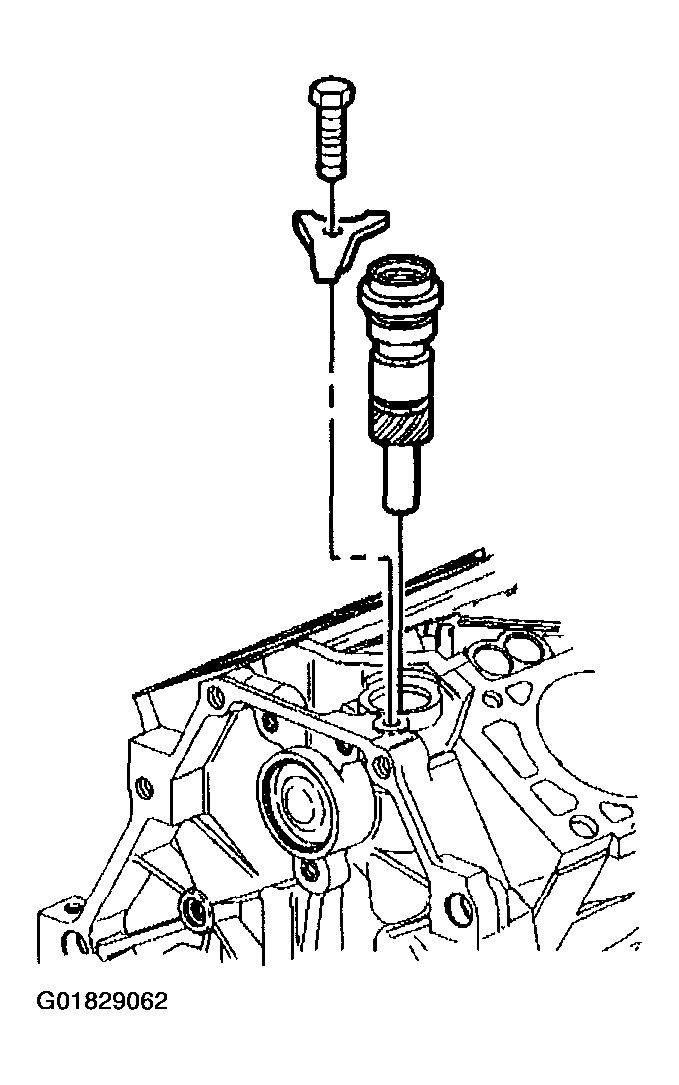

    Fig 1: Oil Pump Drive
    G01829062Courtesy of GENERAL MOTORS CORP.
  1. Apply prelube GM P/N United States 12345501, GM P/N Canada 992704 or the equivalent to the oil pump drive gear.
  2. Apply engine oil to the oil pump drive gear assembly for ease of assembly.
  3. Install the oil pump drive gear assembly.
  4. Install the oil pump drive gear clamp.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the oil pump drive gear clamp bolt.

    Tighten

    Tighten the oil pump drive gear clamp bolt to 36 N.m (27 lb ft).
