Oil Pump Assemble

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 21882 Oil Suction Pipe Installer

Lubricate all the internal oil pump parts using engine oil during assembly.
Install the oil pump gears.

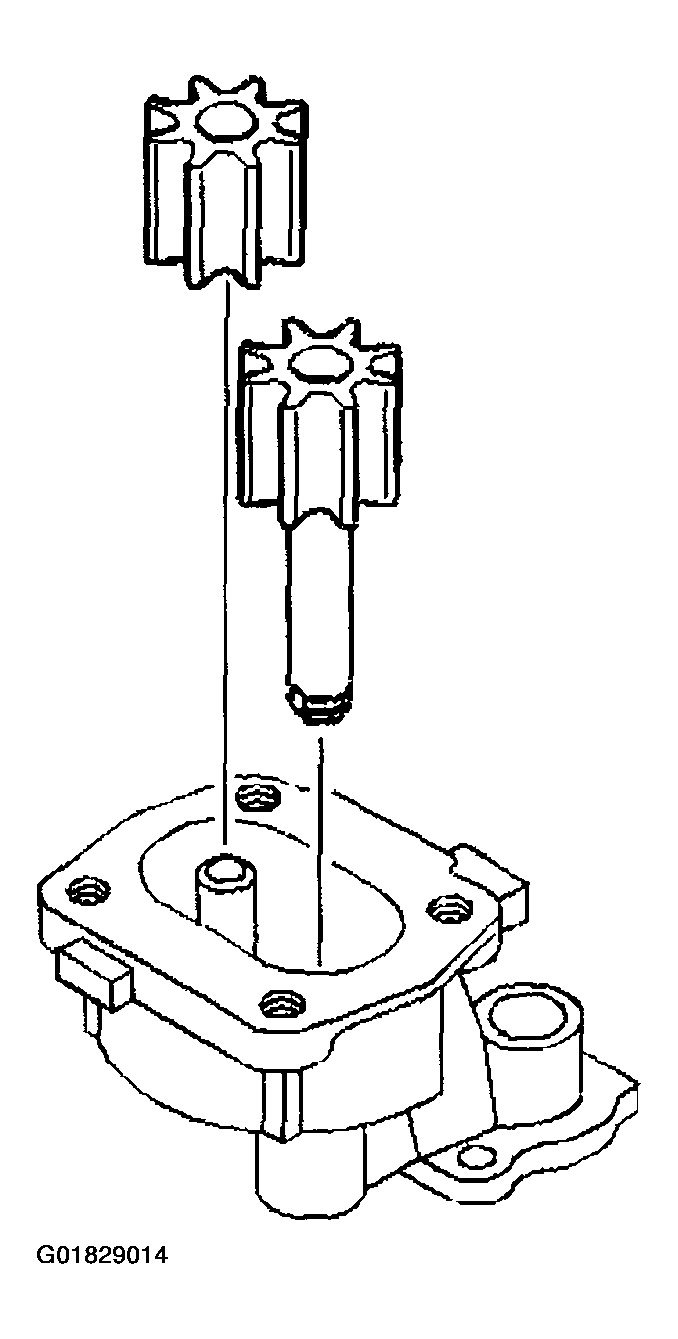

Fig 1: Oil Pump Gears
Courtesy of GENERAL MOTORS CORP.

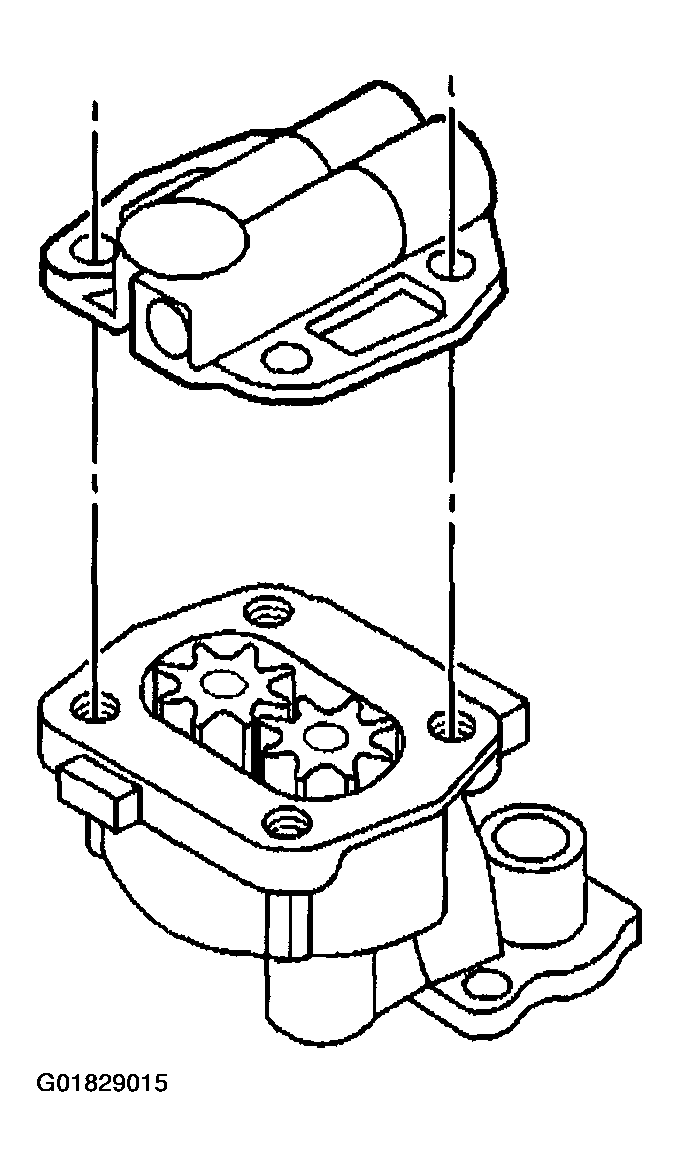

Fig 2: Oil Pump Cover

Courtesy of GENERAL MOTORS CORP.

Install the oil pump cover.
NOTE: Refer to FASTENER NOTICE .
Install the oil pump cover bolts.
Tighten

Tighten the oil pump cover bolts to 10 N.m (89 lb in).

Fig 3: Pressure Regulator Valve Assembly

Courtesy of GENERAL MOTORS CORP.

Install the pressure regulator valve.
Install the pressure regulator spring.
Install the cotter pin.
Important : Make sure the cotter pin is properly secured.
Apply sealer GM P/N United States 12346004, GM P/N Canada 10953480 or the equivalent to the new suction pipe.
Tap the new suction pipe into place using a plastic hammer. Use the J 21882 .
