Oil Pan Cleaning and Inspection

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

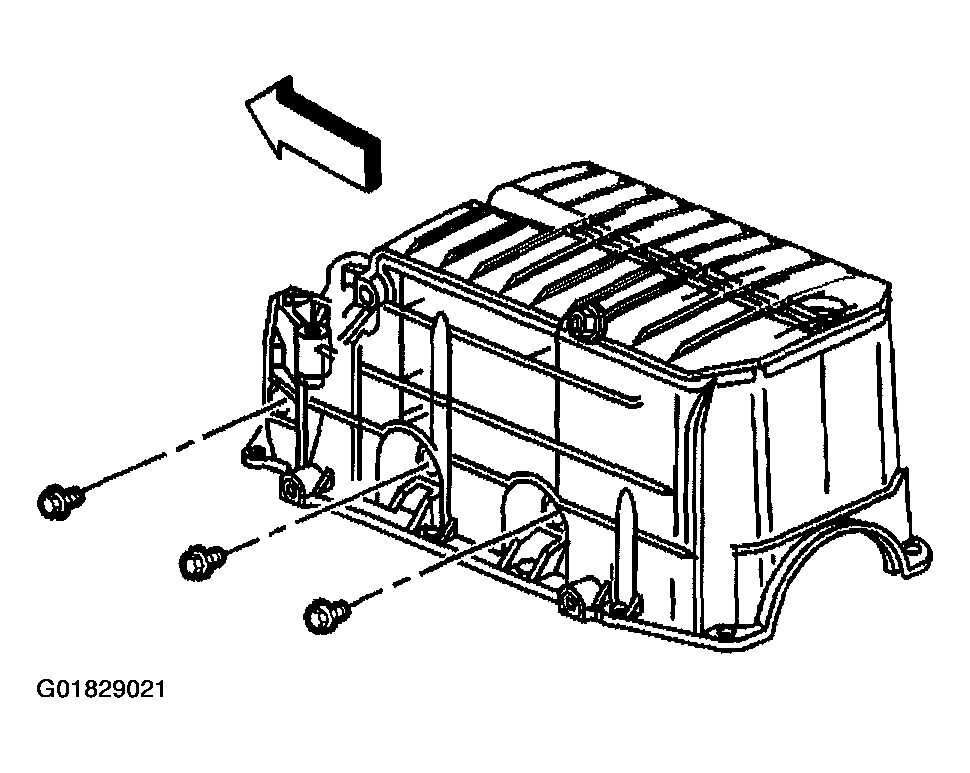

    Fig 1: Oil Pan
    G01829021Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil level sensor bolt.
  2. Remove the oil level sensor.
    CAUTION: Bodily injury may occur if the cleaning solvent is inhaled or exposed to the skin.
  3. Clean the oil pan in solvent. Remove all sludge and debris from the bottom of the oil pan.
  4. Inspect the oil pan sealing surfaces for damage. Replace the oil pan if necessary.
  5. Install the oil level sensor.
    NOTE: Refer to FASTENER NOTICE .
  6. Install the oil level sensor bolt.

    Tighten

    Tighten the oil level sensor bolt to 10 N.m (89 lb in).
