Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the thermostat bypass pipe to throttle body nut (2).
  2. Remove the thermostat bypass pipe to throttle body hose clamps (1).
  3. Remove the thermostat bypass pipe to engine front cover bolt (4).
  4. Remove the thermostat bypass pipe hose clamps (5).

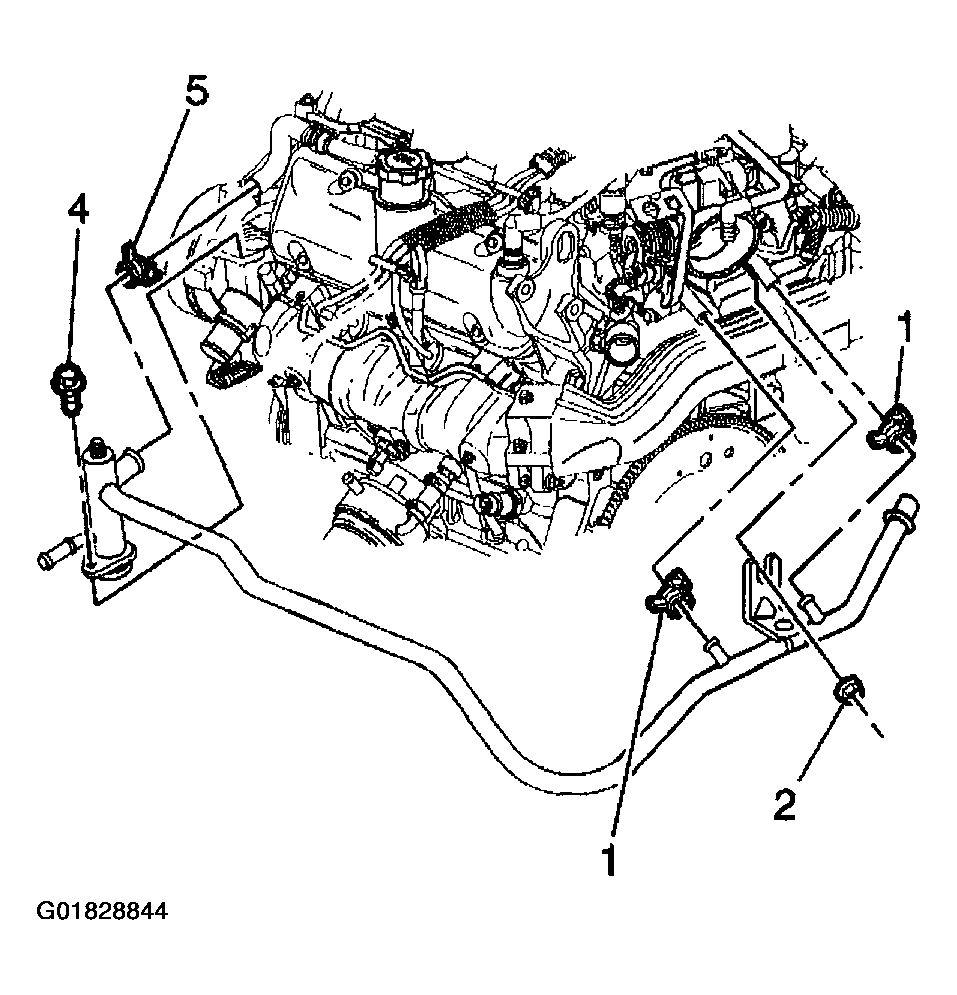

    Fig 1: Thermostat Bypass Pipe Components
    G01828844Courtesy of GENERAL MOTORS CORP.
  5. Remove the thermostat bypass pipe hose.
  6. Remove the thermostat bypass pipe.

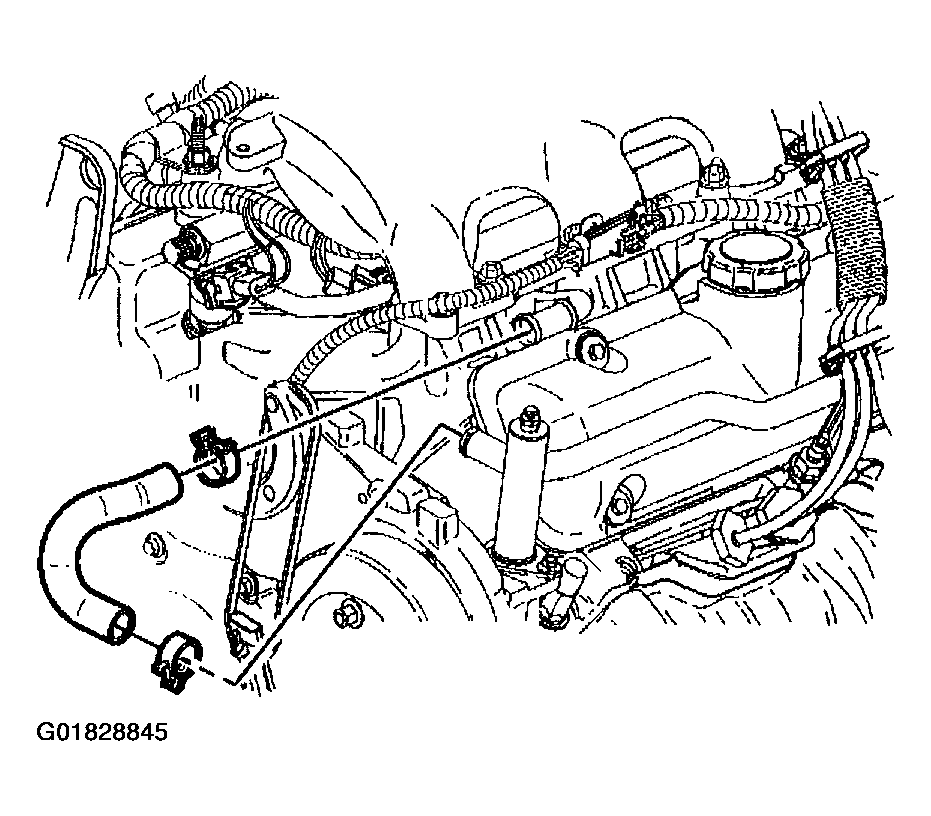

    Fig 2: Thermostat Bypass Pipe
    G01828845Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil level indicator tube bolt.
  8. Remove the oil level indicator and oil level indicator tube.

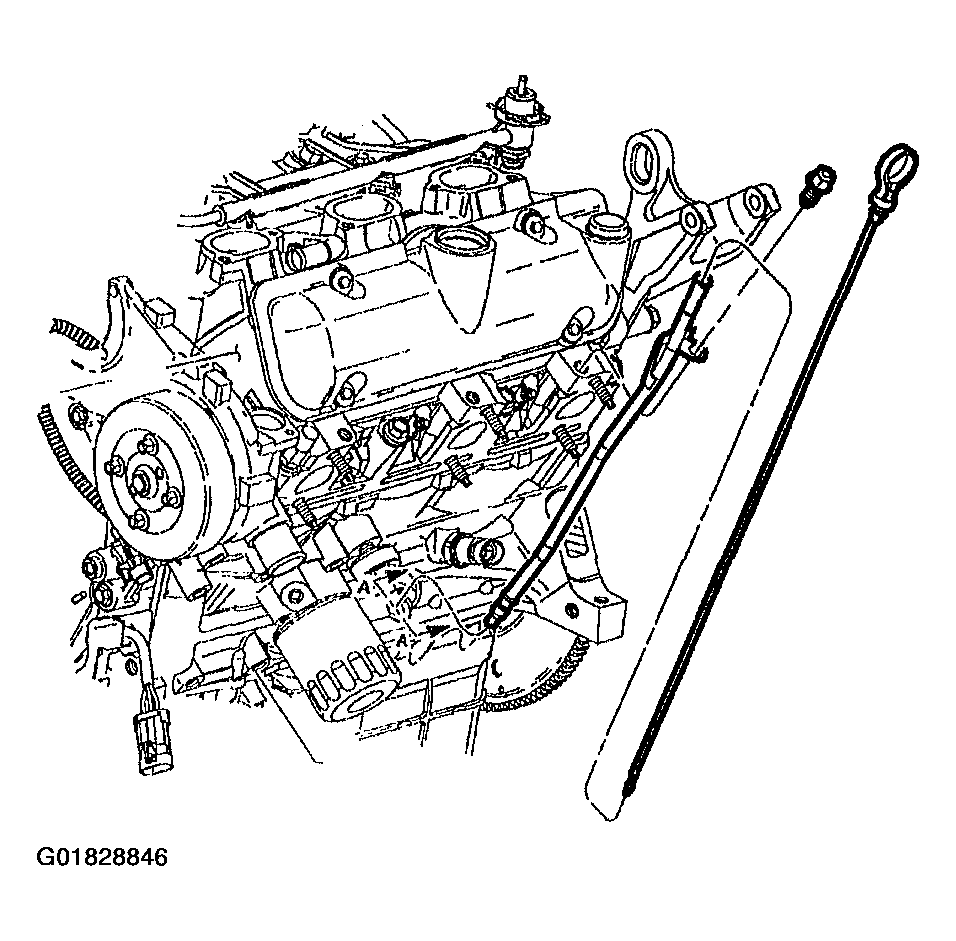

    Fig 3: Oil Level Indicator & Tube
    G01828846Courtesy of GENERAL MOTORS CORP.
