Oil Cooler Removal (U Van, B Van)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the upper oil cooler outlet hose from the thermostat bypass pipe.
  2. Disconnect the lower oil cooler outlet hose from the oil cooler.
  3. Remove the oil cooler outlet hoses and pipe.

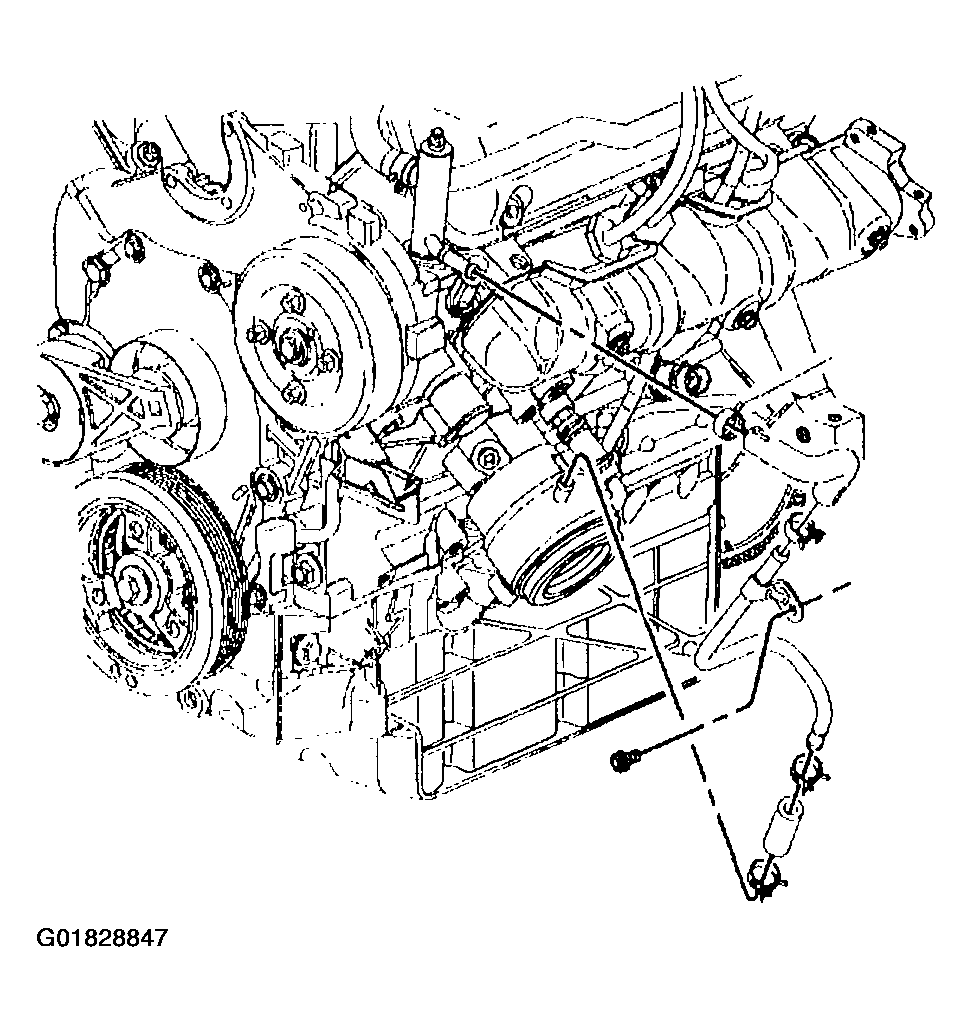

    Fig 1: Oil Cooler Outlet Hoses & Pipe
    G01828847Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil cooler connector.

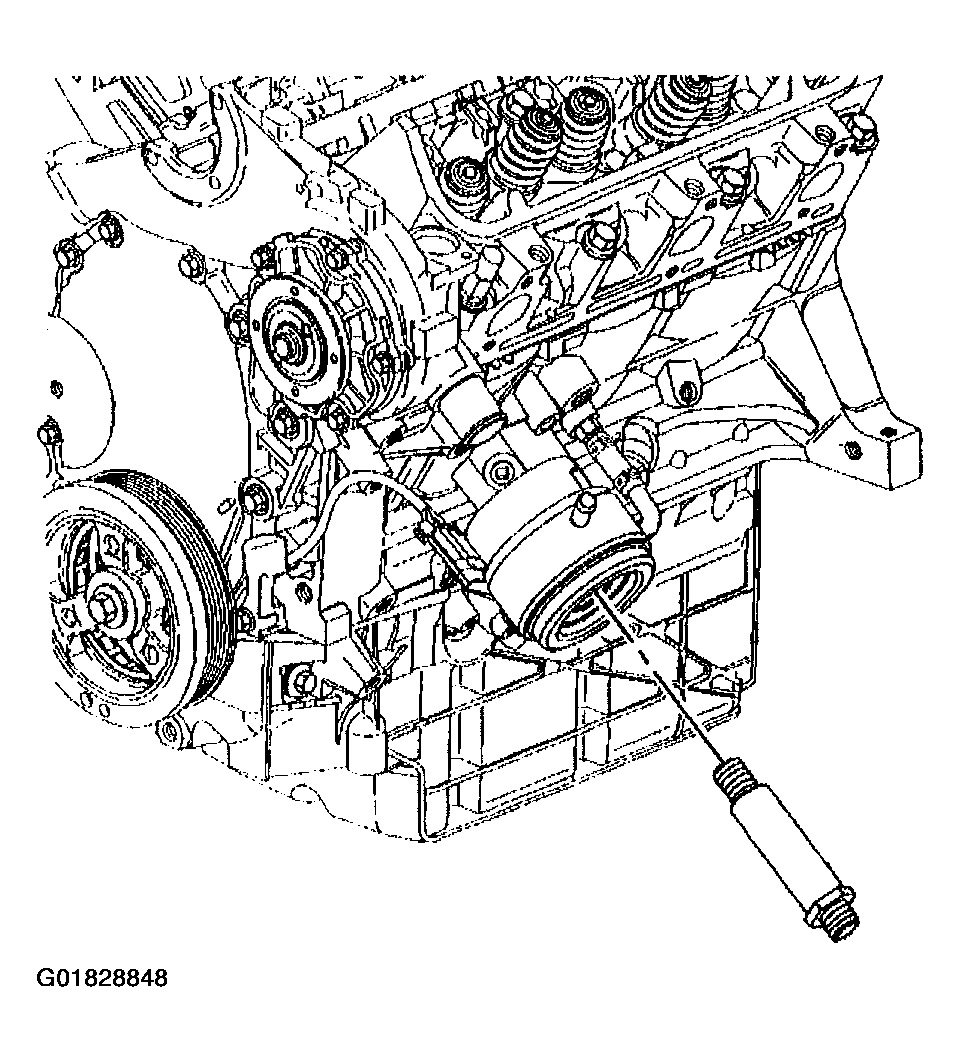

    Fig 2: Oil Cooler Connector
    G01828848Courtesy of GENERAL MOTORS CORP.
  5. Remove The Oil Cooler Inlet Hose Clamp And Oil Cooler.

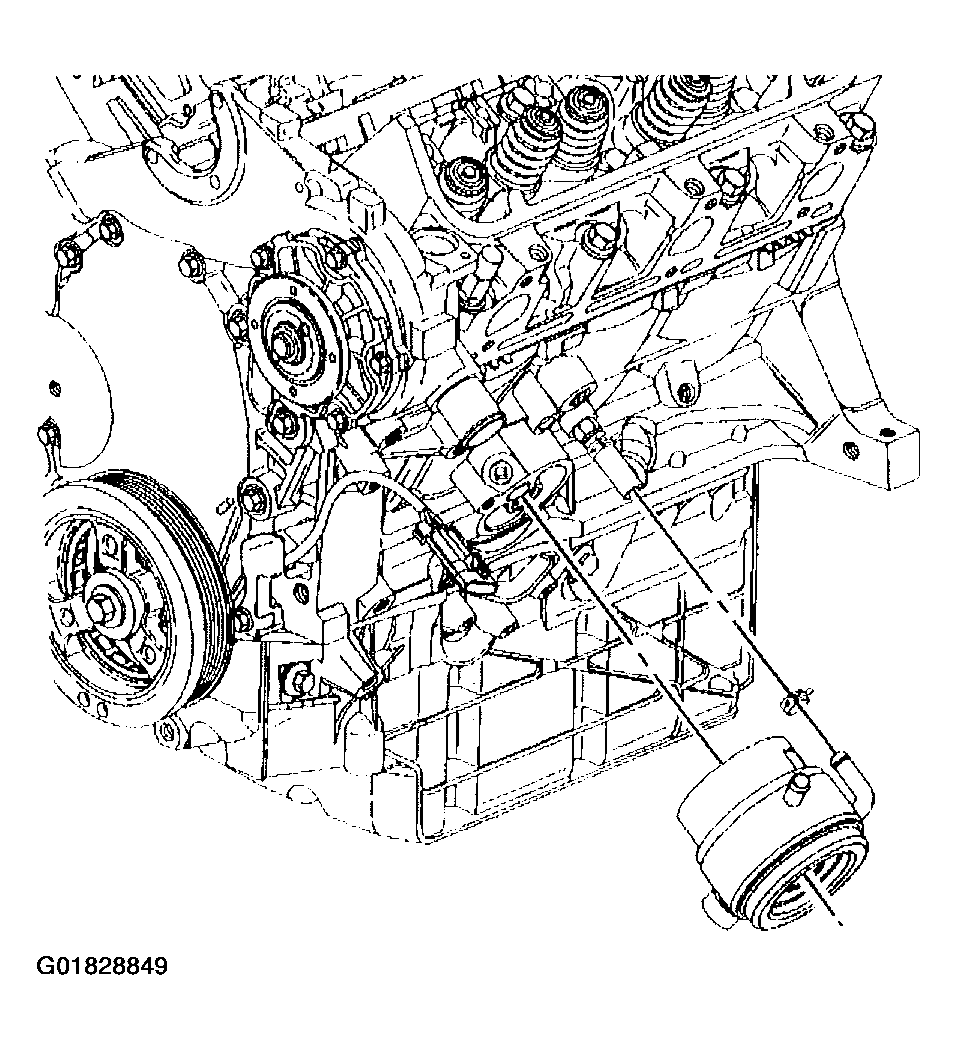

    Fig 3: Oil Cooler Inlet Hose Clamp & Oil Cooler
    G01828849Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil cooler inlet hose and oil cooler inlet hose clamp from the oil cooler hose fitting.

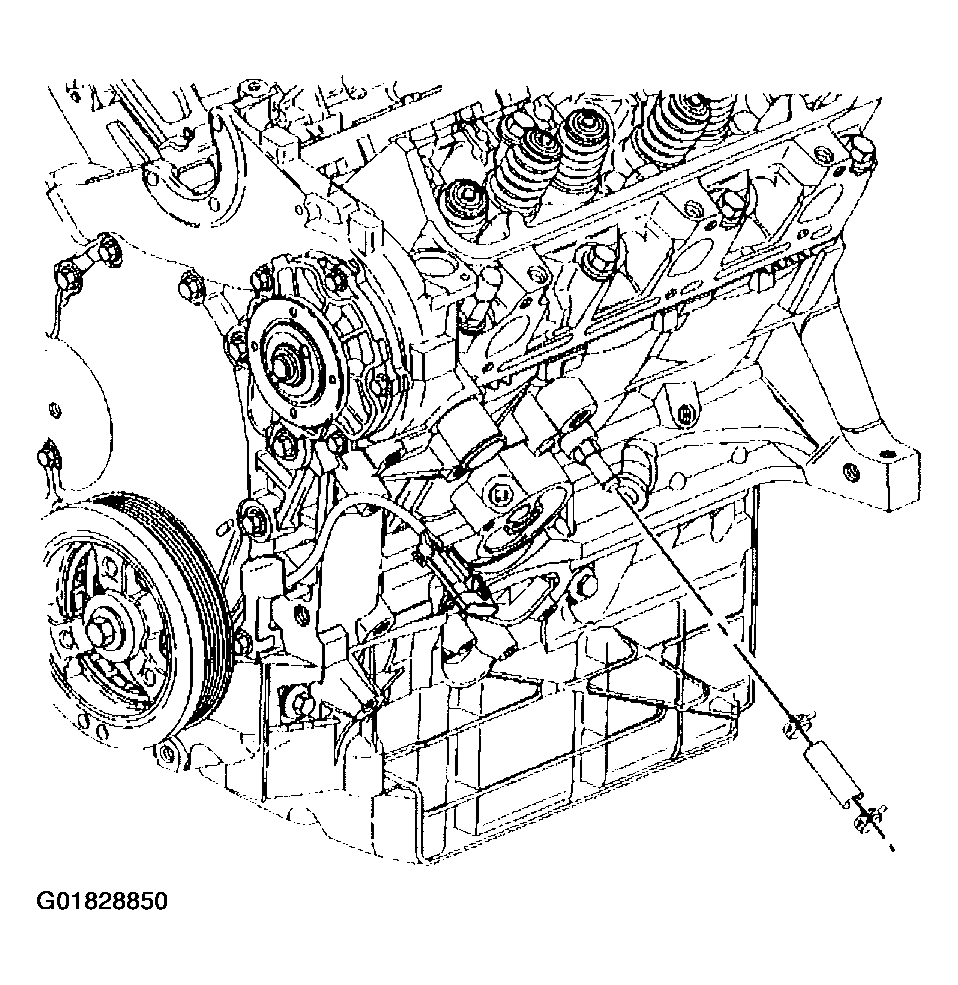

    Fig 4: Oil Cooler Inlet Hose
    G01828850Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil cooler hose fitting.

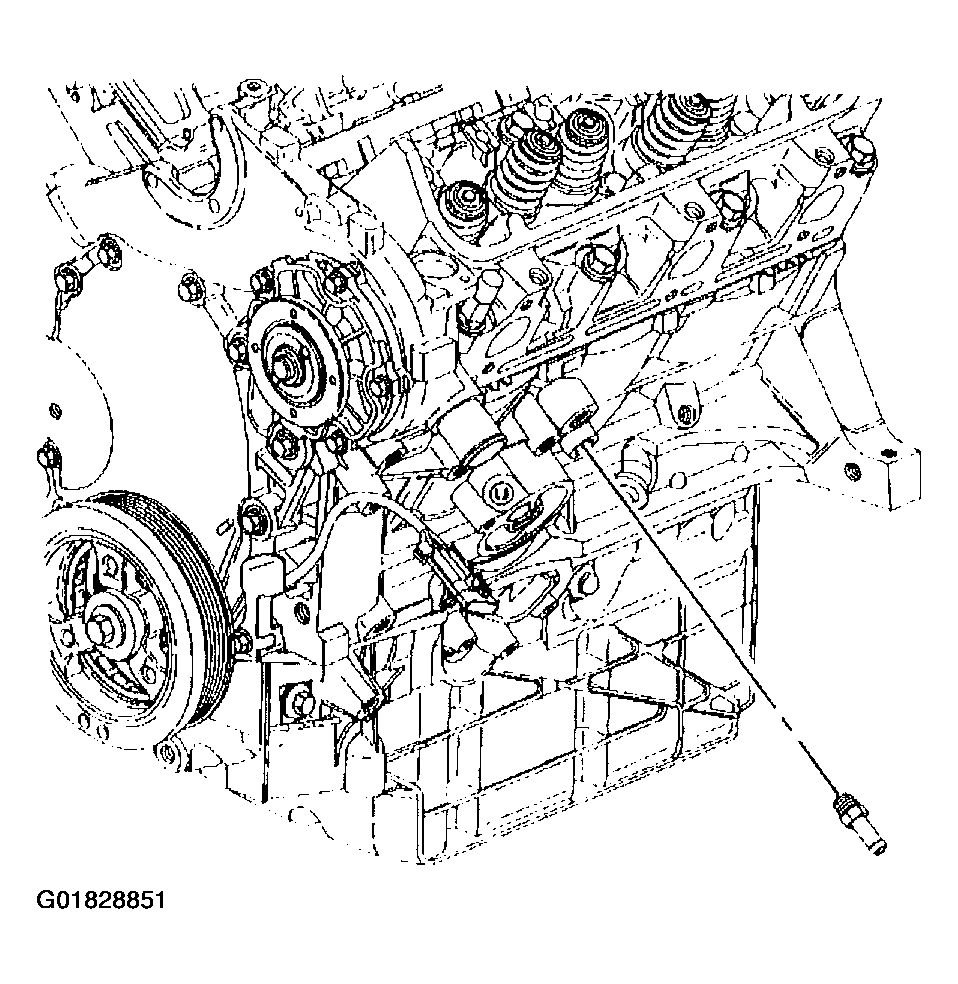

    Fig 5: Oil Cooler Hose Fitting
    G01828851Courtesy of GENERAL MOTORS CORP.
