Intake Manifold Removal - Upper

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the MAP sensor electrical connector.
  2. Remove the MAP sensor bolts.
  3. Remove the MAP sensor from bracket.
  4. Remove the MAP sensor bracket and bracket bolt.

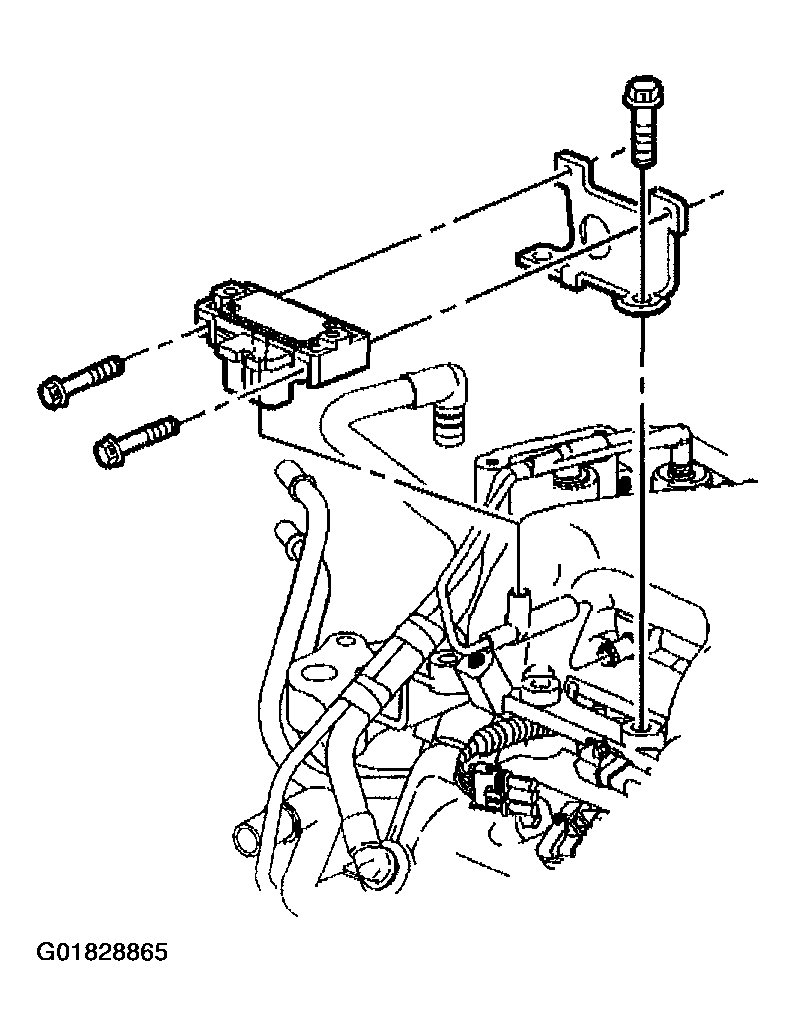

    Fig 1: MAP Sensor
    G01828865Courtesy of GENERAL MOTORS CORP.
  5. Remove the EGR valve pipe and bolt from the EGR valve.
  6. Remove the EGR valve bolts.
  7. Remove the EGR valve and gasket.

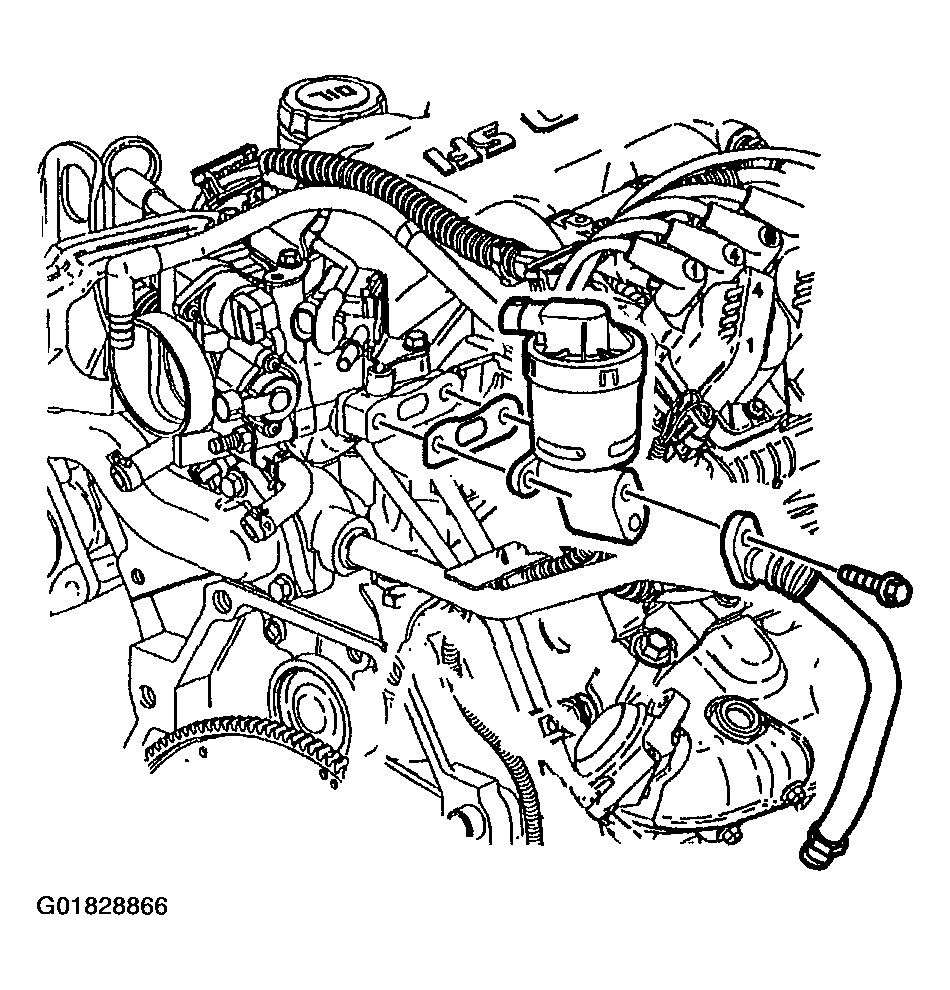

    Fig 2: EGR Valve
    G01828866Courtesy of GENERAL MOTORS CORP.
  8. Remove the vacuum harness assembly.

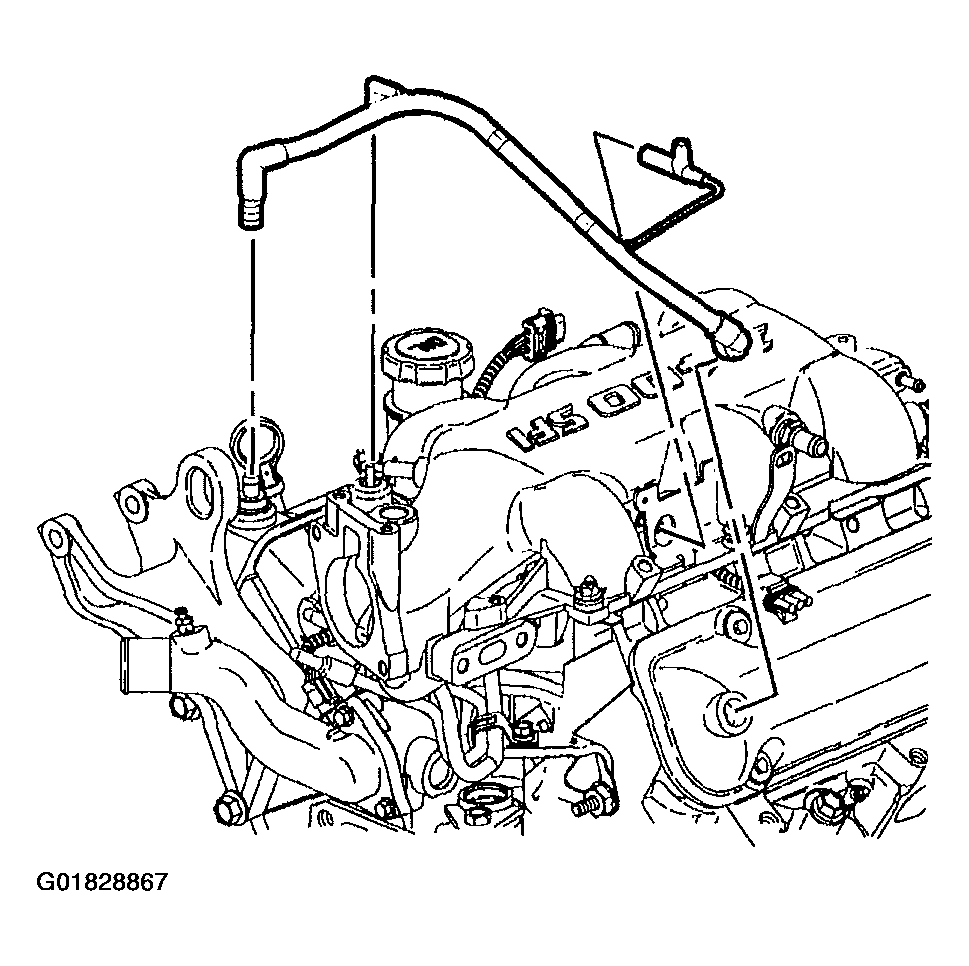

    Fig 3: Vacuum Harness Assembly
    G01828867Courtesy of GENERAL MOTORS CORP.
  9. Remove the accelerator cable bracket and bracket bolts.

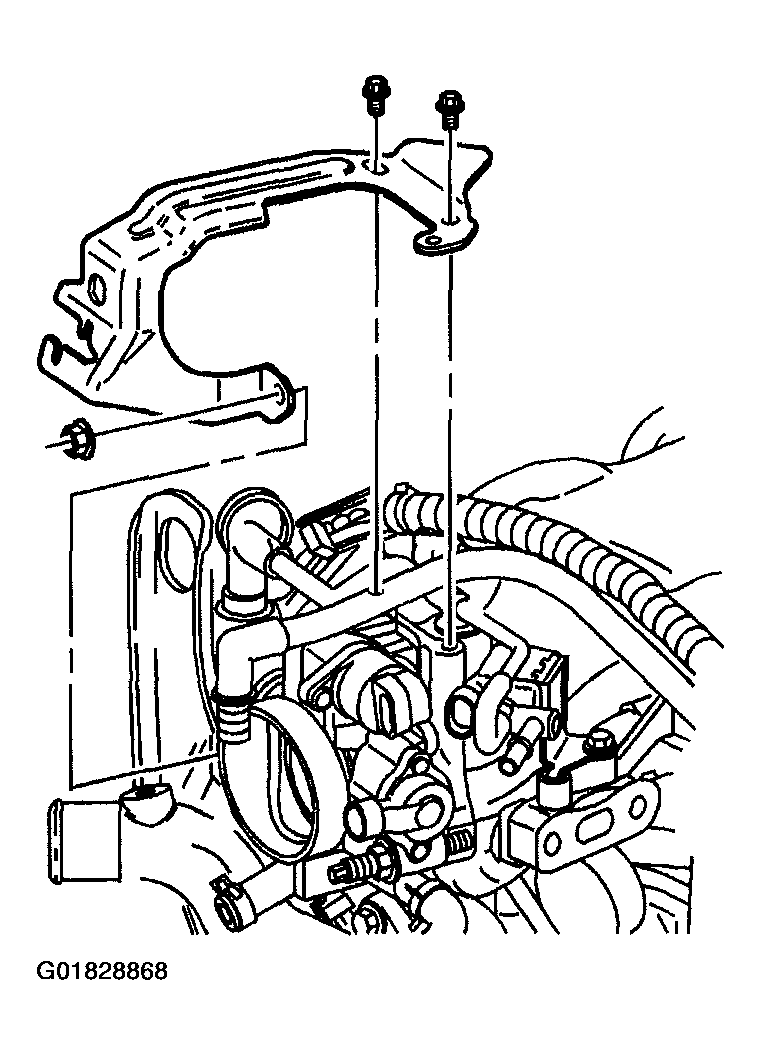

    Fig 4: Accelerator Cable Bracket & Bracket Bolts
    G01828868Courtesy of GENERAL MOTORS CORP.
  10. Remove the purge valve bracket bolt, hose and valve assembly.
  11. Remove the throttle body bolts.
  12. Remove the throttle body and gasket.
  13. Remove the upper intake manifold bolts.
  14. Remove the upper intake manifold and gaskets.

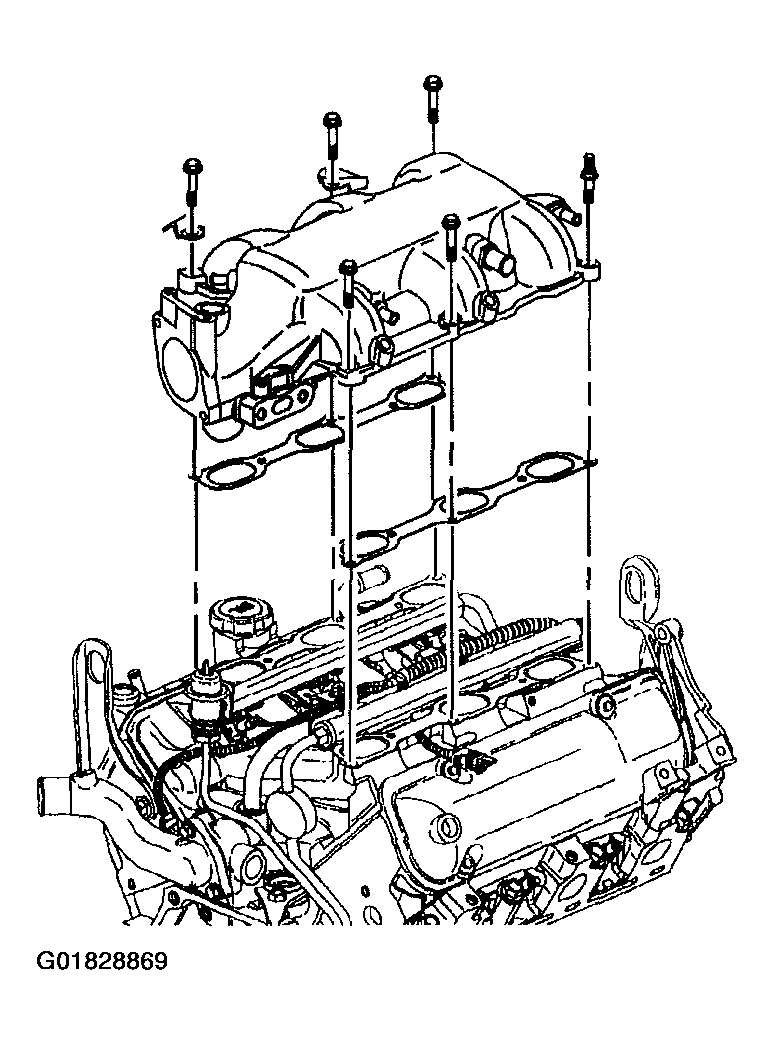

    Fig 5: Upper Intake Manifold
    G01828869Courtesy of GENERAL MOTORS CORP.
