Intake Manifold Removal - Lower

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel feed and return pipe retaining clip bolt.
  2. Remove the fuel feed and return pipe retaining clip.

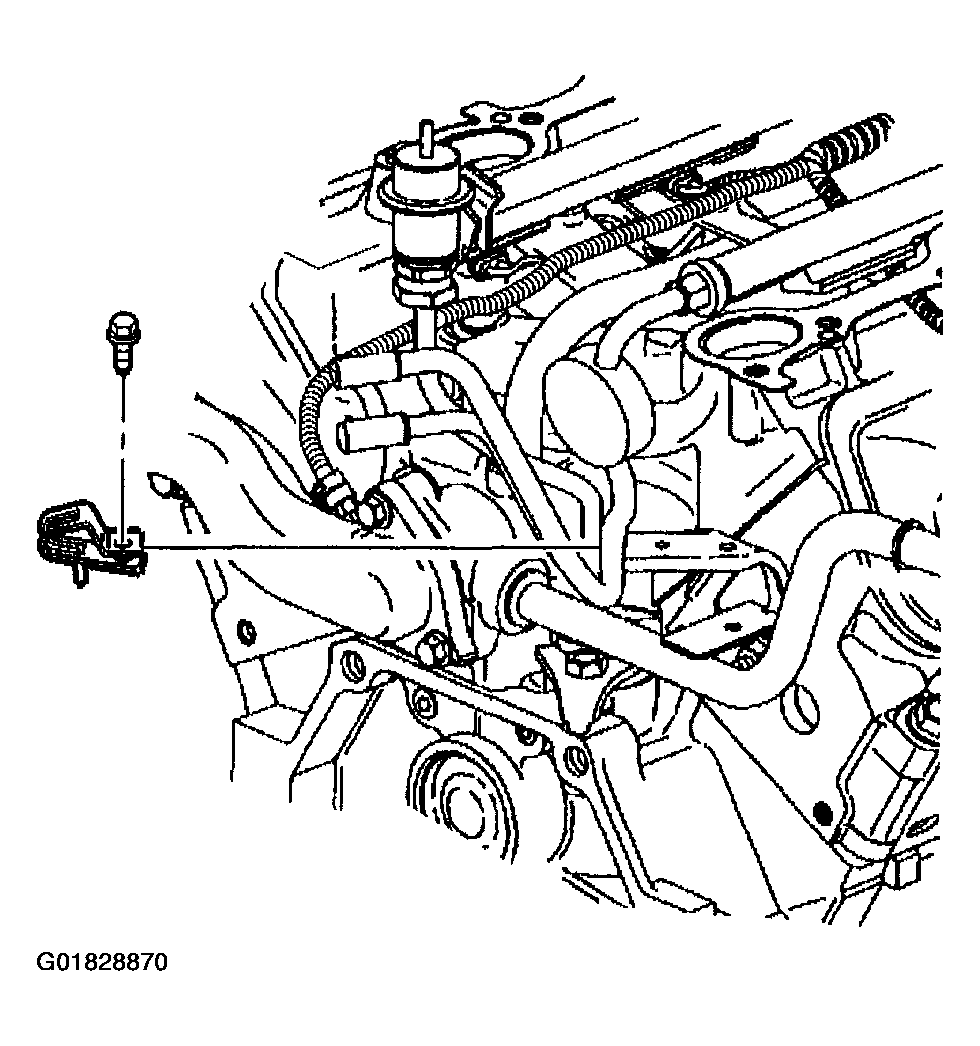

    Fig 1: Fuel Feed & Return Pipe Retaining Clip
    G01828870Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel injector rail bolts.
  4. Remove the fuel injector rail assembly.

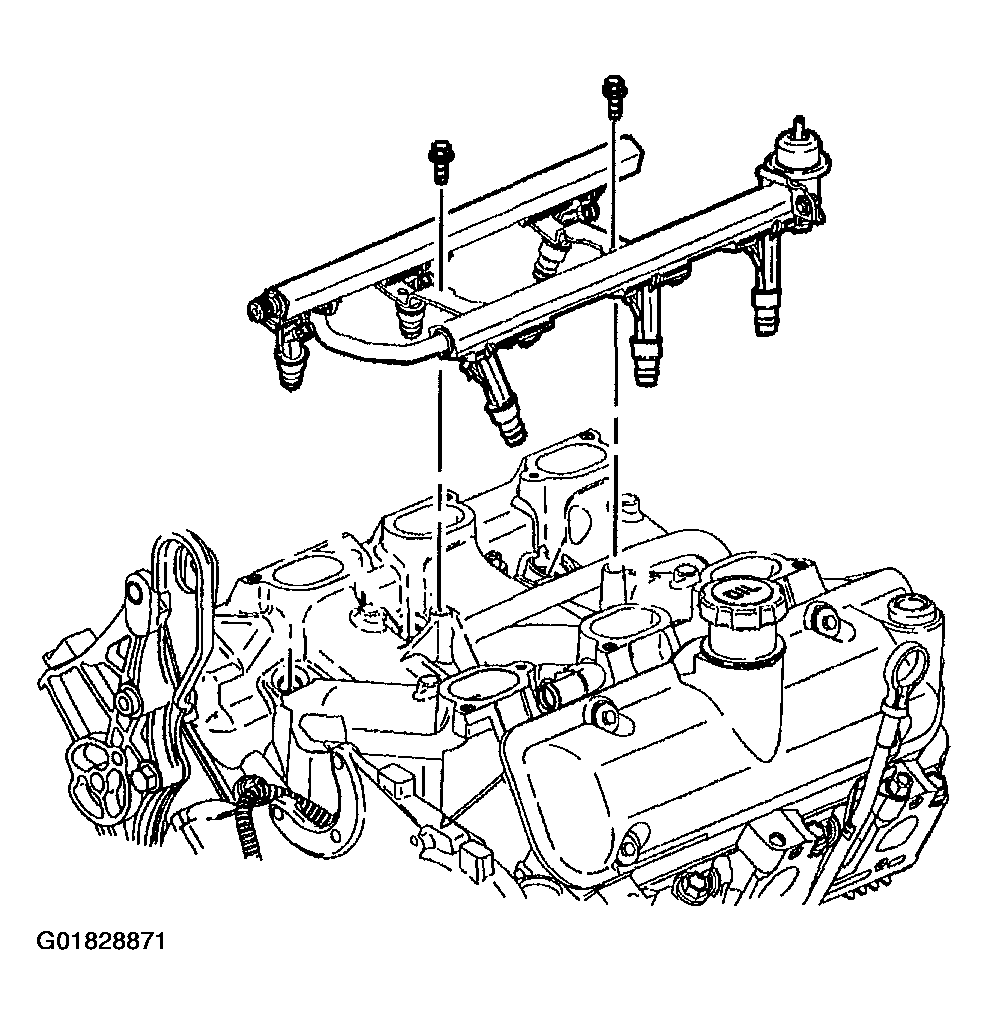

    Fig 2: Fuel Injector Rail Assembly
    G01828871Courtesy of GENERAL MOTORS CORP.
  5. Remove the heater inlet pipe nut.
  6. Remove the heater inlet pipe.

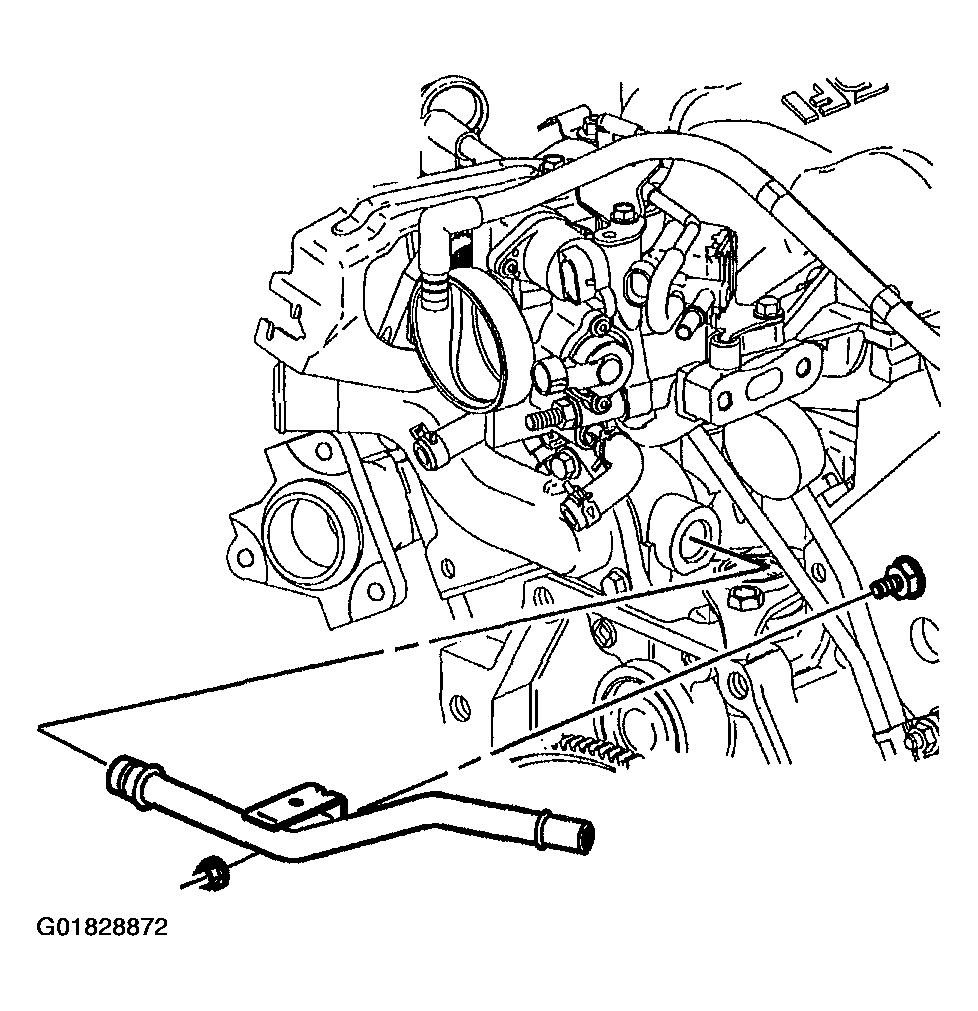

    Fig 3: Heater Inlet Pipe
    G01828872Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower intake manifold bolts.
  8. Remove the lower intake manifold.

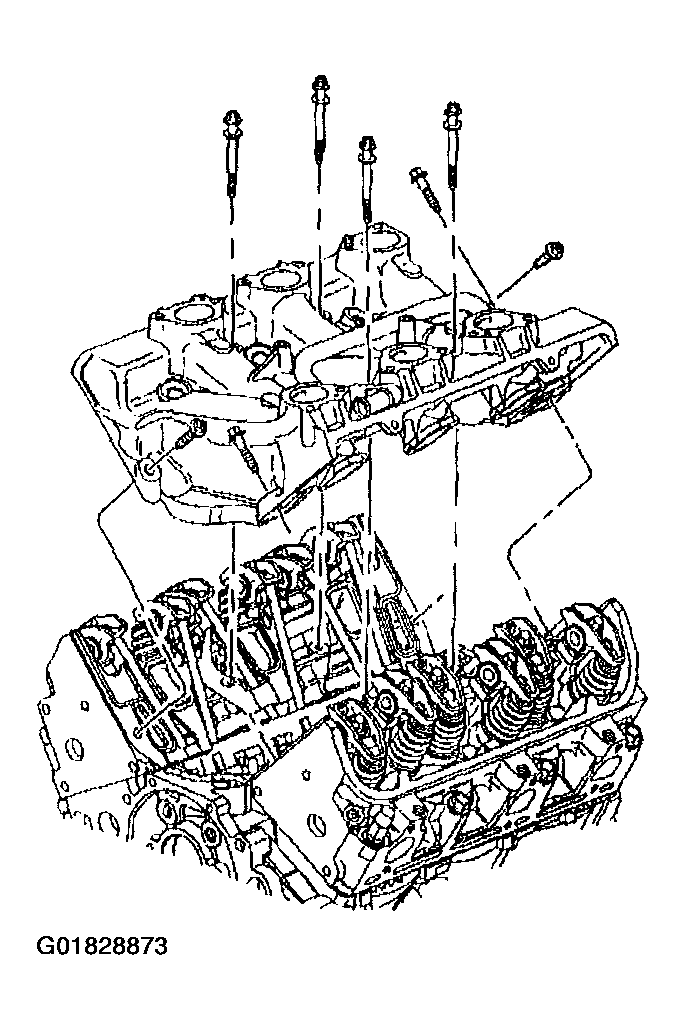

    Fig 4: Lower Intake Manifold
    G01828873Courtesy of GENERAL MOTORS CORP.
