Exhaust Manifold Removal - Right

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heated oxygen sensor.

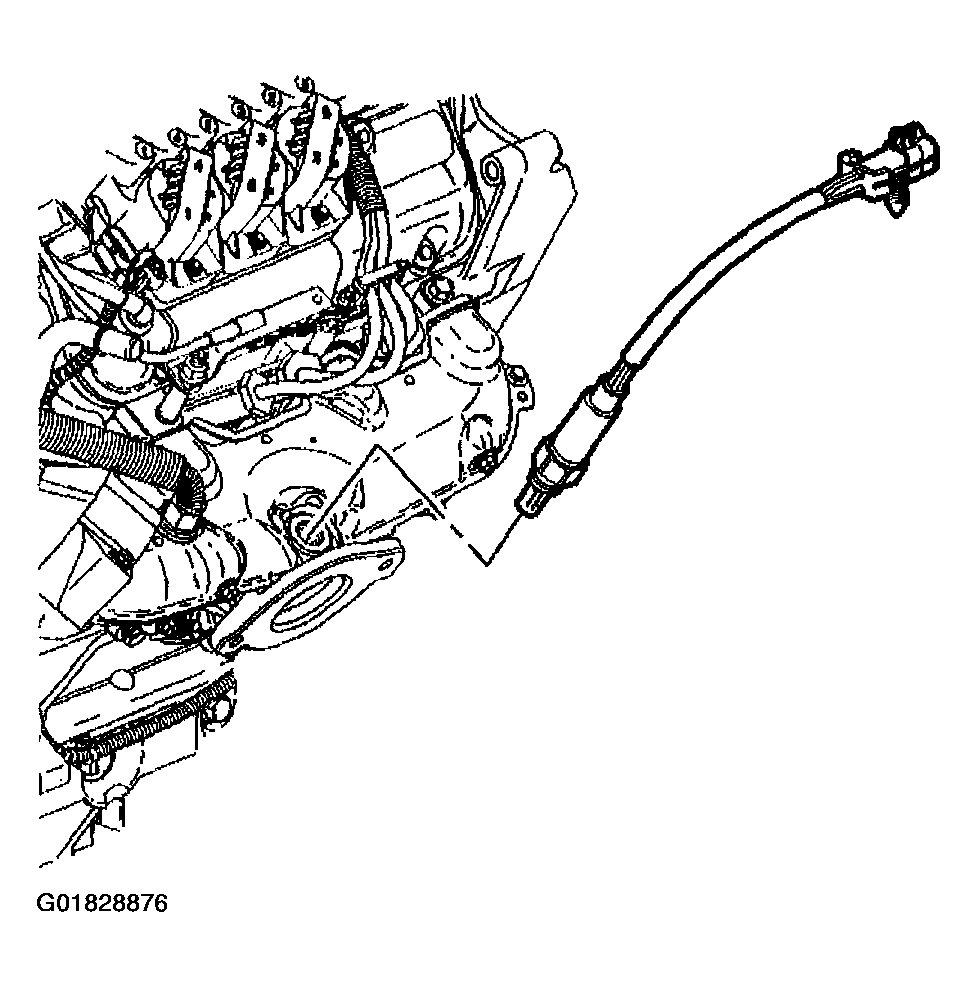

    Fig 1: Heated Oxygen Sensor
    G01828876Courtesy of GENERAL MOTORS CORP.
  2. Remove the exhaust manifold heat shield bolts.
  3. Remove the exhaust manifold heat shields.

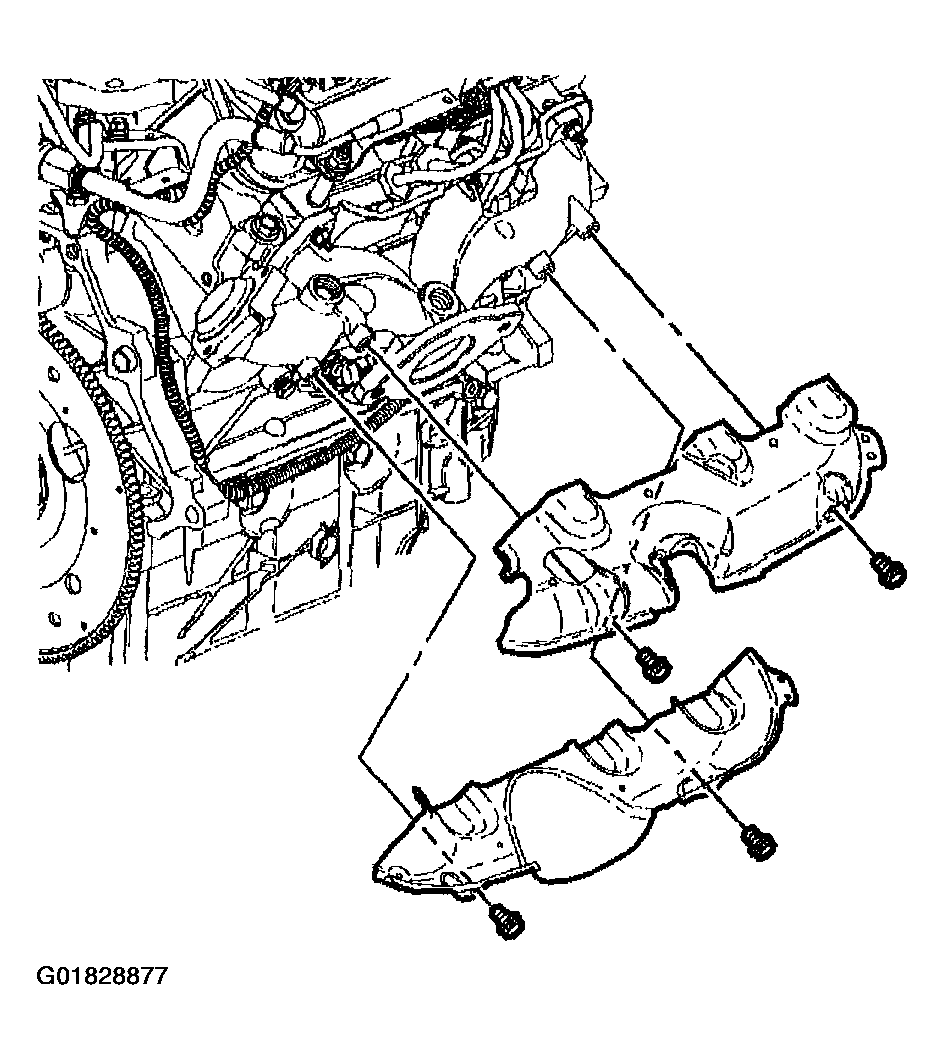

    Fig 2: Exhaust Manifold Heat Shields
    G01828877Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust manifold nuts.
  5. Remove the exhaust manifold.
  6. Remove the exhaust manifold gasket.
  7. Remove the exhaust studs, if required.

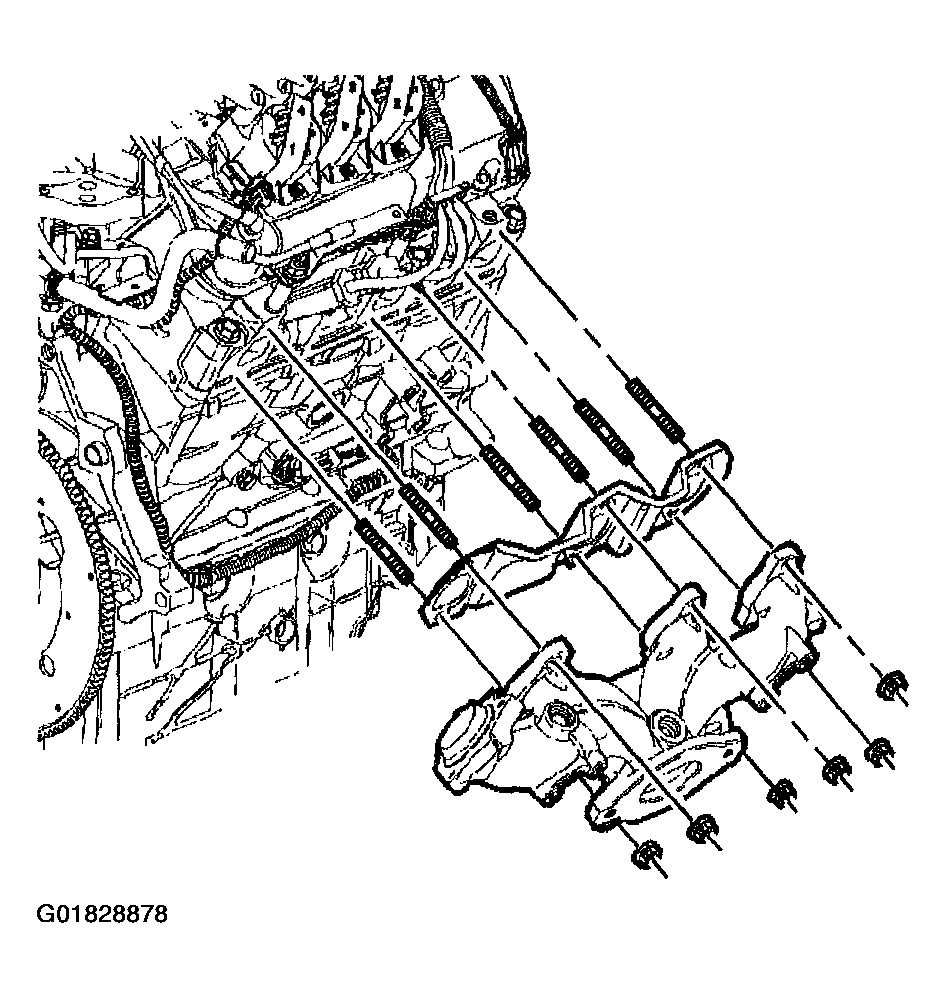

    Fig 3: Exhaust Manifold (Right)
    G01828878Courtesy of GENERAL MOTORS CORP.
