Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield bolts.
  2. Remove the exhaust manifold heat shield.

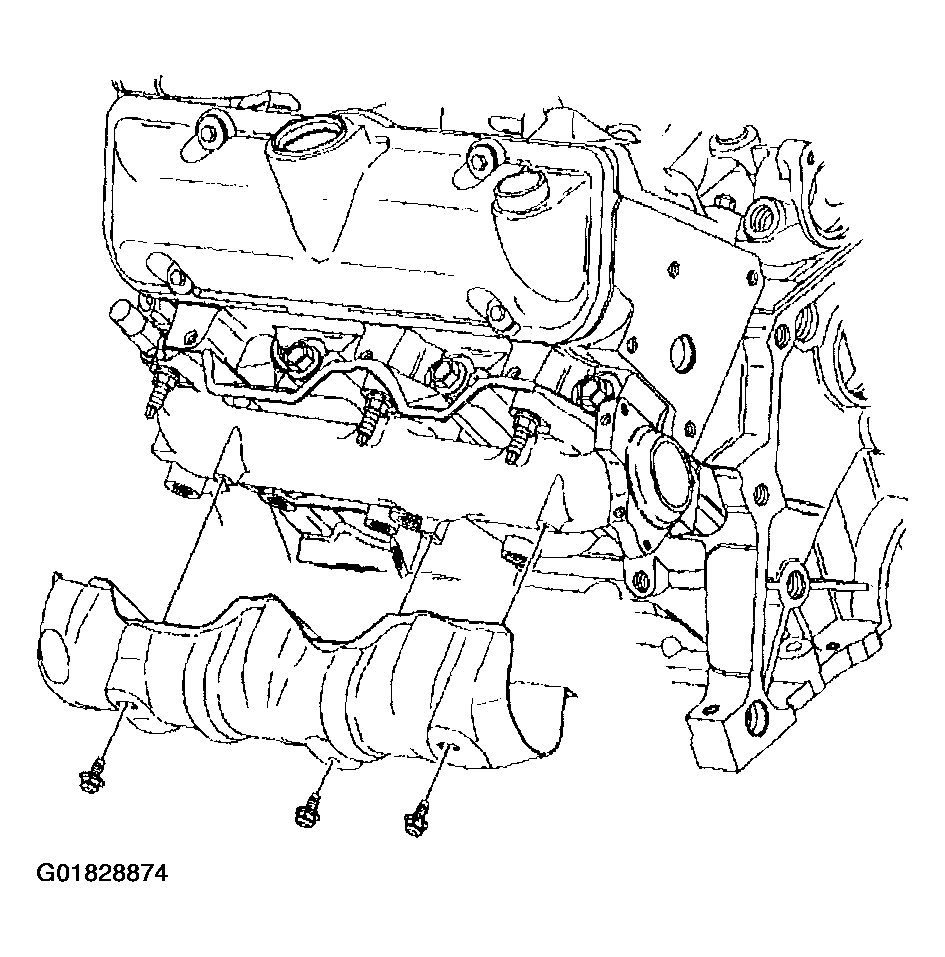

    Fig 1: Exhaust Manifold Heat Shield
    G01828874Courtesy of GENERAL MOTORS CORP.
  3. Remove the exhaust manifold nuts.
  4. Remove the exhaust manifold.
  5. Remove the exhaust manifold gasket.
  6. Remove the exhaust studs, if required.

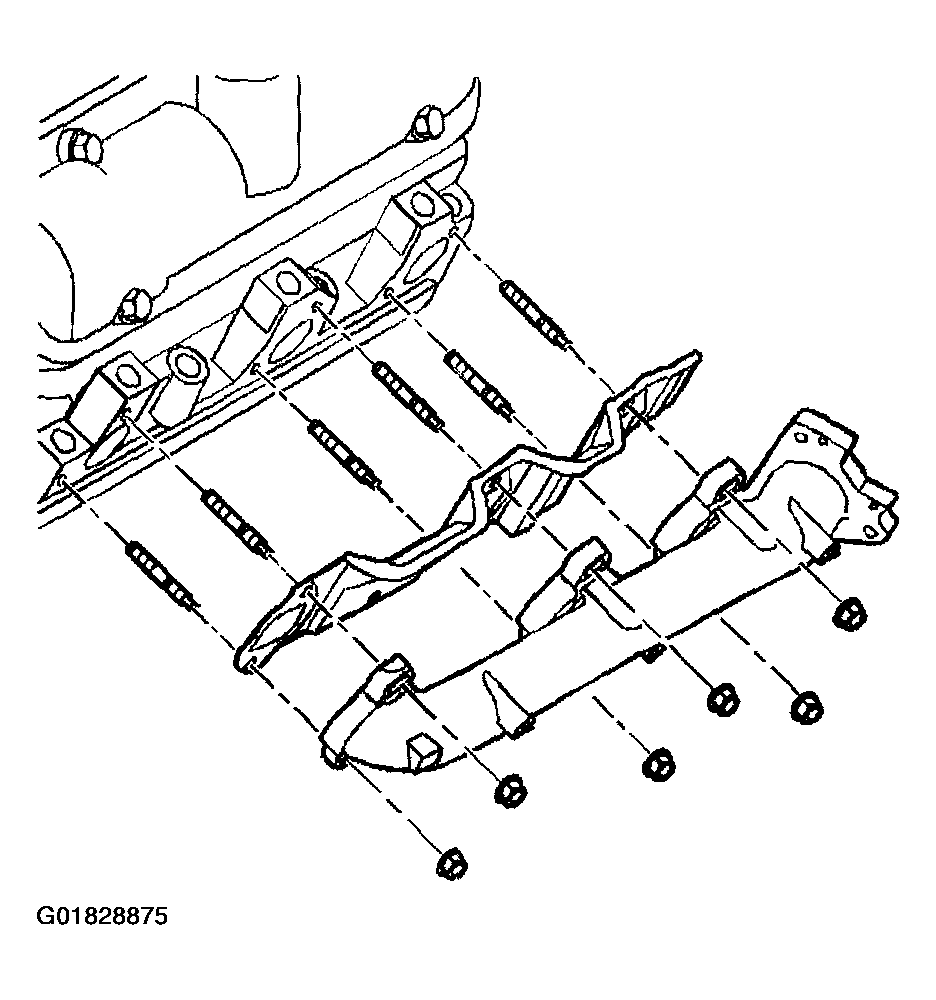

    Fig 2: Exhaust Manifold (Left)
    G01828875Courtesy of GENERAL MOTORS CORP.
