Engine Mount Support and Strut Bracket Installation (N Car)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

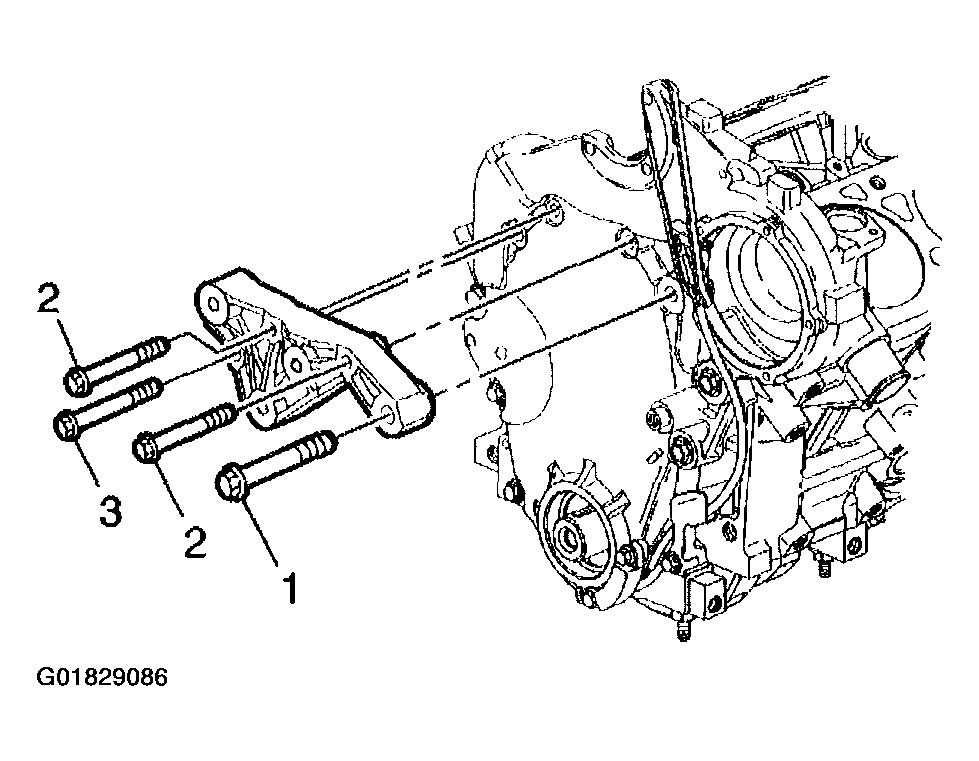

Fig 1: Engine Mount Support & Strut Bracket (N Car)

Courtesy of GENERAL MOTORS CORP.

Install the engine mount support.
NOTE: Refer to FASTENER NOTICE .
Install the engine mount support bolts.
Tighten
1. Tighten the engine mount support bolt (1) to 55 N.m (41 lb ft).
2. Tighten the engine mount support bolts (2) to 27 N.m (20 lb ft).
3. Tighten the engine mount support bolt (3) to 55 N.m (41 lb ft).
