Engine Mount Strut and Engine Lift Bracket Installation (B Van, U Van, W Car)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

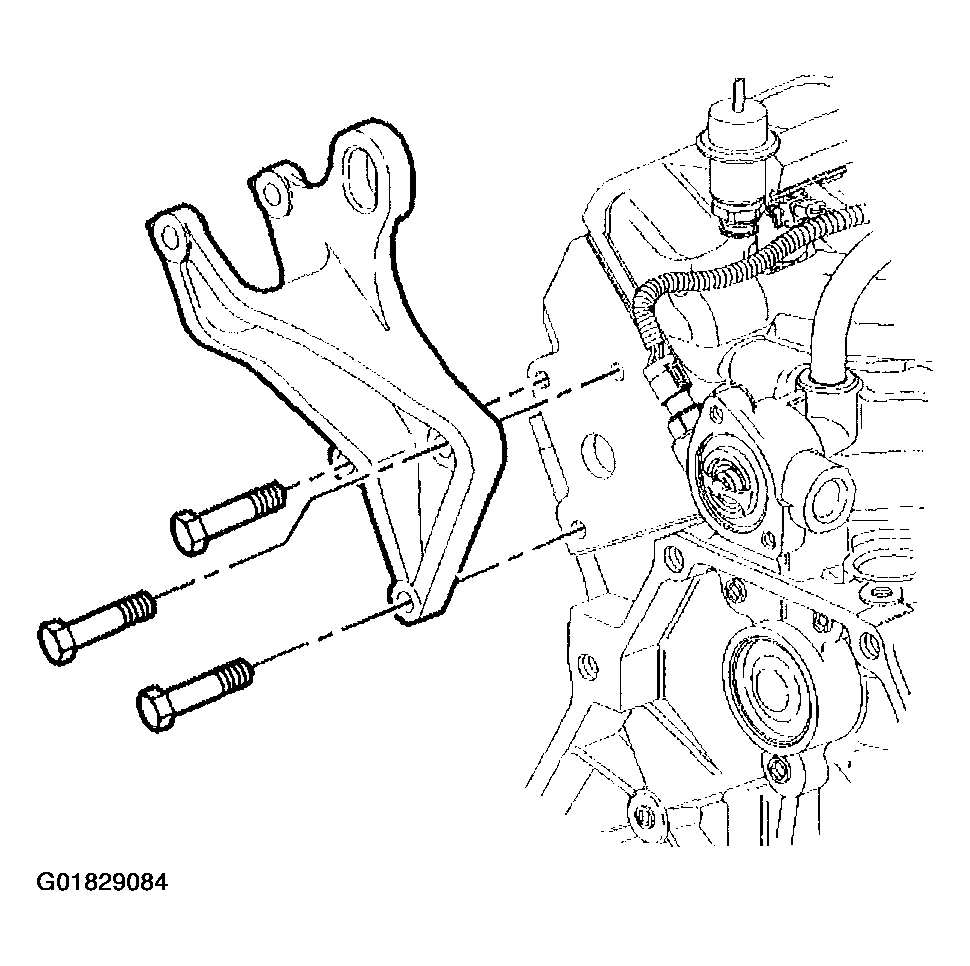

    Fig 1: Engine Mount Strut & Engine Lift Bracket (B Van, U Van, W Car)
    G01829084Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount strut and lift bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine mount strut and lift bracket bolts.

    Tighten

    Tighten the engine mount strut and lift bracket bolts to 70 N.m (52 lb ft).
