Engine Mount Strut and Air Conditioning Compressor Bracket Installation (B Van, U Van, W Car)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

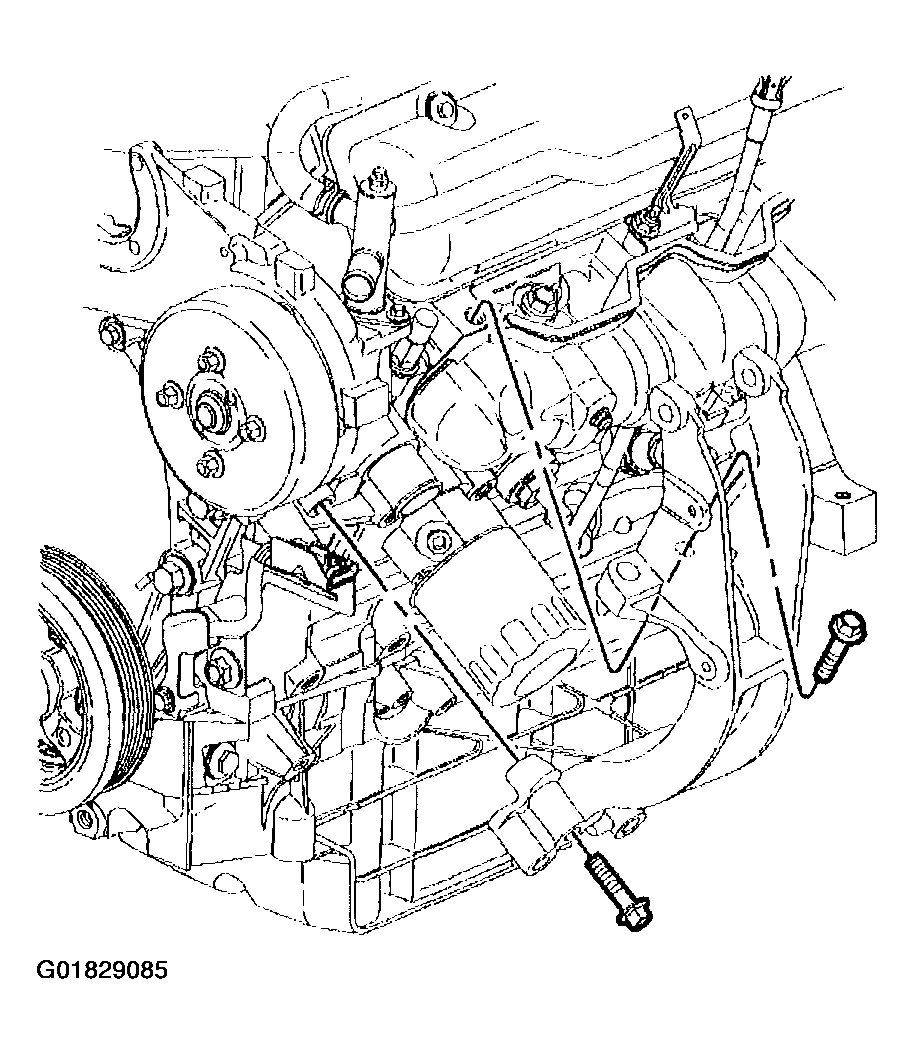

    Fig 1: Engine Mount Strut & Air Conditioning Compressor Bracket (B Van, U Van, W Car)
    G01829085Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount strut and A/C Compressor bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine mount strut and A/C Compressor bracket bolts.

    Tighten

    Tighten the engine mount strut and lift bracket bolts to 50 N.m (37 lb ft).
