Engine Lift Bracket and Generator Bracket Removal (N Car)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator bracket bolts (1-3).
  2. Remove the generator bracket.
  3. Remove the front engine lift bracket.

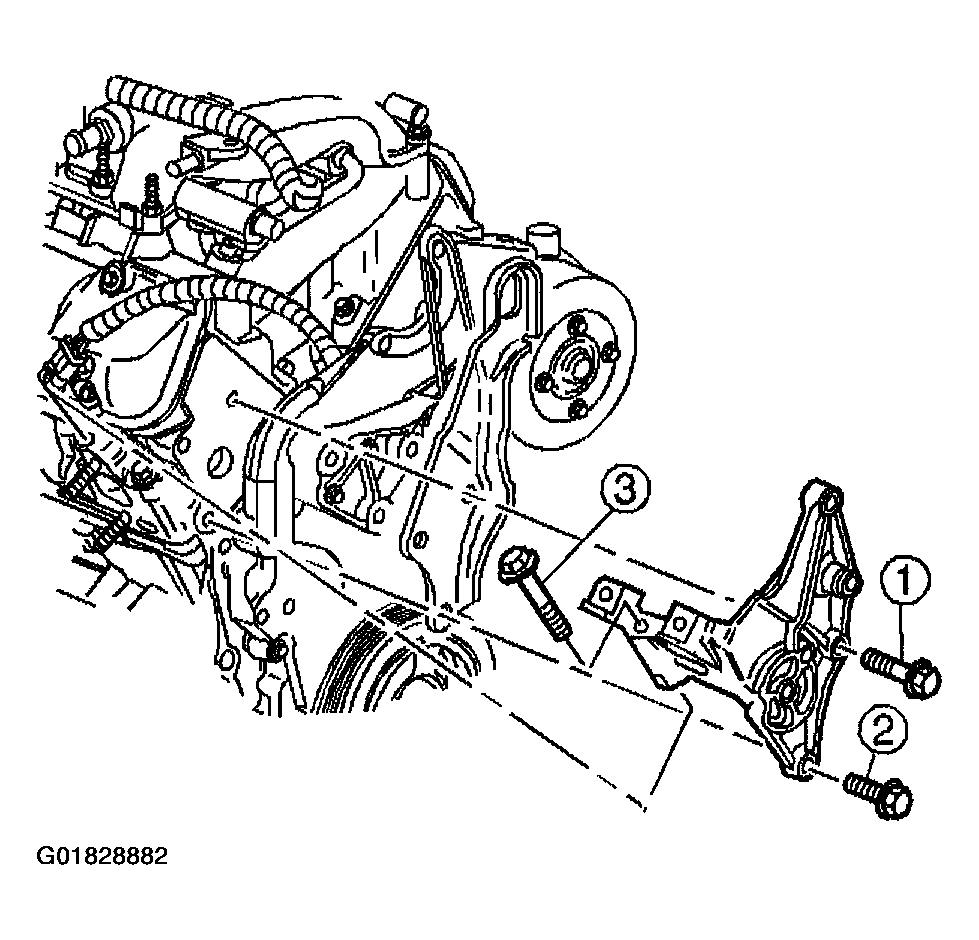

    Fig 1: Engine Lift Bracket & Generator Bracket
    G01828882Courtesy of GENERAL MOTORS CORP.
