Engine Lift Bracket and Generator Bracket Installation (N Car)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

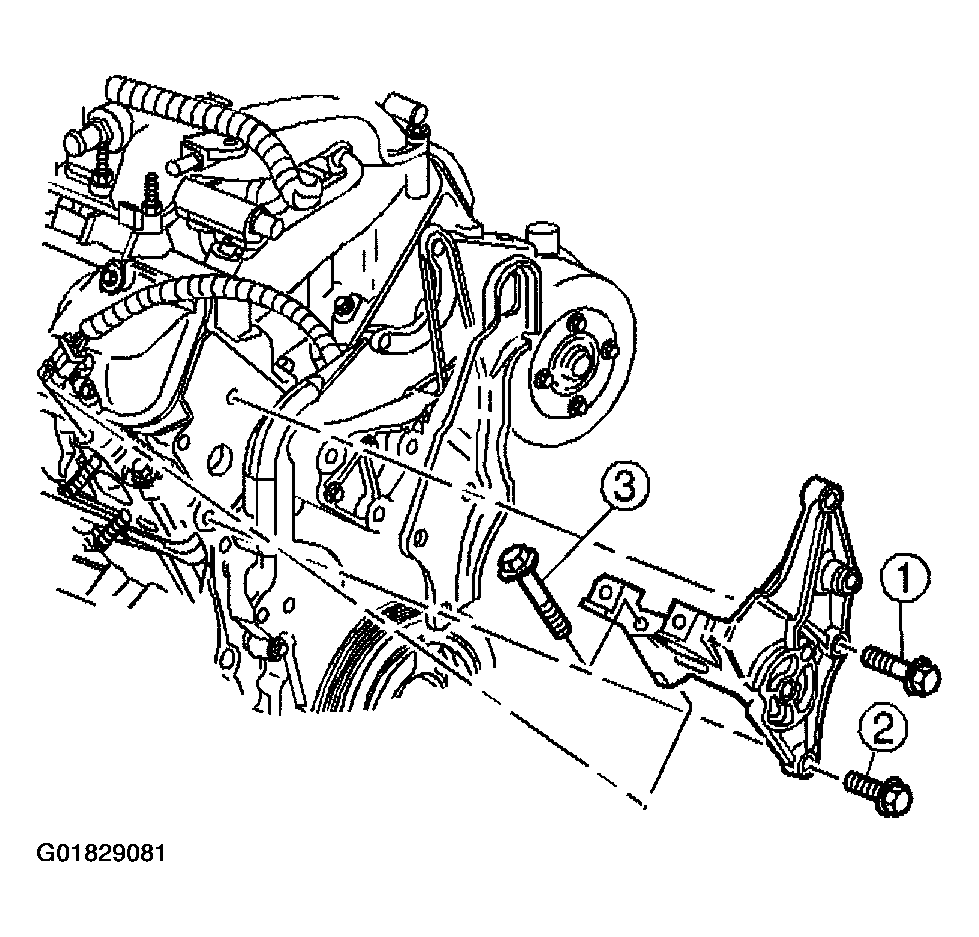

Fig 1: Engine Lift Bracket & Generator Bracket (N Car)

Courtesy of GENERAL MOTORS CORP.

Install the front engine lift hook.
Install the generator bracket.
NOTE: Refer to FASTENER NOTICE .
Install the generator bracket bolts.
Tighten

Tighten the generator bracket bolts in sequence (1, 2, 3) to 50 N.m (37 lb ft).
