Engine Front Cover Removal (N Car)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor wiring bracket bolt.
  2. Remove the crankshaft position sensor wiring bracket.

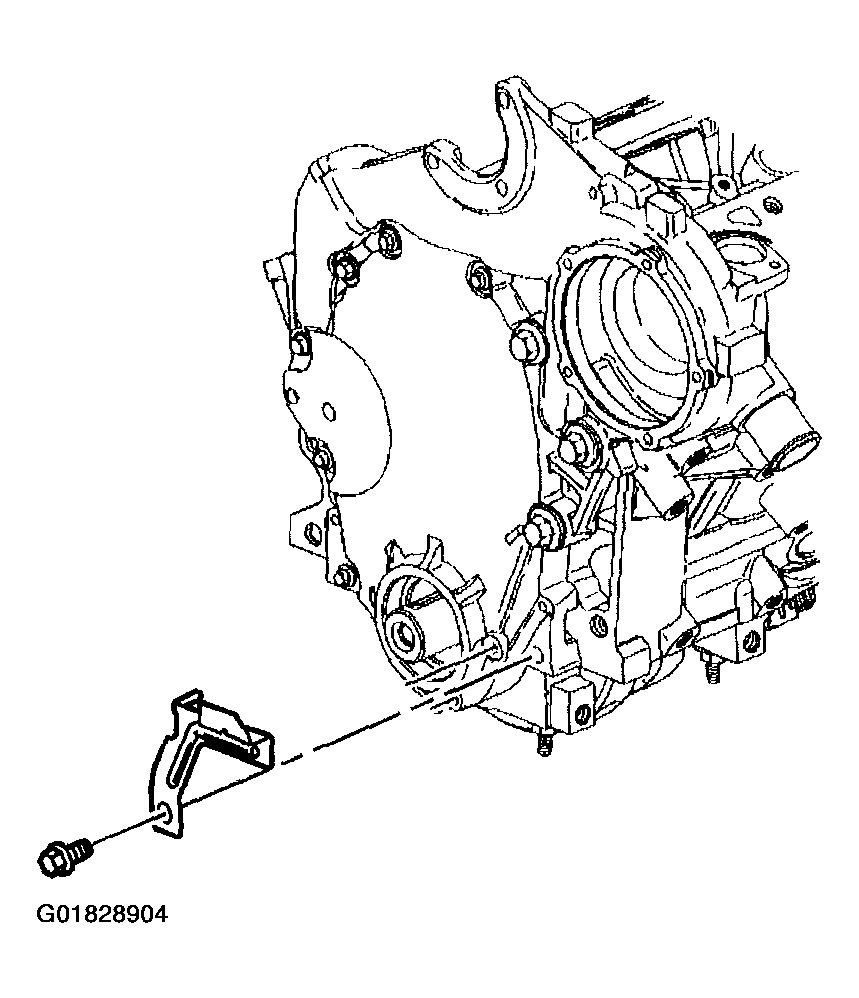

    Fig 1: Crankshaft Position Sensor Wiring Bracket
    G01828904Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine front cover bolts (1, 2, 3).
  4. Remove the engine front cover.
  5. Remove the engine front cover gasket.

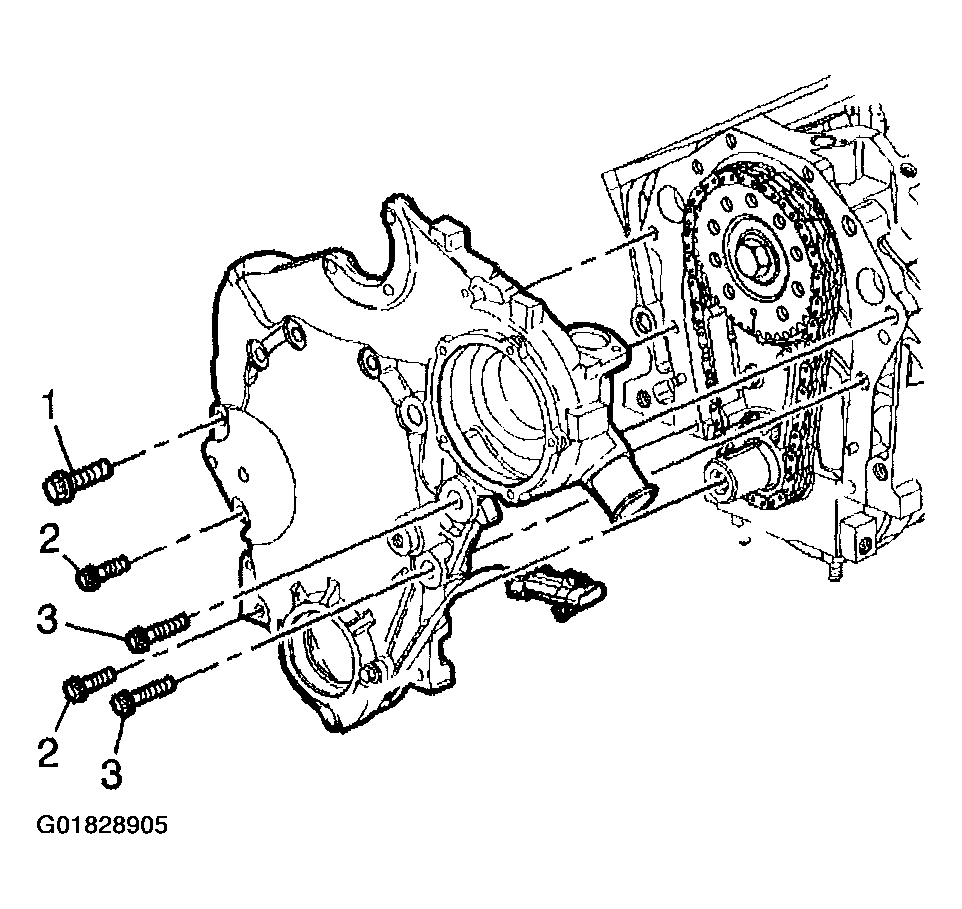

    Fig 2: Engine Front Cover
    G01828905Courtesy of GENERAL MOTORS CORP.
