Engine Front Cover Installation (N Car)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Engine Front Cover Gasket
    G01829055Courtesy of GENERAL MOTORS CORP.
  1. Install the engine front cover gasket.
  2. Apply sealer GM P/N United States 12346004, GM P/N Canada 10953480 or the equivalent to both sides of the lower tabs of the engine front cover gasket.
  3. Install the engine front cover.
    NOTE: Refer to FASTENER NOTICE .

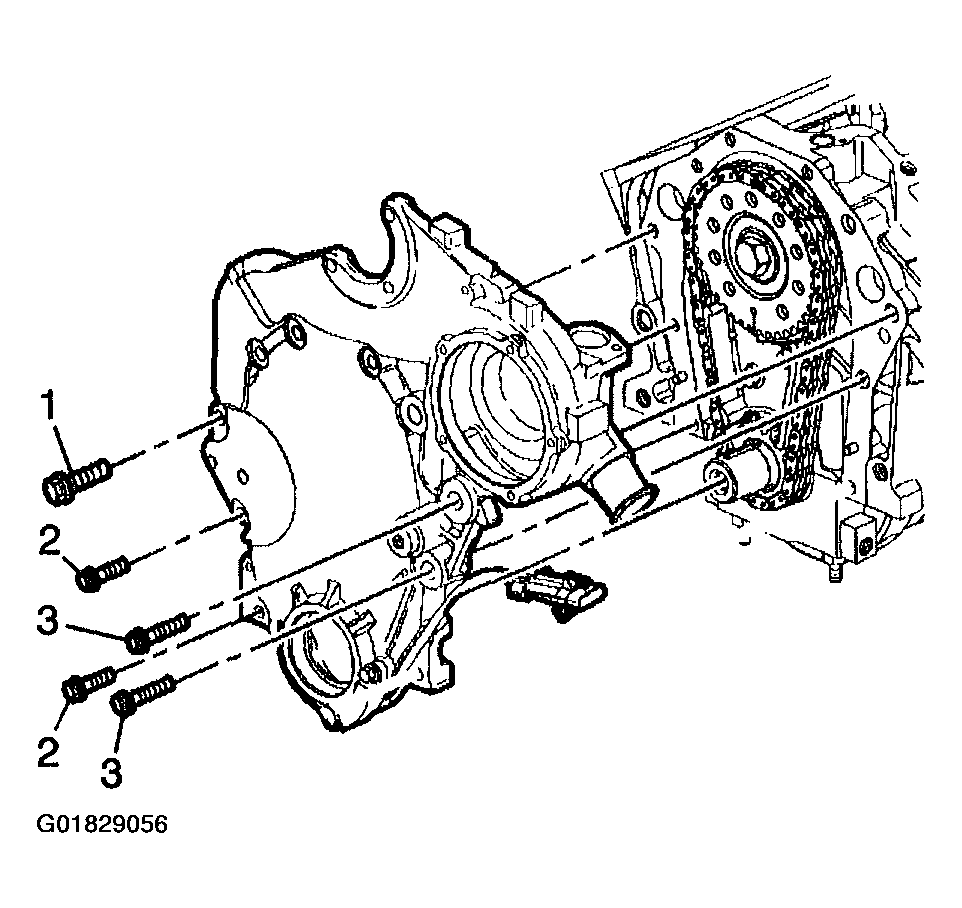

    Fig 2: Locating Engine Front Cover Bolts
    G01829056Courtesy of GENERAL MOTORS CORP.
  4. Install the engine front cover bolts (3).

    Tighten

    Tighten the bolts (3) to 55 N.m (41 lb ft).

  5. Install the engine front cover bolt (1).

    Tighten

    Tighten the bolt (1) to 55 N.m (41 lb ft).

  6. Install the engine front cover bolts (2).

    Tighten

    Tighten the bolts (2) to 27 N.m (20 lb ft).

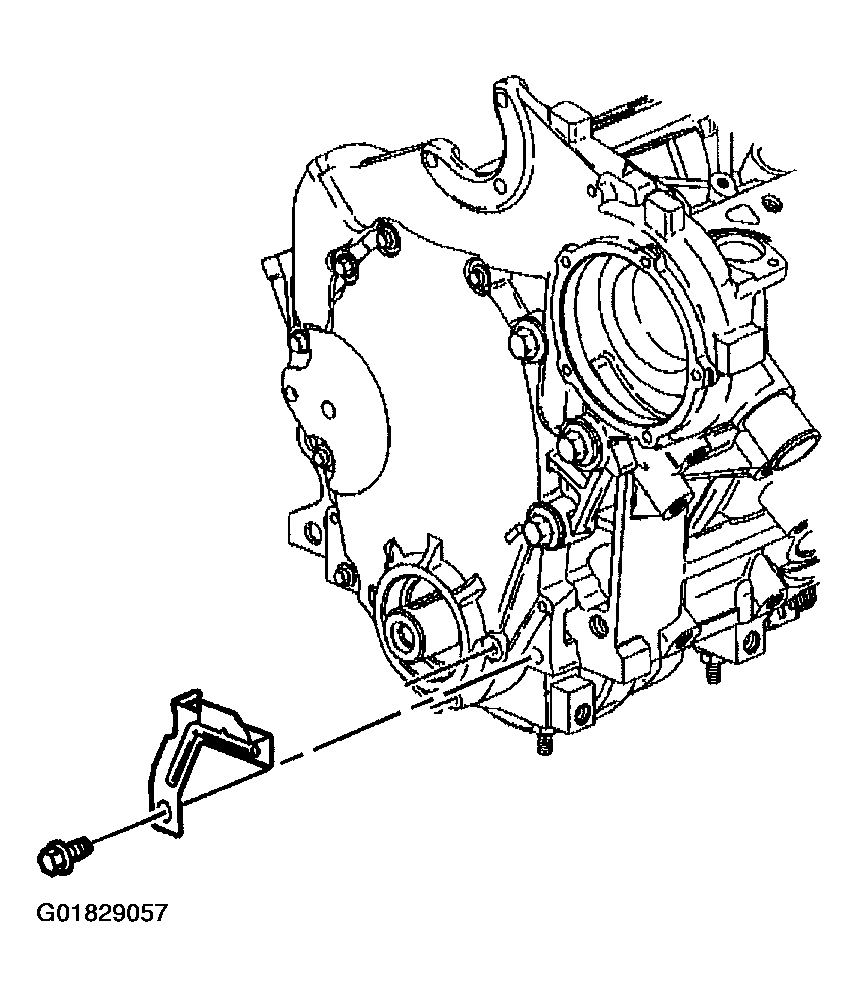

    7. Fig 3: Crankshaft Position Sensor Wiring Bracket
    G01829057Courtesy of GENERAL MOTORS CORP.
  7. Install the crankshaft position sensor wiring bracket.
  8. Install the crankshaft position sensor wiring bracket bolt.

    Tighten

    Tighten the crankshaft position sensor wiring bracket bolt to 40 N.m (30 lb ft).
