Drive Belt Tensioner Installation (W Car)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

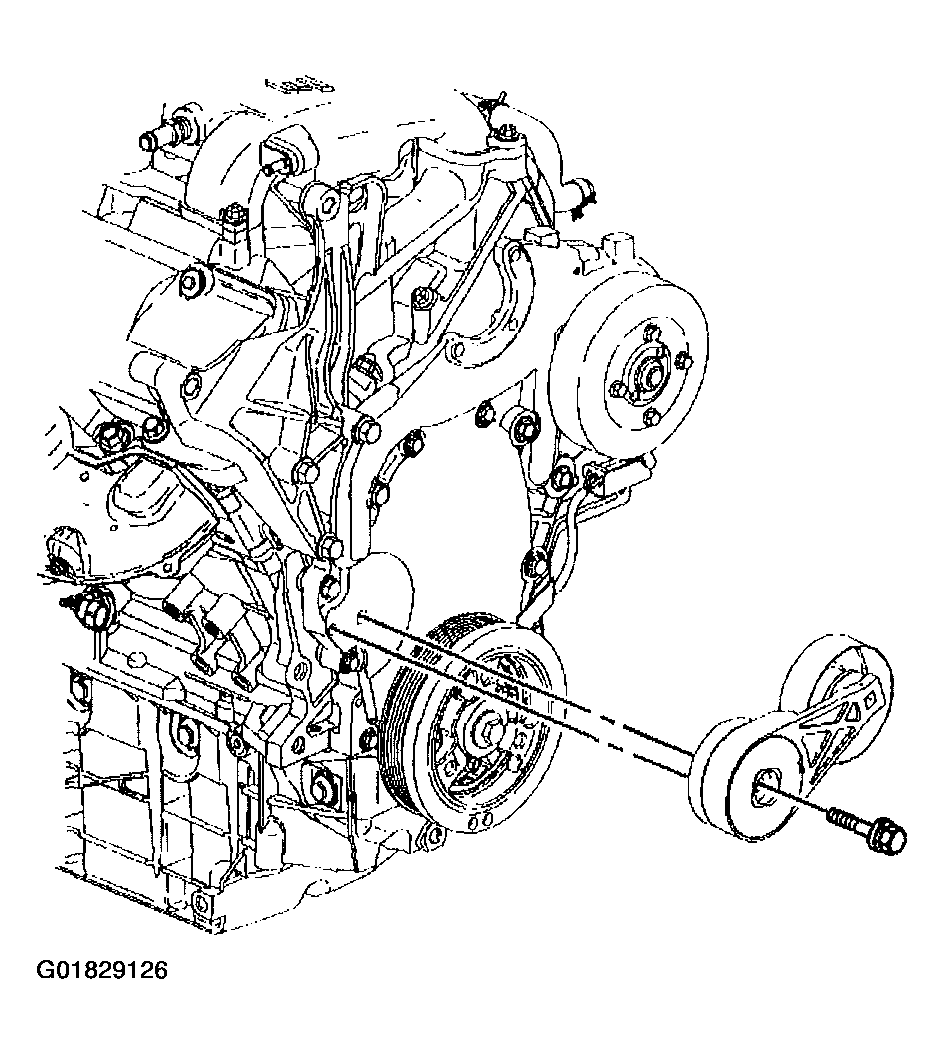

    Fig 1: Drive Belt Tensioner (W Car)
    G01829126Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt tensioner.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the drive belt tensioner bolt.

    Tighten

    Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).
