Cylinder Head Removal - Left

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plugs.
  2. Remove and discard the cylinder head bolts.
  3. Remove the cylinder head.

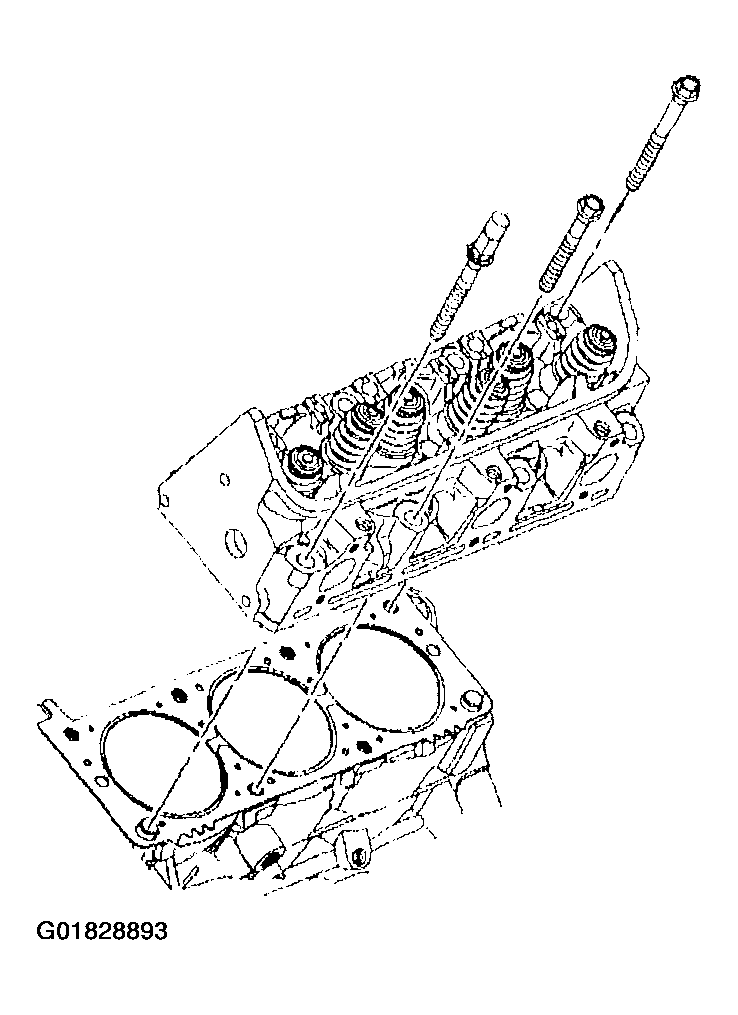

    Fig 1: Cylinder Head - Left
    G01828893Courtesy of GENERAL MOTORS CORP.
  4. Remove the cylinder head gasket.
  5. Remove the dowel pins - cylinder head locator, if required.

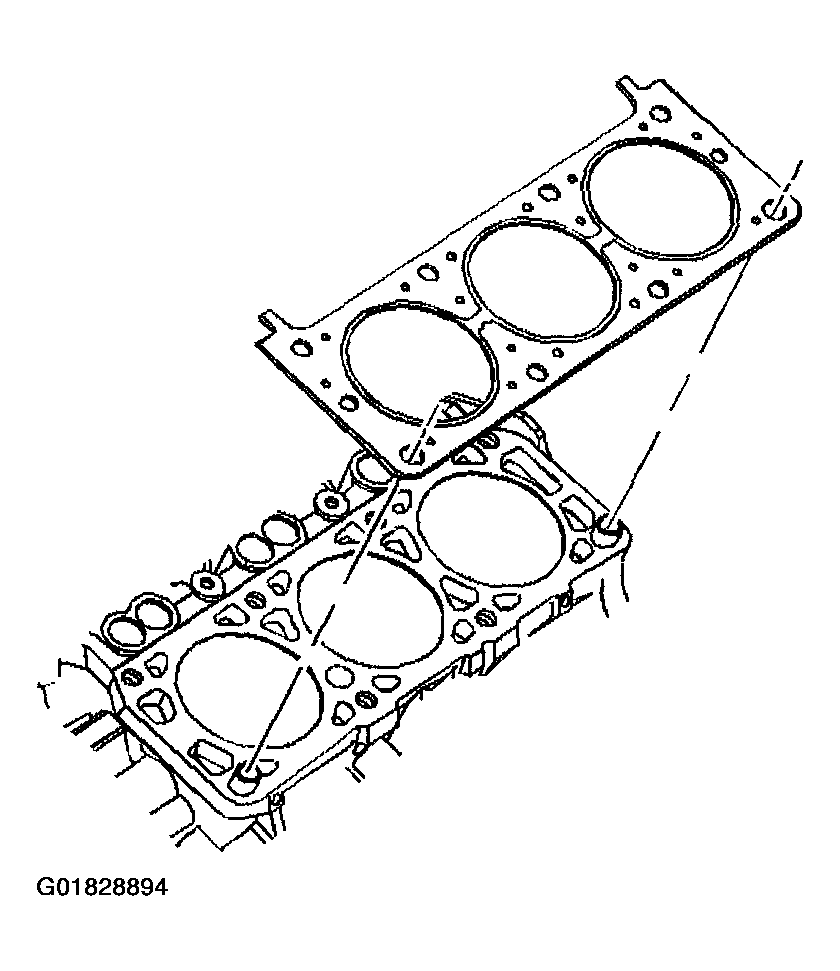

    Fig 2: Dowel Pins - Cylinder Head Locator
    G01828894Courtesy of GENERAL MOTORS CORP.
