Cylinder Head Installation - Left

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 36660-A Torque Angle Meter

Install the cylinder head locator dowel pins, if necessary.
Inspect the cylinder head locator dowel pins for proper installation.
Install the cylinder head gasket.

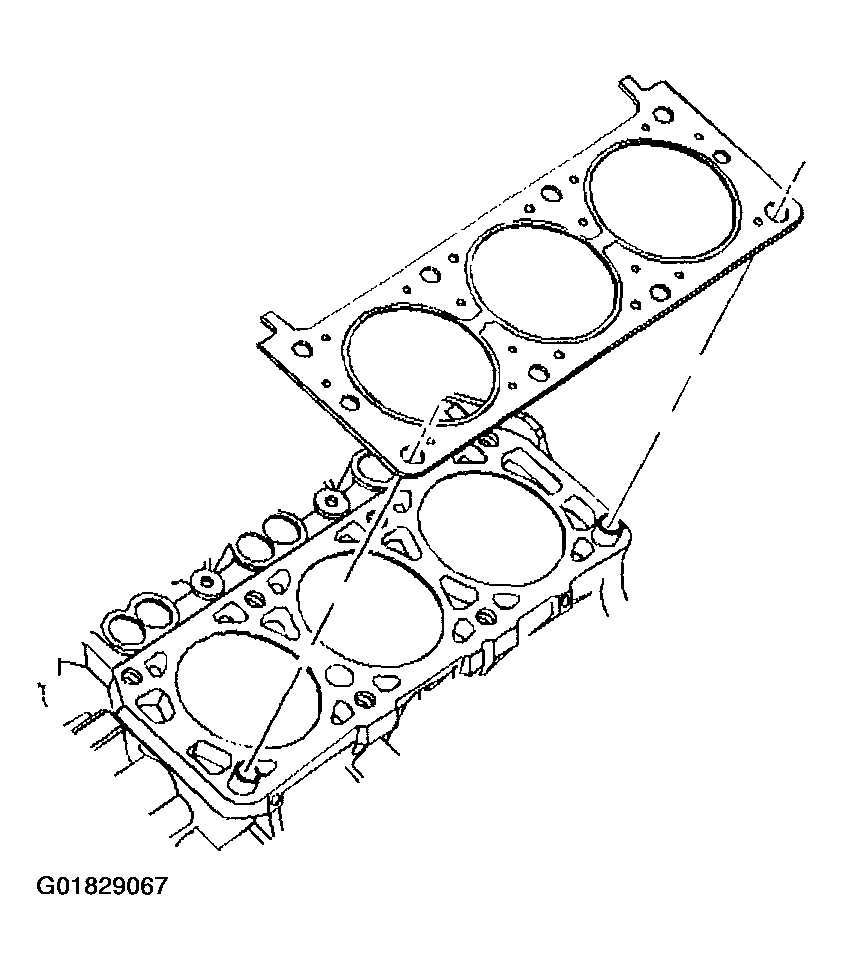

Fig 1: Cylinder Head Gasket
Courtesy of GENERAL MOTORS CORP.
Install the cylinder head.

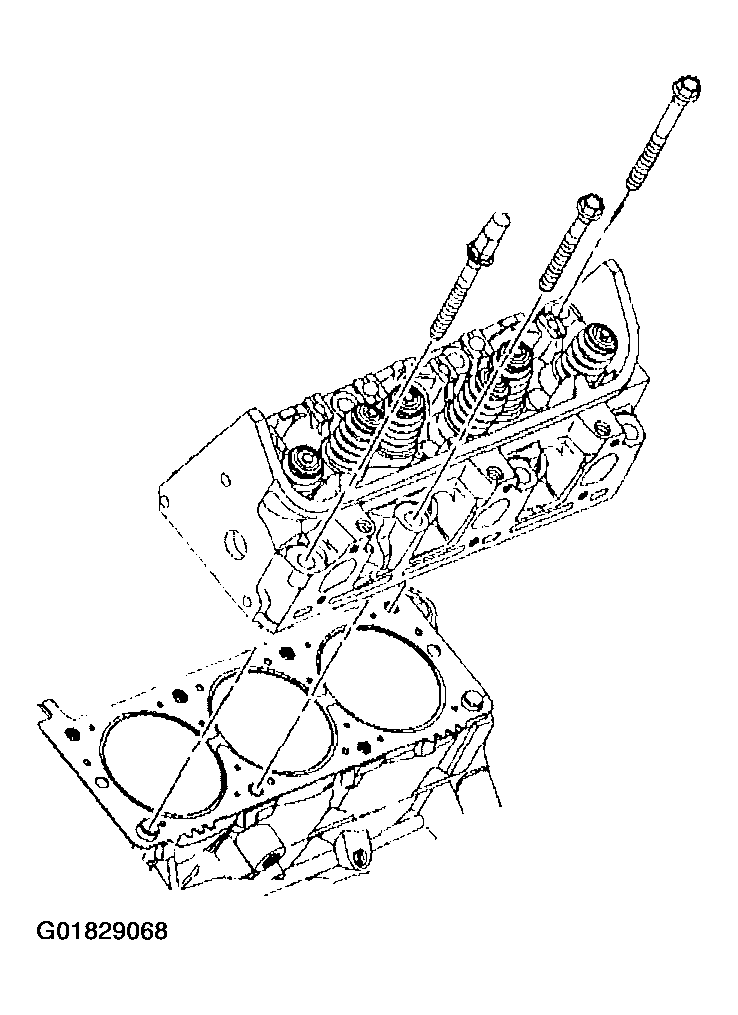

Fig 2: Cylinder Head
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install NEW cylinder head bolts.
Tighten

Tighten the cylinder head bolts in sequence to 60 N.m (44 lb ft). Turn the bolts an additional 95 degrees using the J 36660-A.

Fig 3: Cylinder Head Bolts Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
