Crankshaft Front Oil Seal Removal

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Pry out the crankshaft front oil seal using a suitable tool. Use care not to damage the engine front cover or the crankshaft.

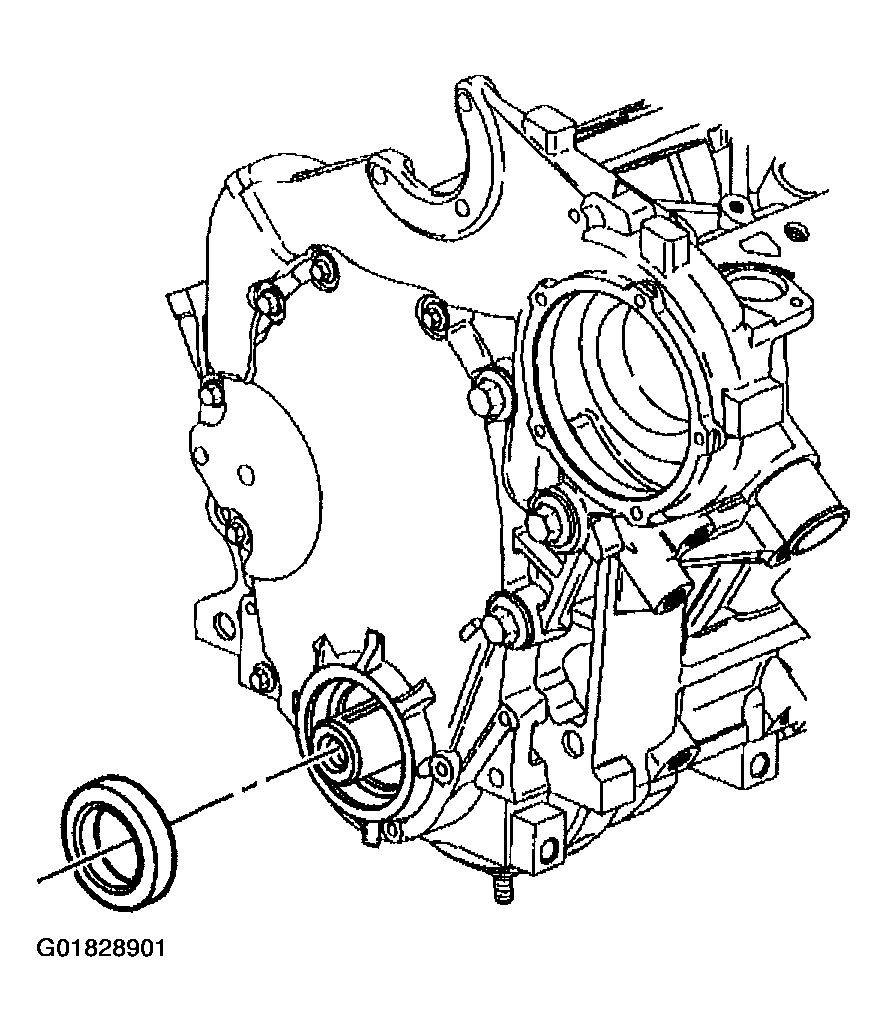

Fig 1: Crankshaft Front Oil Seal
G01828901Courtesy of GENERAL MOTORS CORP.
