Crankshaft Front Oil Seal Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 35468  Crankshaft Front Oil Seal Installer

  1. Align the J 35468  and the crankshaft front oil seal with the engine front cover and crankshaft.
  2. Install the crankshaft front oil seal using the J 35468  and a suitable tool.

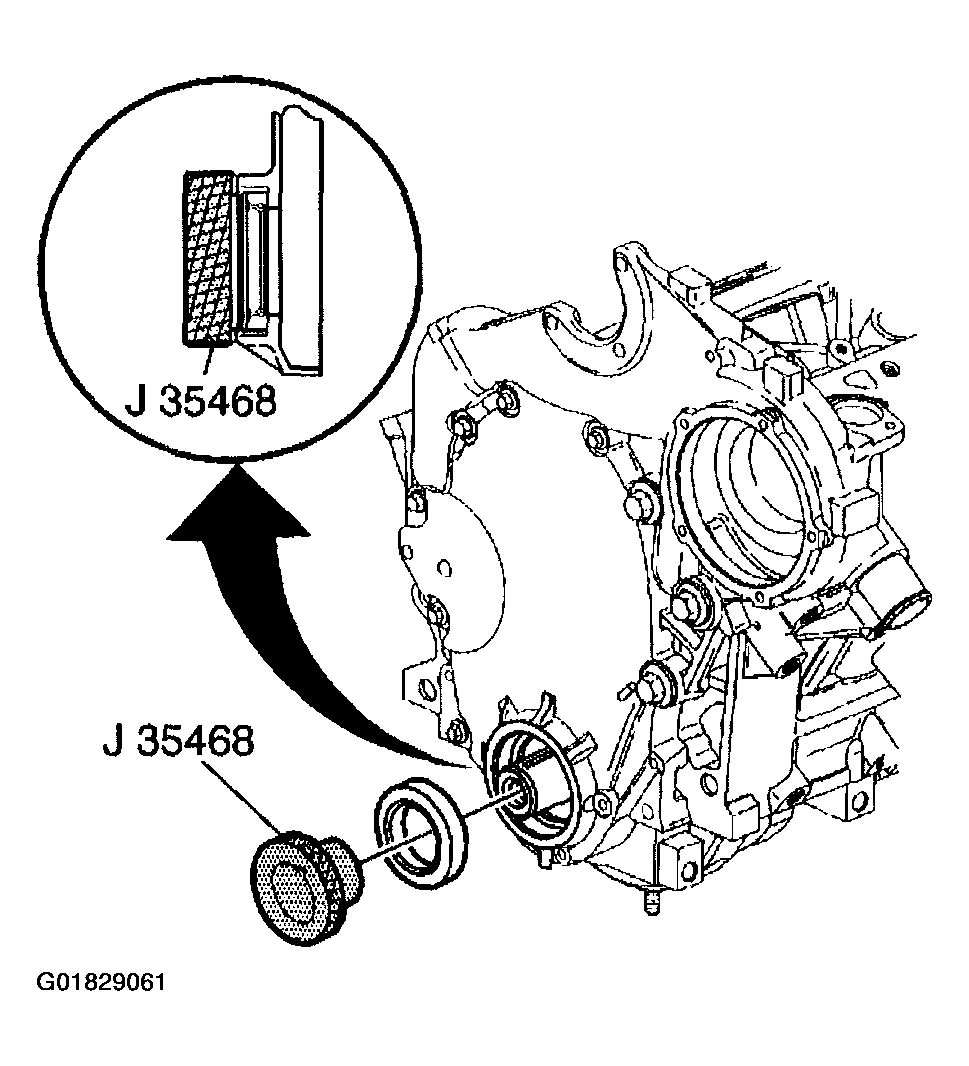

    Fig 1: Crankshaft Front Oil Seal
    G01829061Courtesy of GENERAL MOTORS CORP.
