Crankshaft Balancer Removal

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 24420-C  Crankshaft Balancer Puller

  1. Remove the crankshaft balancer retaining bolt and washer.

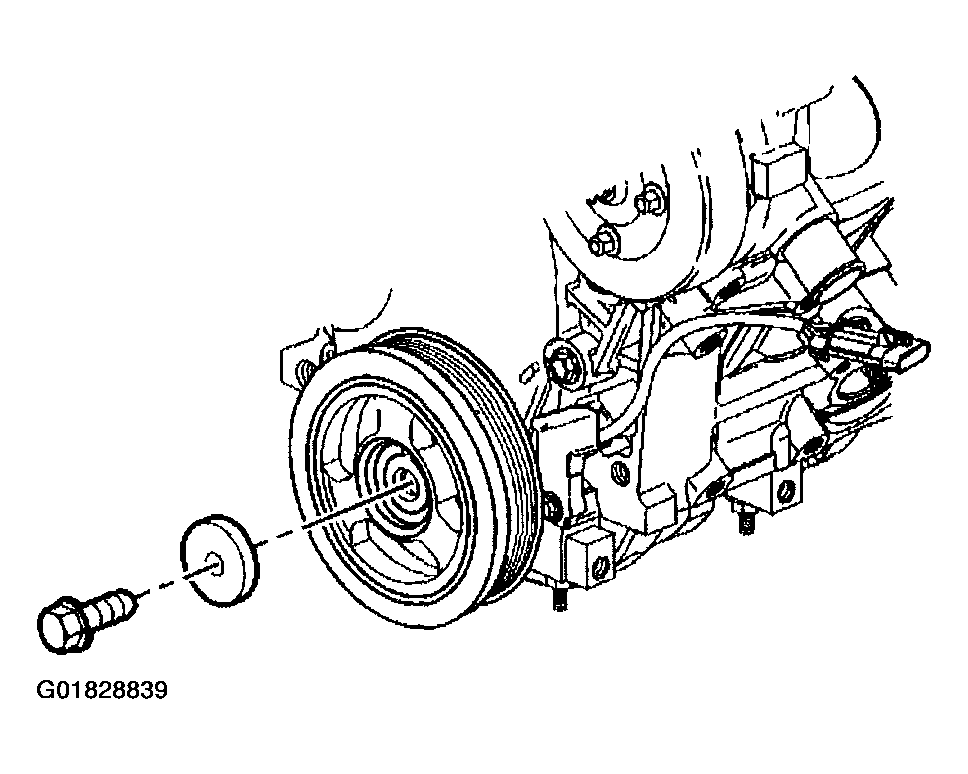

    Fig 1: Crankshaft Balancer Retaining Bolt & Washer
    G01828839Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft balancer using the J 24420-C  .

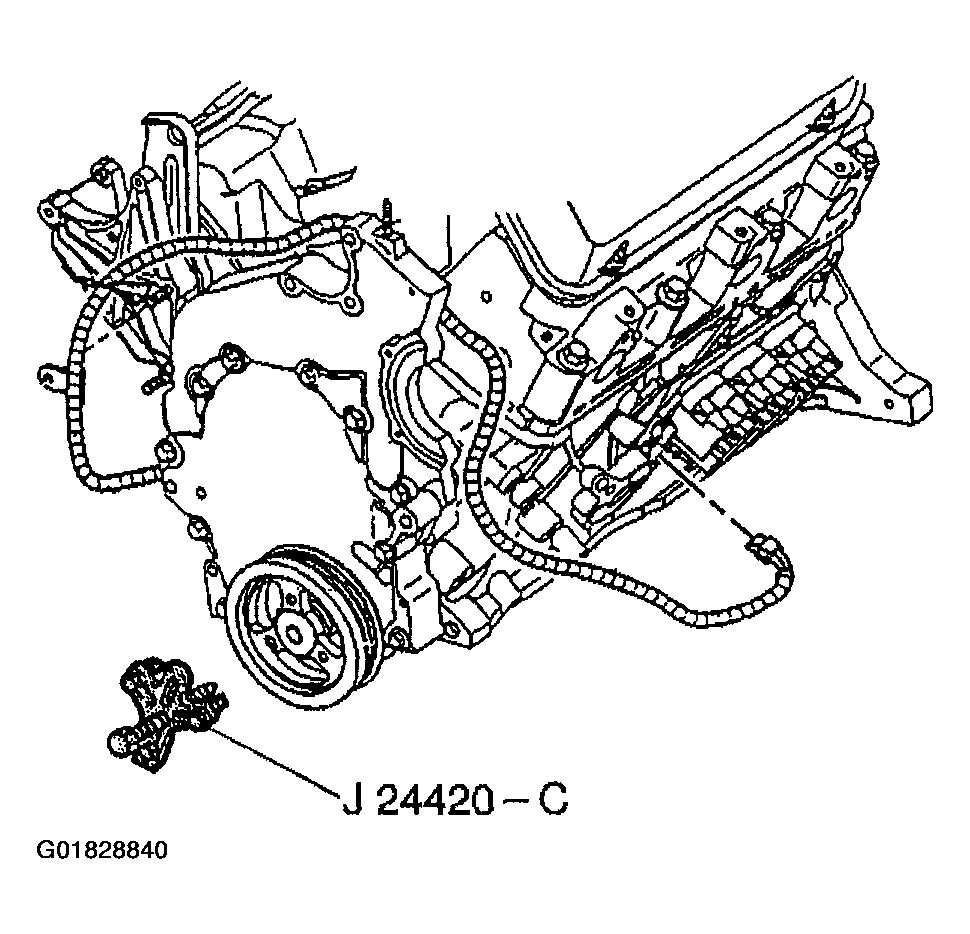

    Fig 2: Crankshaft Balancer
    G01828840Courtesy of GENERAL MOTORS CORP.
