Crankshaft Balancer Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 29113 Crankshaft Balancer Installer
J 36660-A Torque Angle Meter

Apply sealer GM P/N United States 12345739, GM P/N Canada 10953541 or the equivalent to the keyway of the crankshaft balancer.

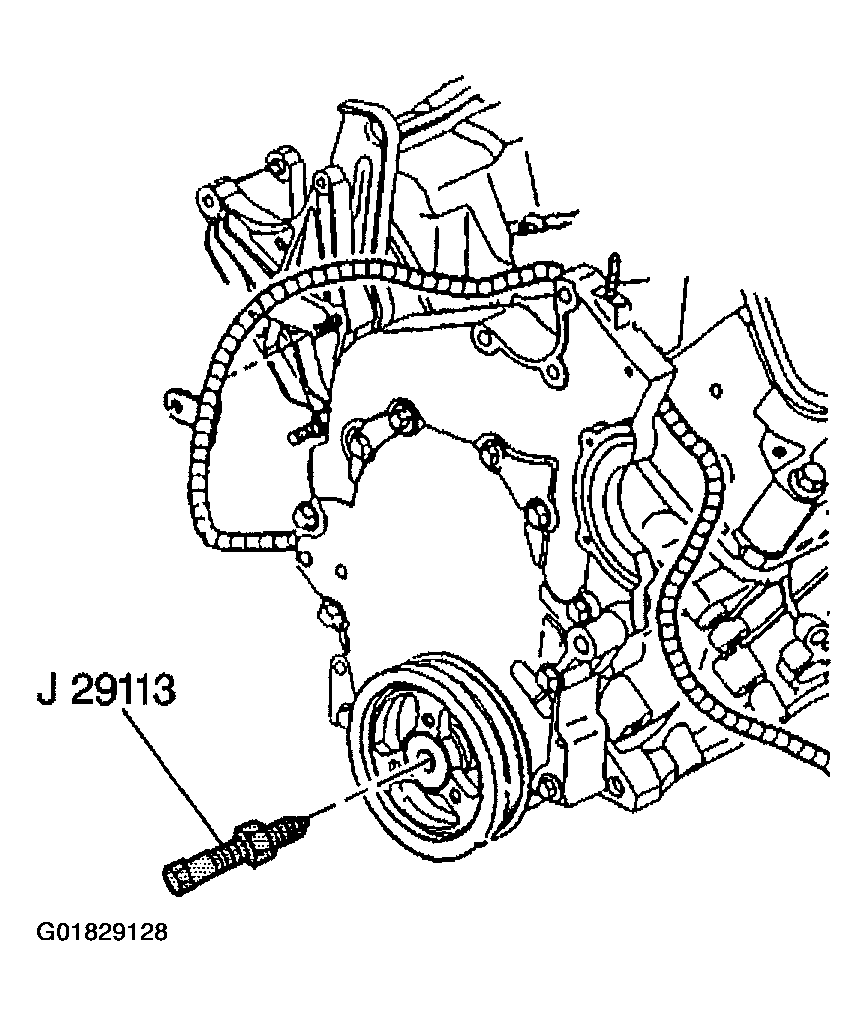

Fig 1: Pulling Crankshaft Balancer Into Position

Courtesy of GENERAL MOTORS CORP.

Place the crankshaft balancer into position over the key in the crankshaft.
Install the J 29113 onto the crankshaft.
Pull the crankshaft balancer into position.
Remove the J 29113 from the crankshaft balancer.
NOTE: Do NOT use a power-assisted tool with the special tool in order to remove or install this component. You cannot properly control the alignment of this component using a power-assisted tool, and this can damage the component.

NOTE: Refer to FASTENER NOTICE .

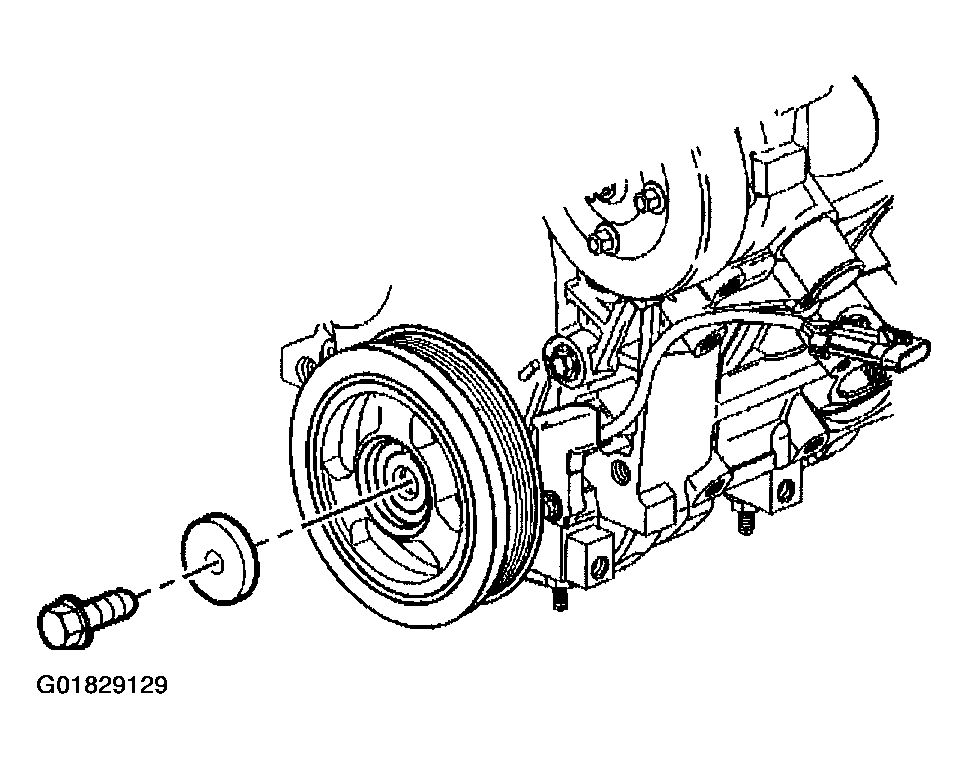

Fig 2: Crankshaft Balancer Washer & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the crankshaft balancer washer and bolt.
Tighten
- Tighten the crankshaft balancer bolt a first pass to 70 N.m (52 lb ft).
- Tighten the crankshaft balancer bolt a second pass to 85 degrees using the J 36660-A.
