Camshaft Removal

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft position sensor and sensor bolt.

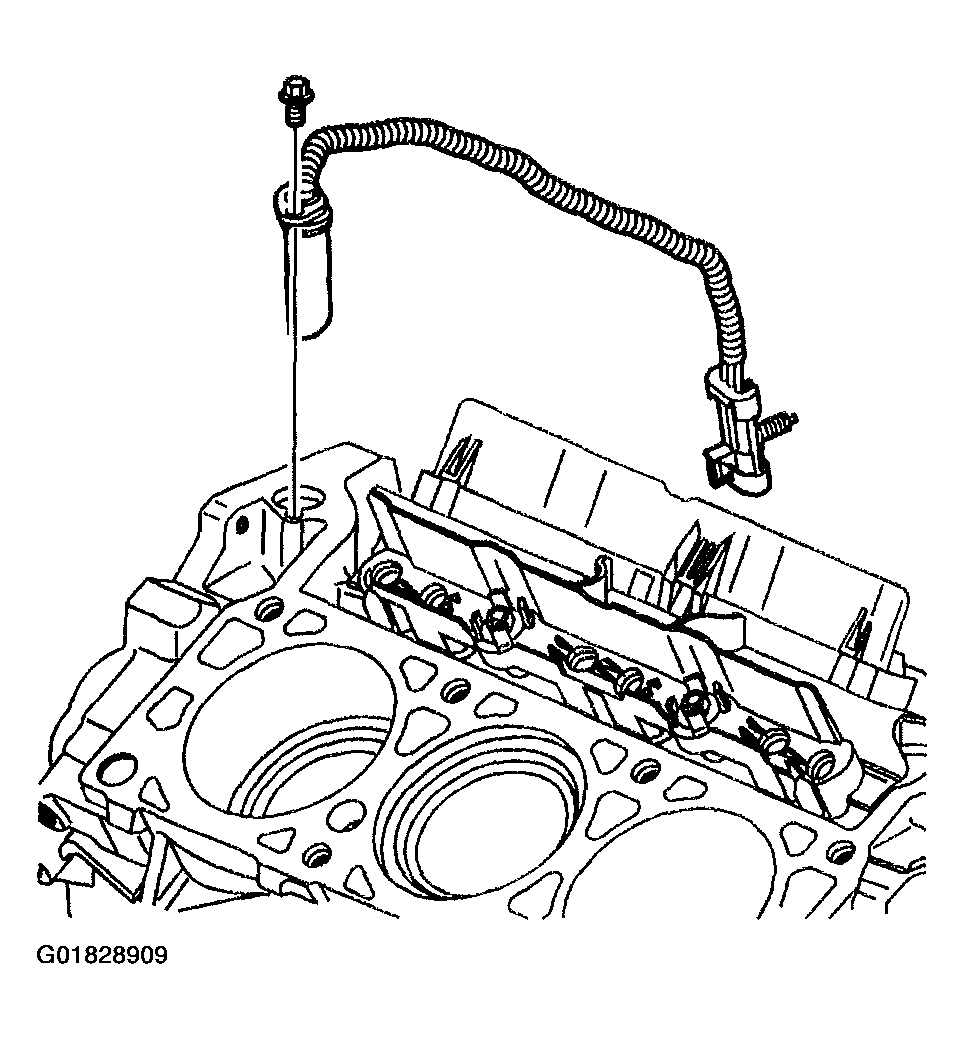

    Fig 1: Camshaft Position Sensor & Sensor Bolt
    G01828909Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft thrust plate screws.
  3. Remove the camshaft thrust plate.

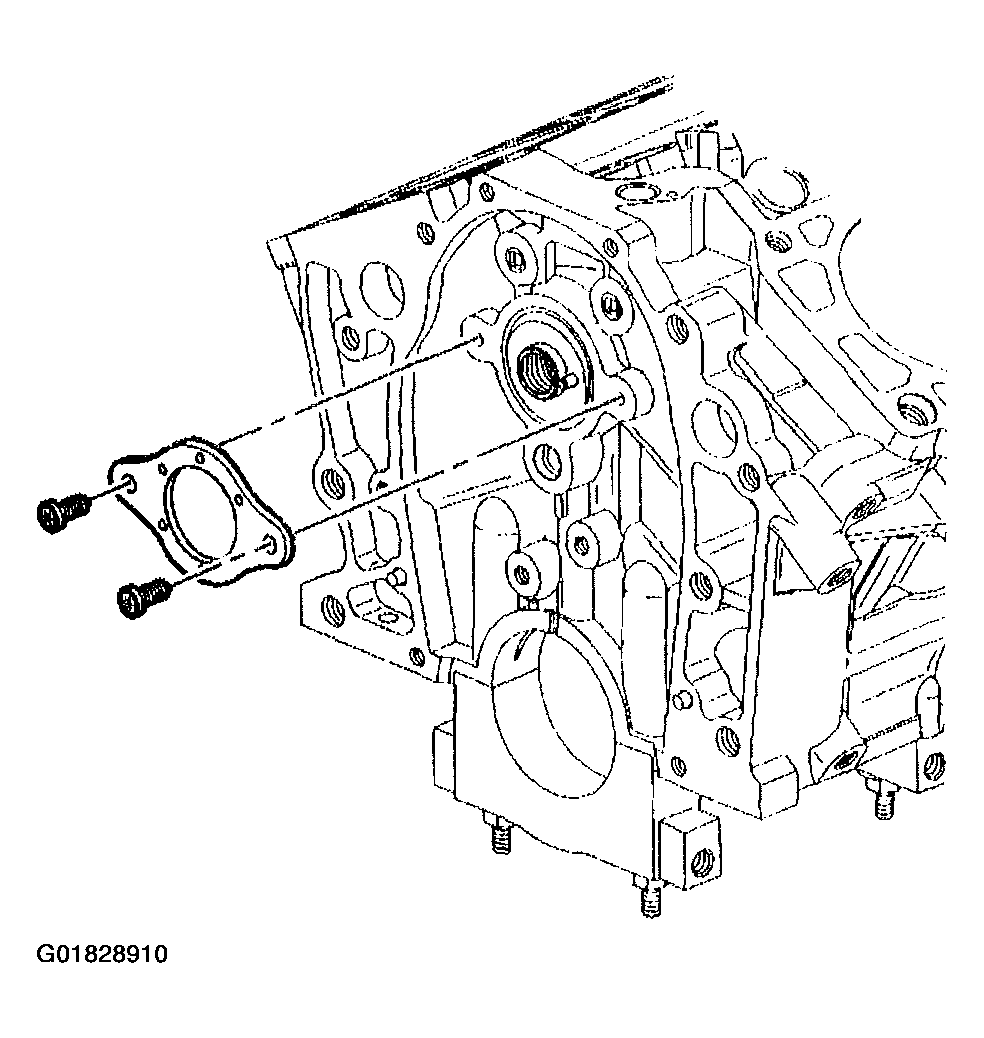

    Fig 2: Camshaft Thrust Plate
    G01828910Courtesy of GENERAL MOTORS CORP.
    NOTE: All camshaft journals are the same diameter, so care must be used in removing or installing the camshaft to avoid damage to the camshaft bearings.
  4. Complete the following steps in order to remove the camshaft:
    1. Install a large screwdriver in the camshaft bolt hole. Do not damage the threads.
    2. Carefully rotate and pull the camshaft out of the camshaft bearings.

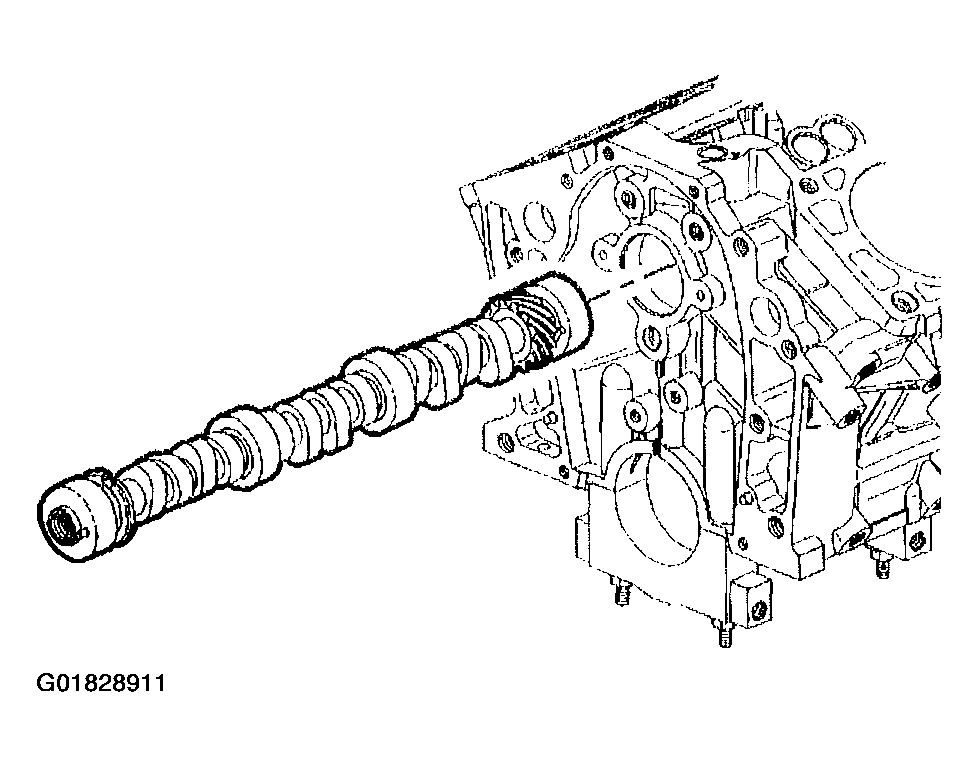

    Fig 3: Camshaft
    G01828911Courtesy of GENERAL MOTORS CORP.
