Camshaft Bearing Installation

Tools Required

J 33049  Camshaft Bearing Remover/Installer

1. Assemble the J 33049  according to the manufacturer's instructions.

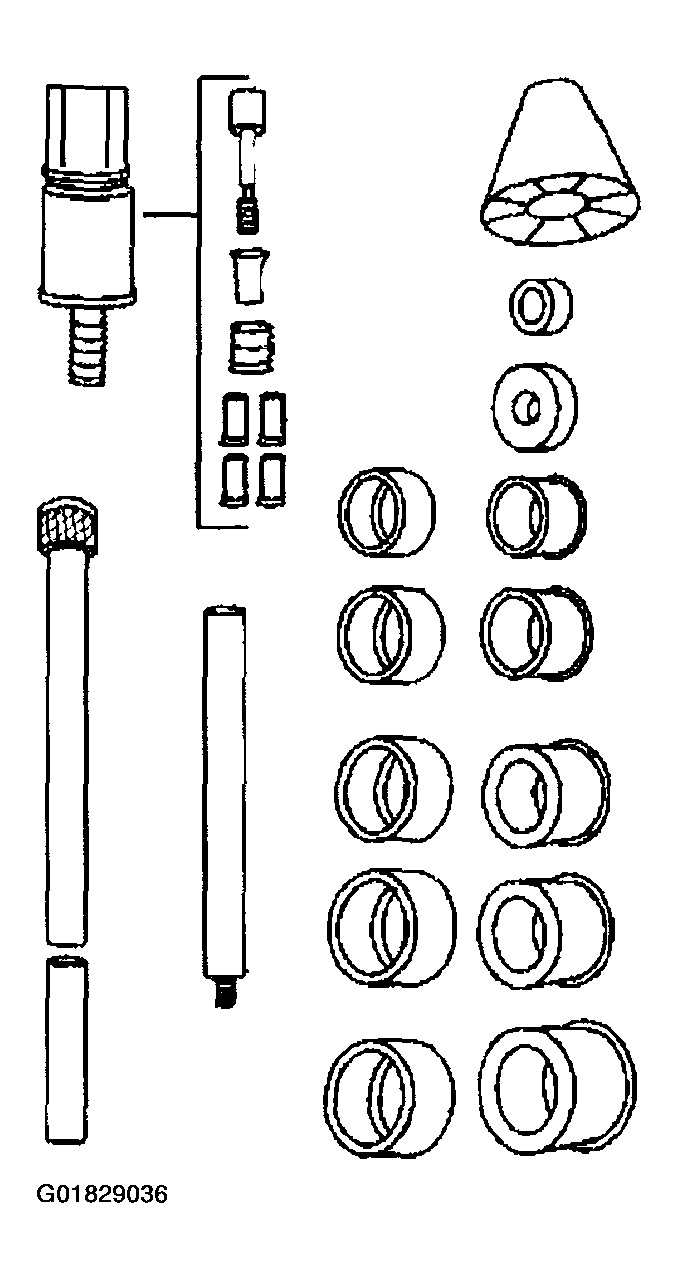

   Fig 1: Assembling J 33049

   Courtesy of GENERAL MOTORS CORP.
   NOTE: Severe engine damage may result if the oil holes are not correctly aligned.
2. Install the camshaft bearings in the following order:
   1. Index the camshaft bearing oil holes with the engine block oil passages.

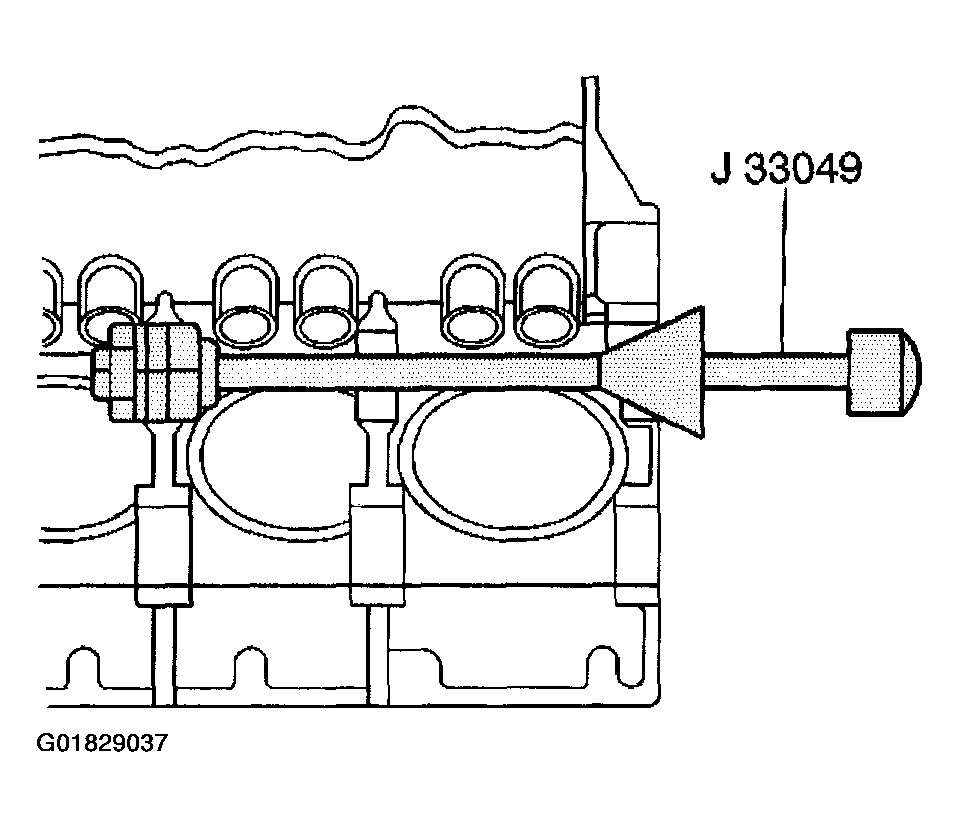

   Fig 2: Placing Bearing On J 33049
   Courtesy of GENERAL MOTORS CORP.
   2. Place the bearing on the J 33049  .
   3. Install the third camshaft bearing.
   4. Install the second camshaft bearing.
   5. Install the outer camshaft bearings.
3. Apply sealer GM P/N United States 12377901, GM P/N Canada 10953504 or the equivalent to the camshaft rear bearing hole plug.
4. Install the camshaft rear bearing hole plug.

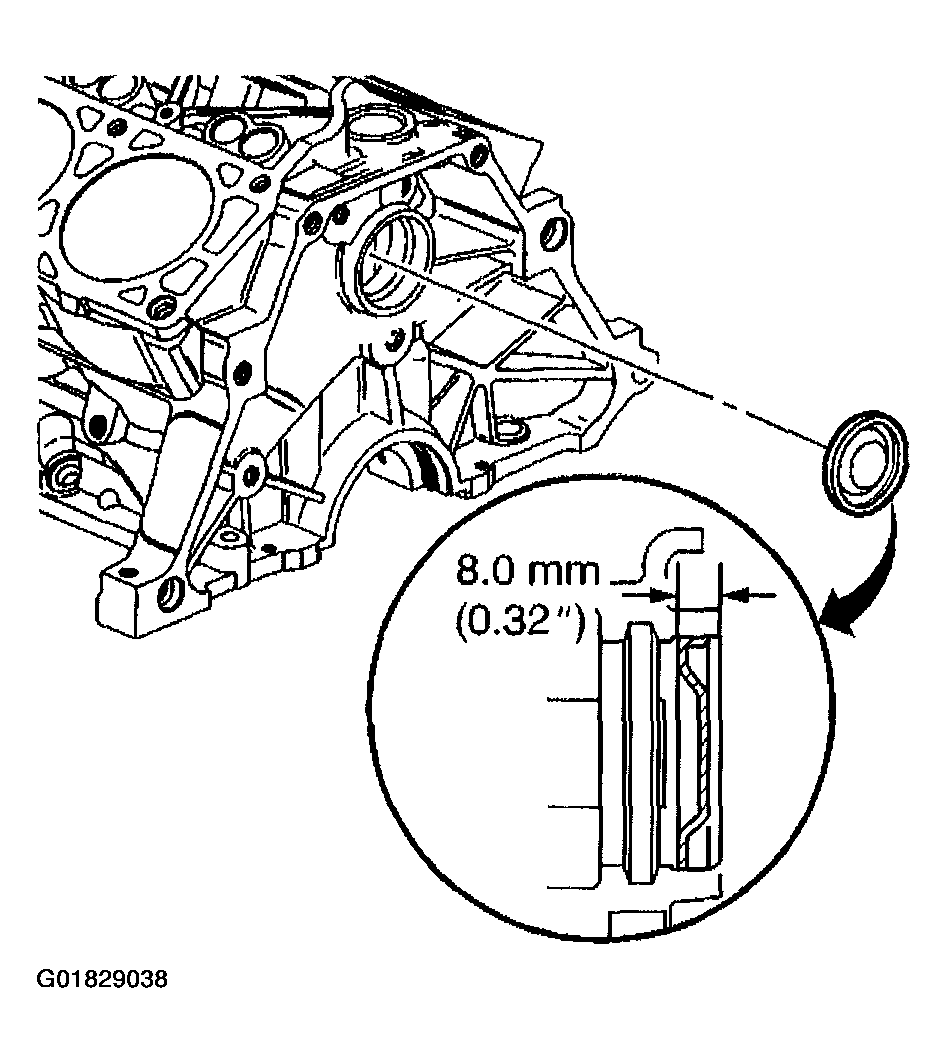

   Fig 3: Installing Camshaft Rear Bearing Hole Plug

   Courtesy of GENERAL MOTORS CORP.
