Lifting Vehicle With A Suspension-Contact Lift

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

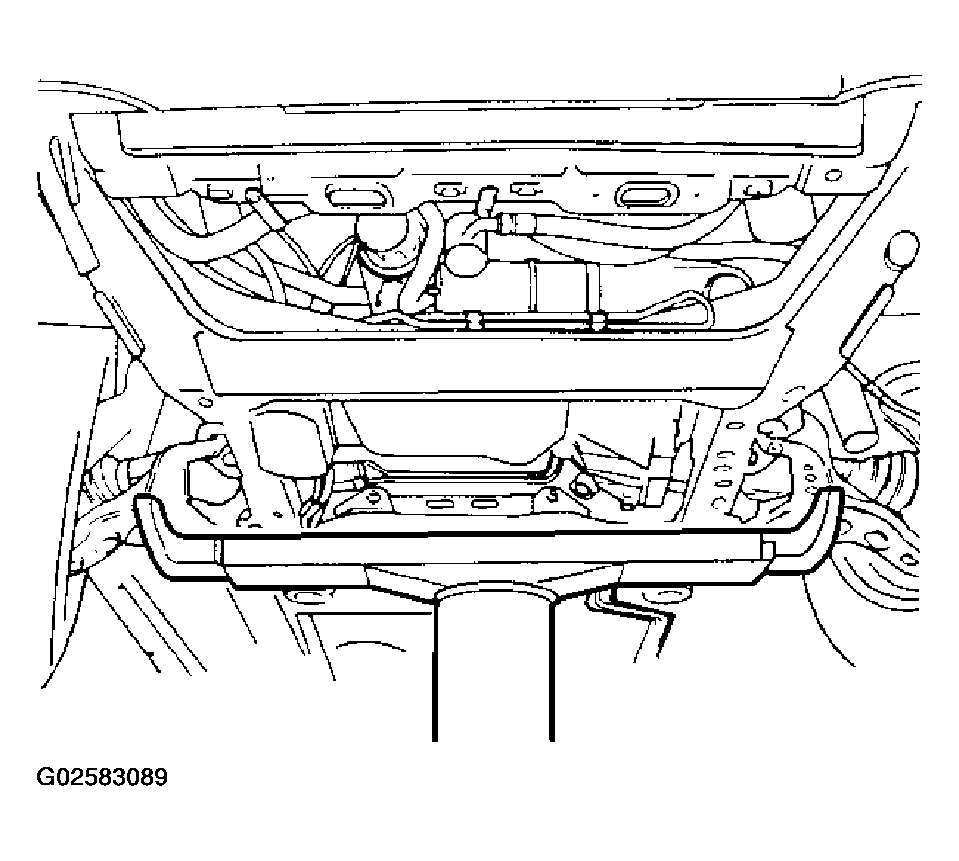

Fig 1: Front Lift
G02583089Courtesy of GENERAL MOTORS CORP.
NOTE: Ensure that the front suspension-contact lift points contact the lower control arms ONLY where identified. Failure to follow this precautionary step could result in damage to the lower control arm stabilizer link bracket.

When lifting the vehicle with a suspension-contact lift, place the front post lift points at the lower control arms.

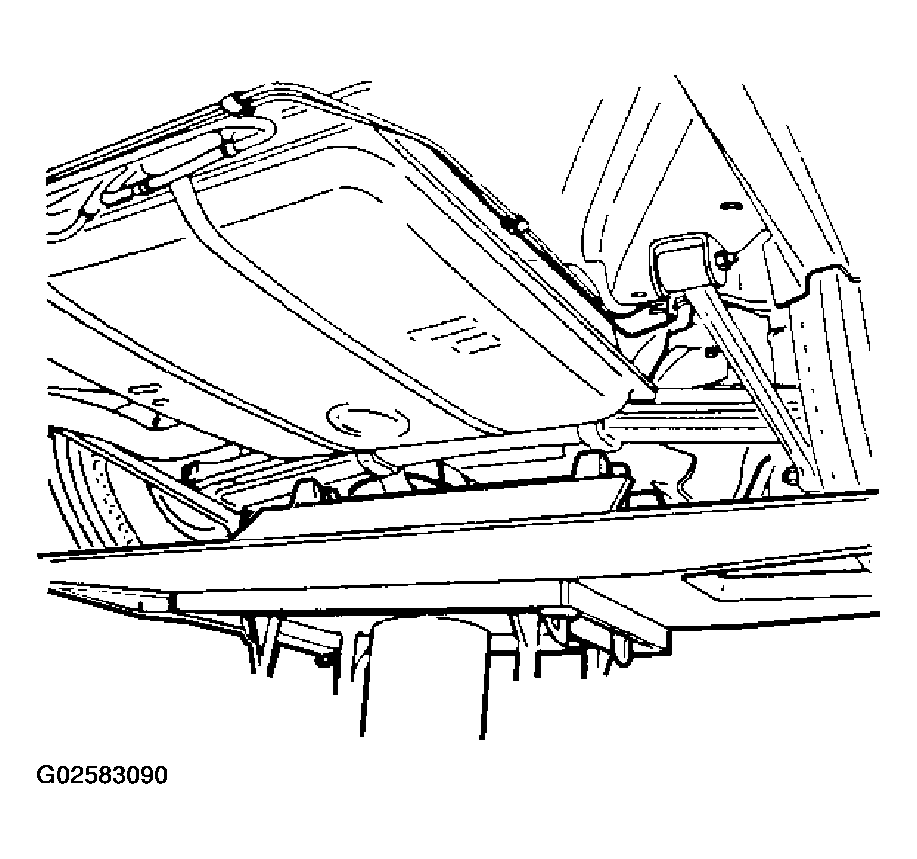

Fig 2: Rear Lift
G02583090Courtesy of GENERAL MOTORS CORP.

Lift the rear of the vehicle with the rear post lift points ONLY at the rear wheels.
