Lifting Vehicle With A Floor Jack

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

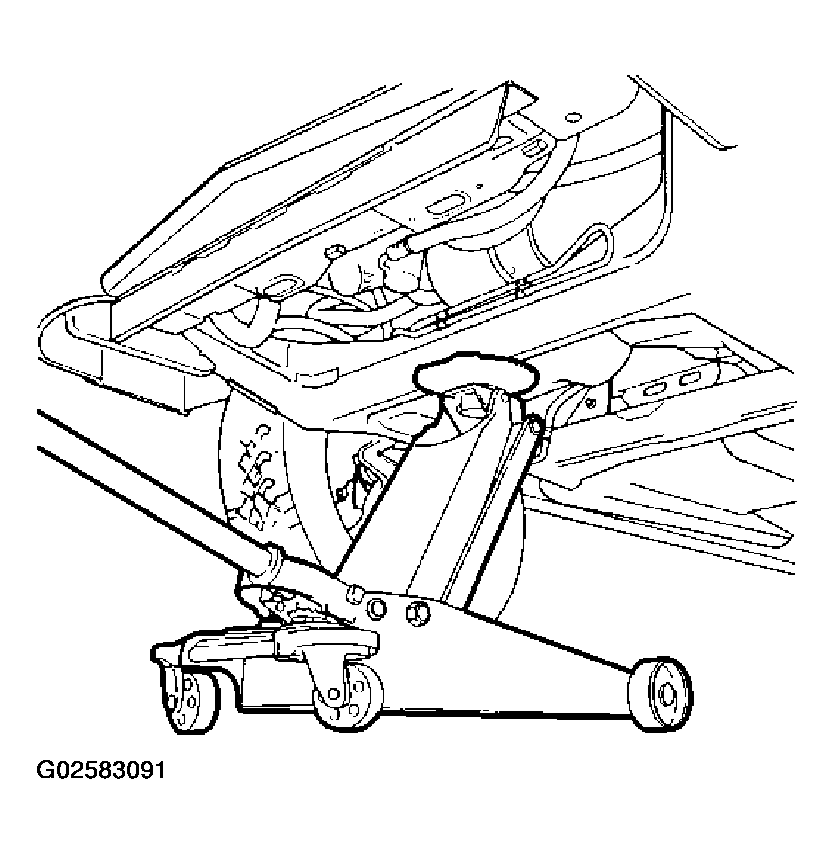

Fig 1: Under Front Frame

Courtesy of GENERAL MOTORS CORP.

When lifting front the vehicle with a floor jack, place the floor jack lift pad at the center of the front frame rail.

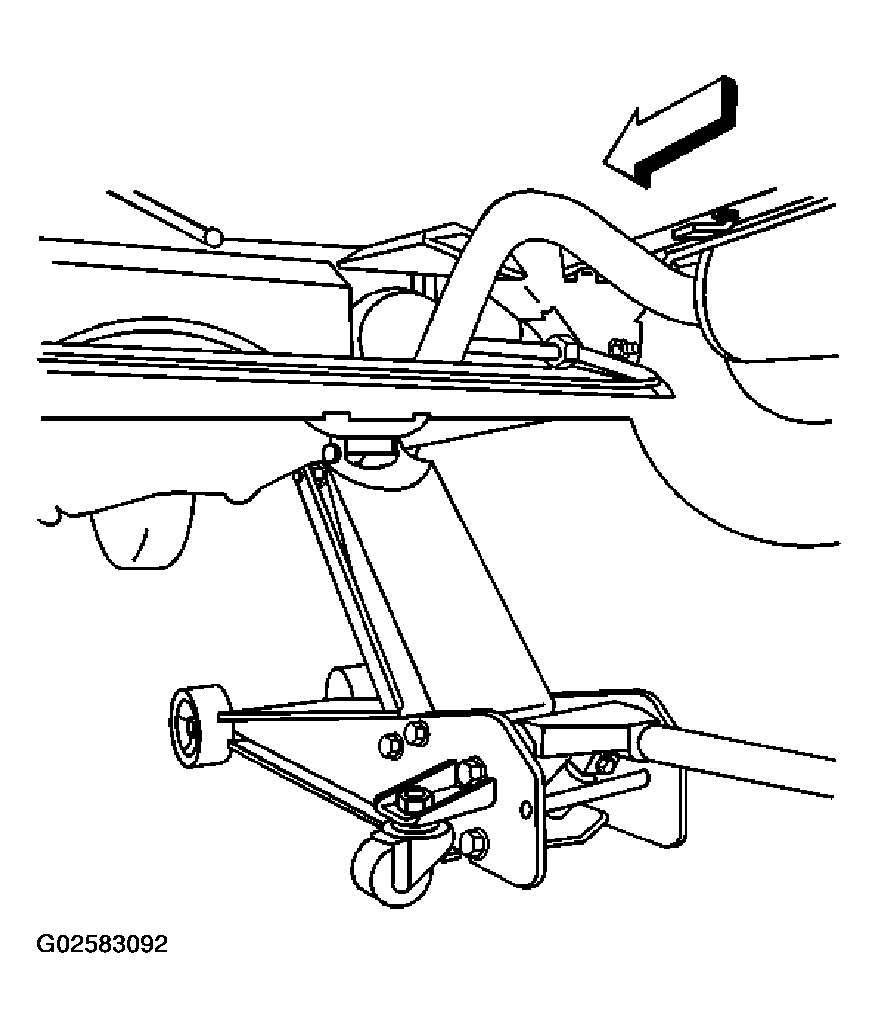

Fig 2: Under Rear Axle

Courtesy of GENERAL MOTORS CORP.

Lift the rear of the vehicle by placing the floor jack lift pad at the center of the rear suspension.
