Drive Belt Tensioner Installation - Left (L67)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the drive belt tensioner nut.

    Tighten

    Tighten the nut to 50 N.m (37 Ib. ft).

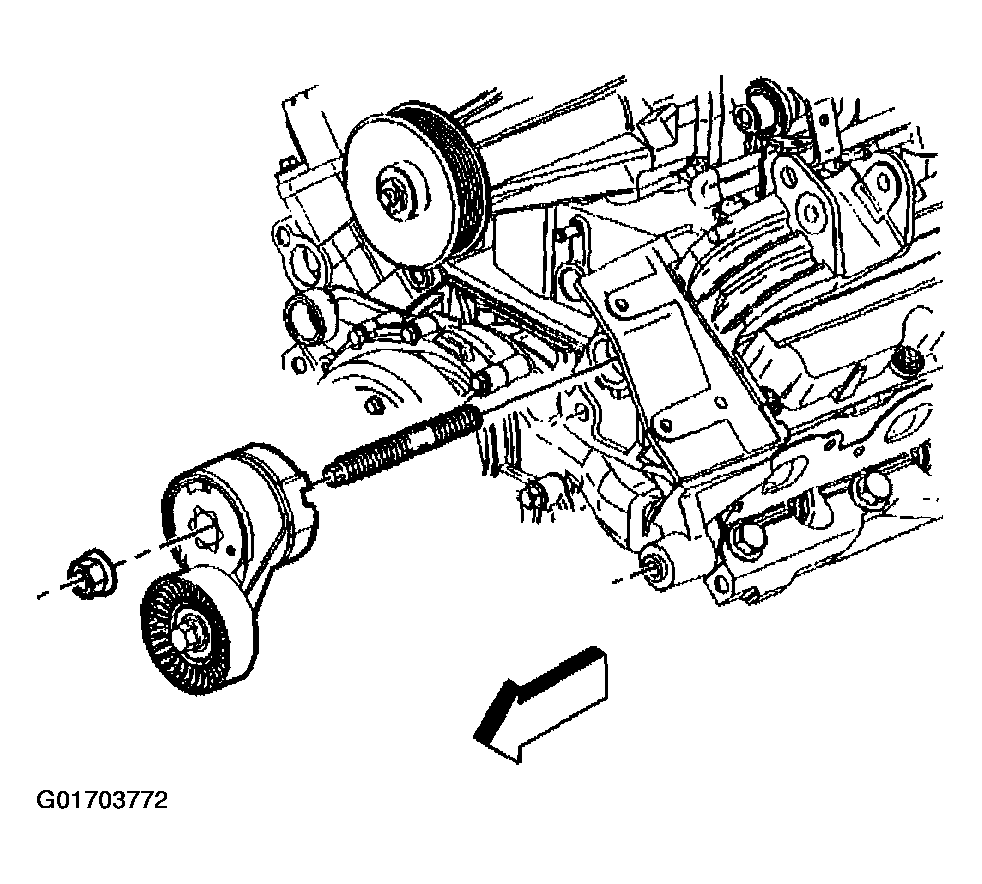

    Fig 1: Drive Belt Tensioner & Nut
    G01703772Courtesy of GENERAL MOTORS CORP.
