Turn Signal and Multifunction Switch Assembly - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SIR CAUTION .

Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS - DISASSEMBLE - Off Vehicle .

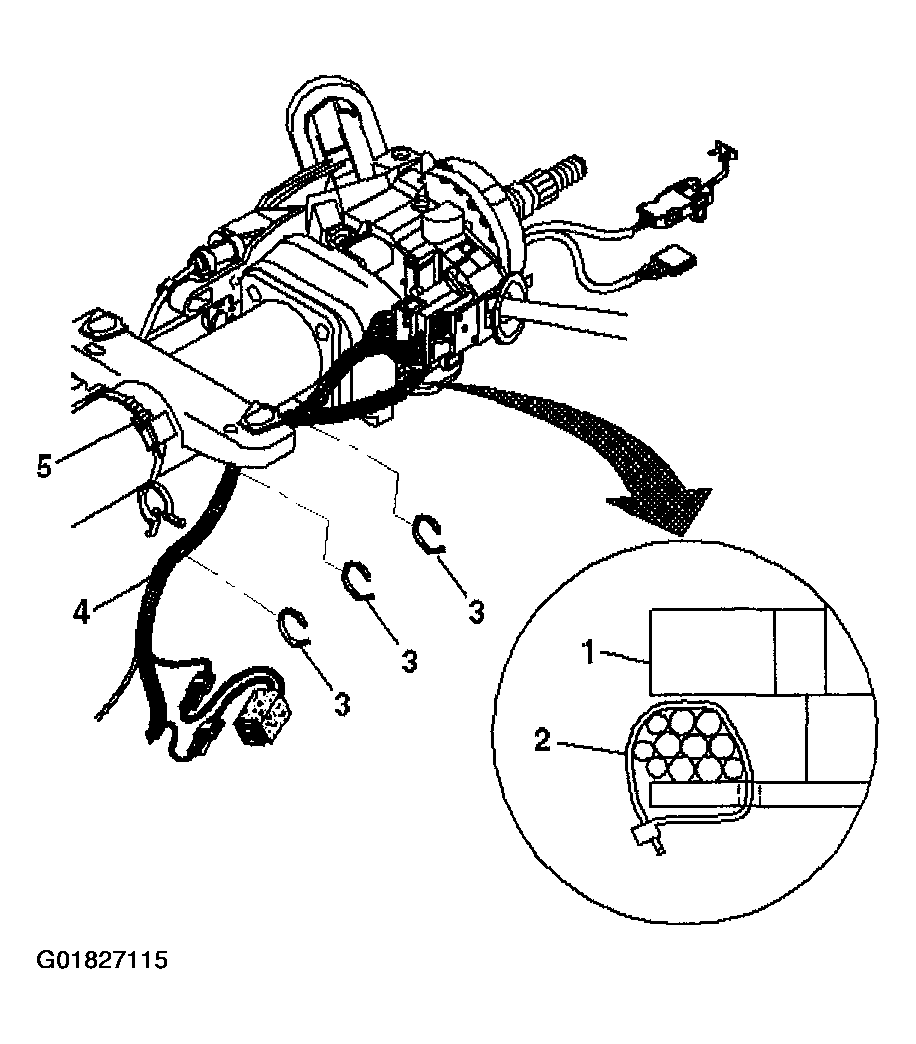

Fig 1: Wire Harness Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the 3 wire harness straps (3) from the wire harness assembly (4).
Remove the wire harness strap (2) from the upper tilt head assembly (1).
Pop the wire harness assembly (4) out of the wire harness strap (5).

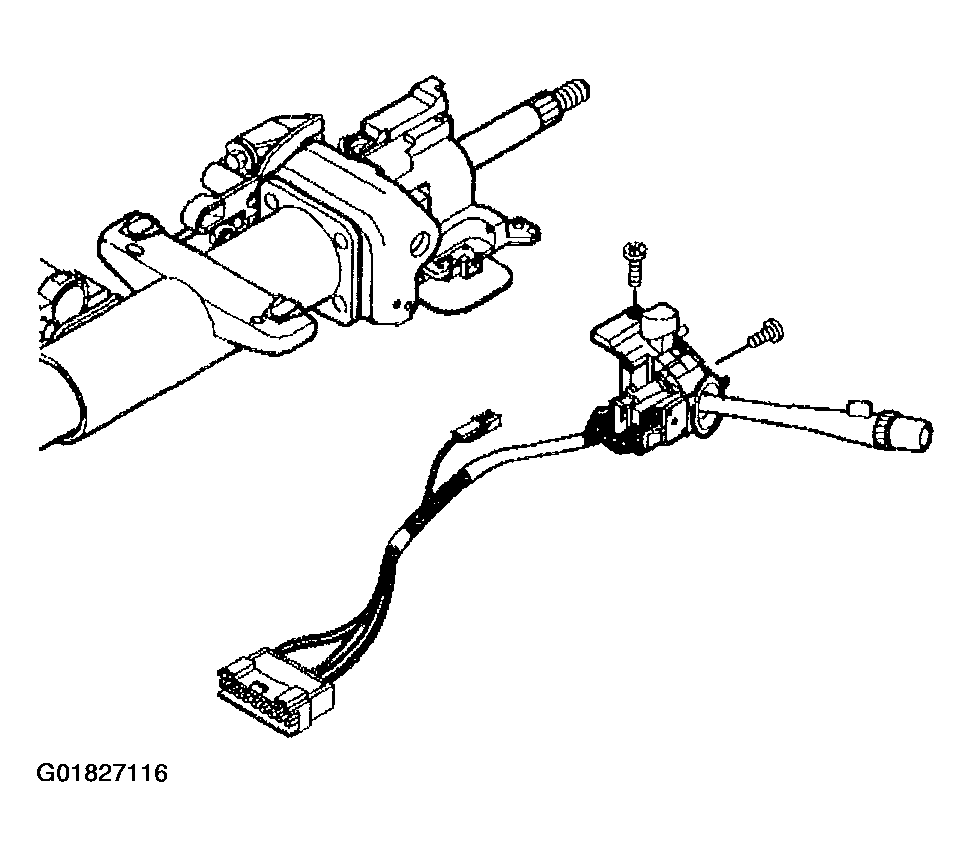

Fig 2: Turn Signal & Multifunction Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the 2 pan head tapping screws from the turn signal and multifunction switch assembly.
Remove the turn signal and multifunction switch assembly.
If necessary, disconnect the turn signal and multifunction switch assembly connector (s).
