Turn Signal and Multifunction Switch Assembly - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

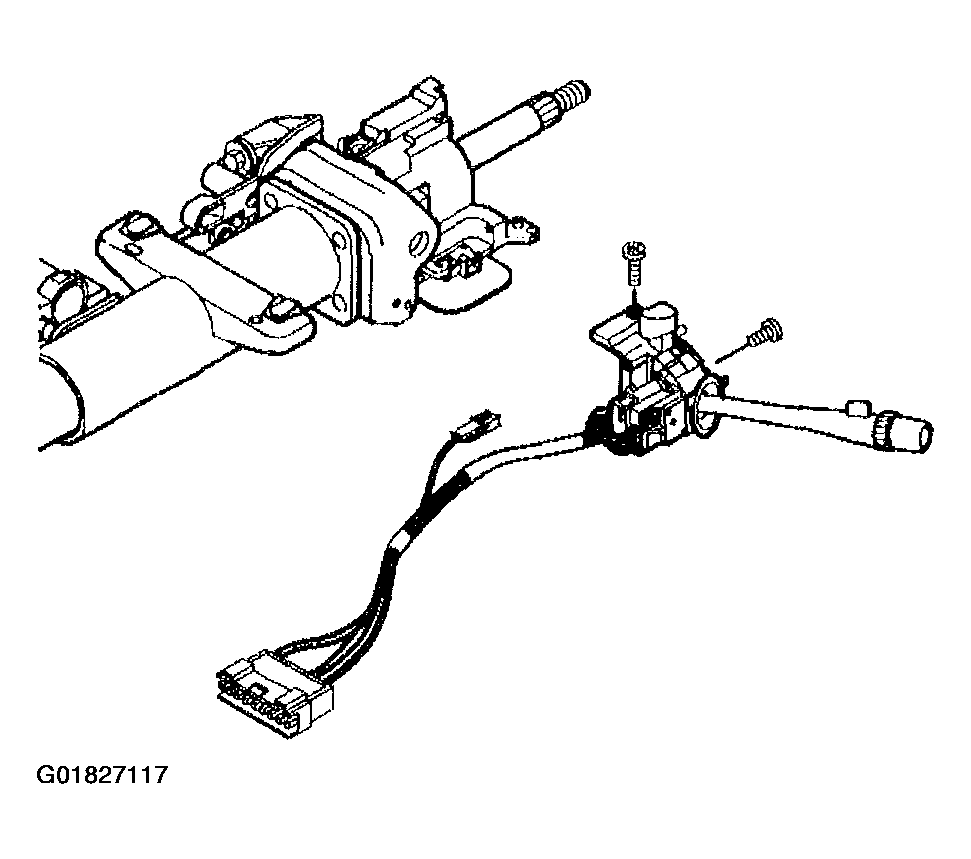

Fig 1: Turn Signal & Multifunction Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Install the turn signal and multifunction switch assembly and secure by using 2 pan head tapping screws.
Tighten

Tighten the screws to 7 N.m (62 lb in).
If necessary, connect the connector (s) of the turn signal and multifunction switch assembly.
CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .

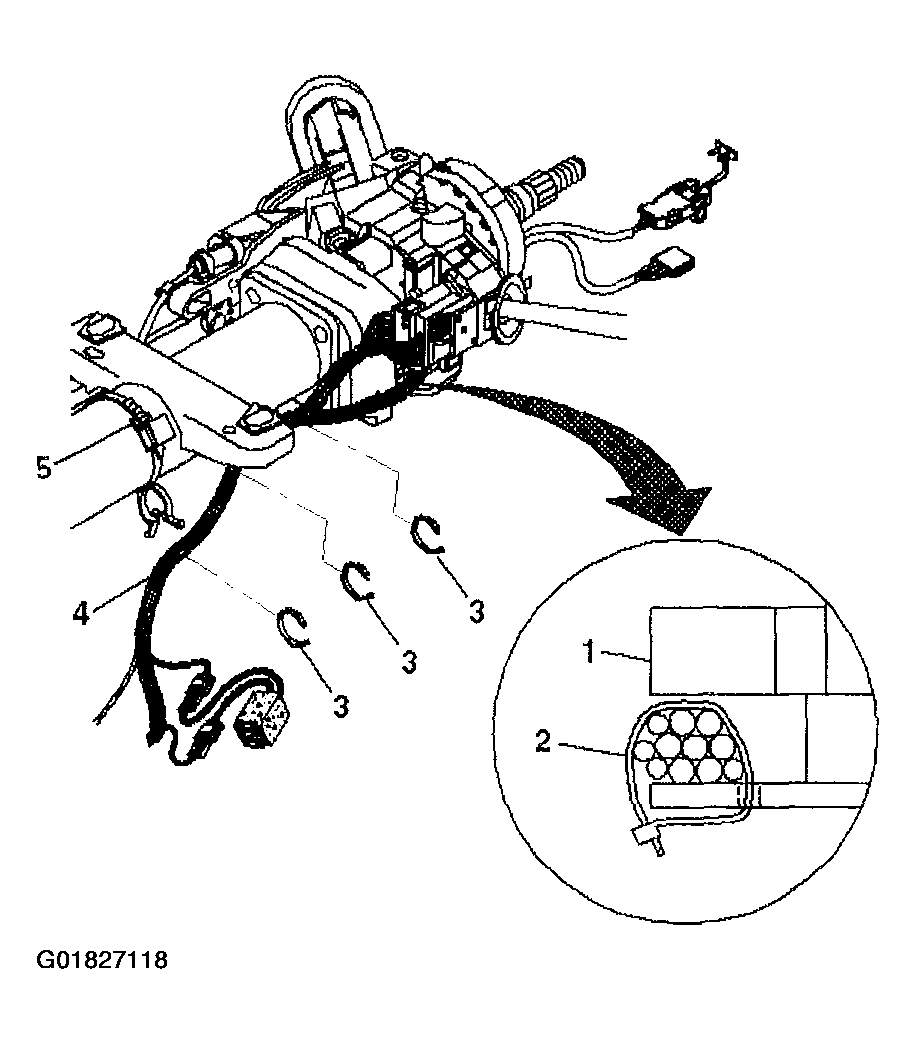

Fig 2: Wire Harness Assembly

Courtesy of GENERAL MOTORS CORP.

Install the wire harness assembly (4) into the wire harness strap (5).
Install the wire harness strap (2) onto the upper tilt head assembly (1).
Install the 3 wire harness straps (3) onto the wire harness assembly (4).
Install the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS - Assemble - Off Vehicle .
Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
