Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .

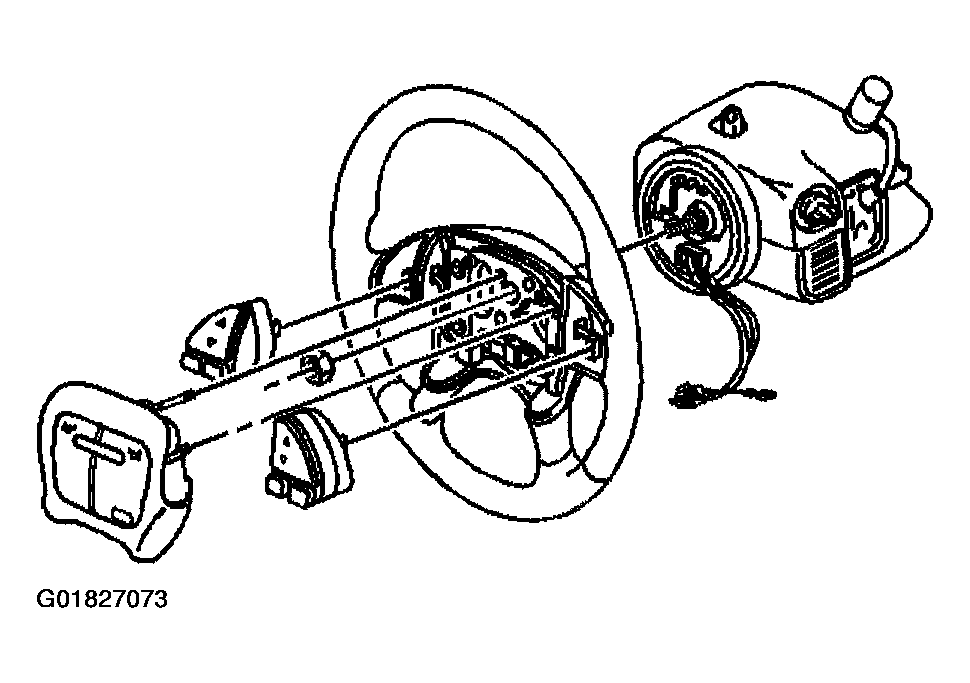

    2. Fig 1: Steering Wheel Control Switch Assembly (Pontiac)
    G01827073Courtesy of GENERAL MOTORS CORP.
  2. Remove the steering wheel controls wire harness from the retainers in the steering wheel.
  3. Remove the steering wheel control switch from the steering wheel by pushing on the back of the switch through the opening in the steering wheel.
  4. Disconnect the electrical connector.
  5. Remove the switch from the vehicle.
