Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering wheel controls switch to the vehicle.

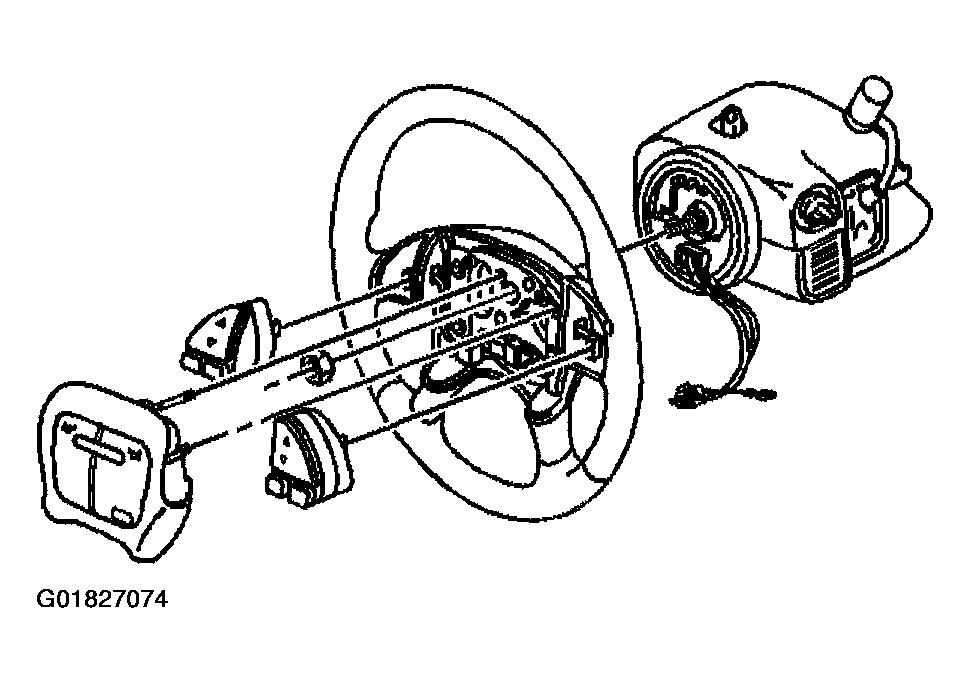

    Fig 1: Steering Wheel Control Switch Assembly (Pontiac)
    G01827074Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector.
  3. Push the steering wheel controls switch into the steering wheel.
  4. Install the steering wheel controls wire harness to the retainers in the steering wheel.
  5. Install the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
