Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

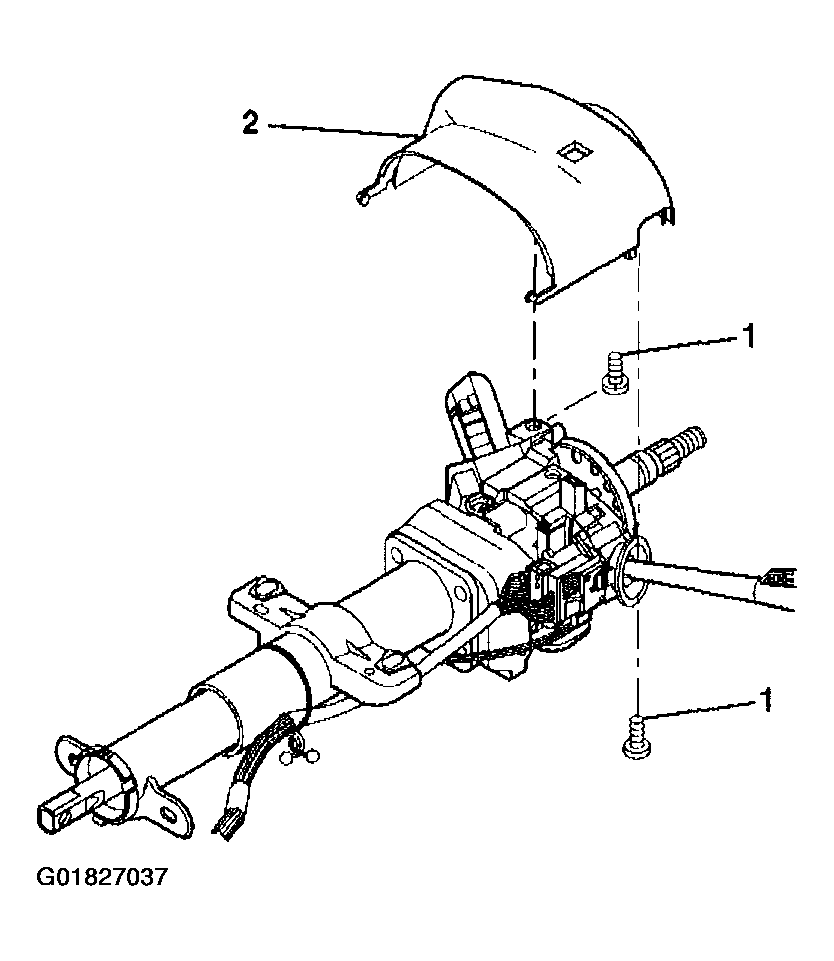

    Fig 1: Upper Trim Cover
    G01827037Courtesy of GENERAL MOTORS CORP.
  1. Install the upper trim cover (2) to the steering column.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the steering column upper trim cover screws.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  3. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.
  4. Tilt the lower trim cover up and slide the lower trim cover until the locking tabs snap into the tab slots.

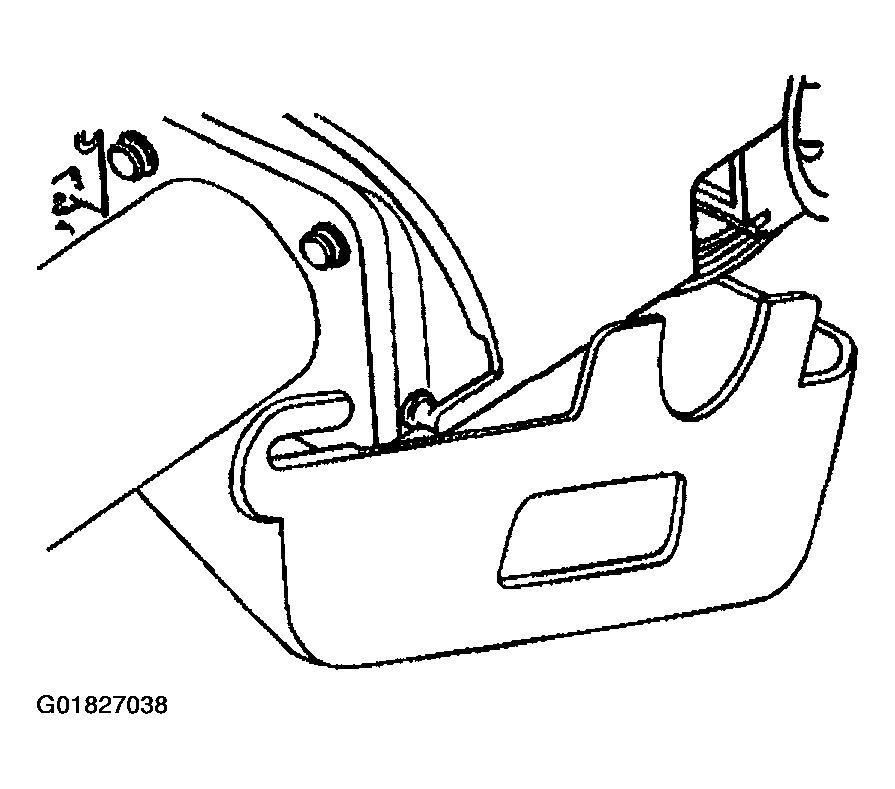

    Fig 2: Locking Tabs
    G01827038Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column lower trim cover screws.

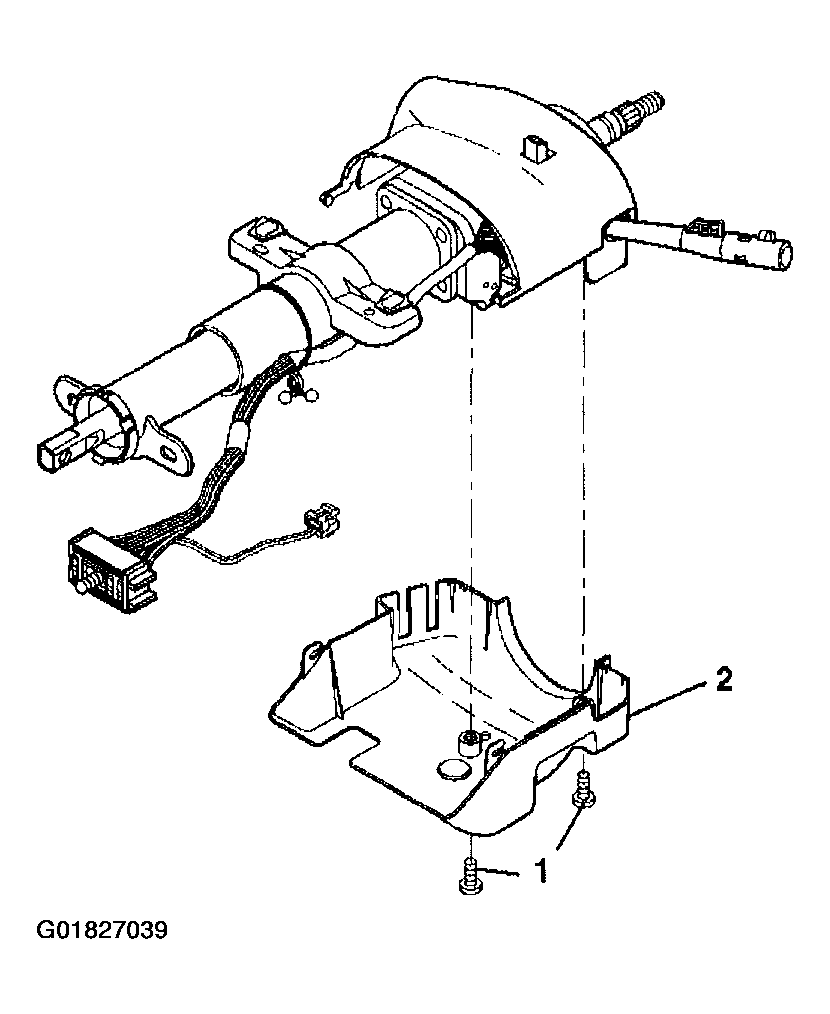

    Fig 3: Lower Trim Cover
    G01827039Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the screws to 3.5 N.m (31 lb in).

  6. Install the tilt lever. Refer to TILT LEVER REPLACEMENT - On Vehicle .
  7. Install the steering wheel. Refer to Steering Wheel Replacement .
  8. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
