Steering Column Trim Covers - Assemble - Off Vehicle: Notes

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the shift lever seal (2) onto the shift lever assembly (4).
NOTE: Refer to FASTENER NOTICE .
Install the shift lever assembly (4) and secure it with the shift lever screw (3).
Tighten

Tighten the screw to 1.5 N.m (13 lb in).

Fig 1: Shift Lever Assembly
Courtesy of GENERAL MOTORS CORP.
If necessary, install the trim cover protector (1) to the lower trim cover (2).

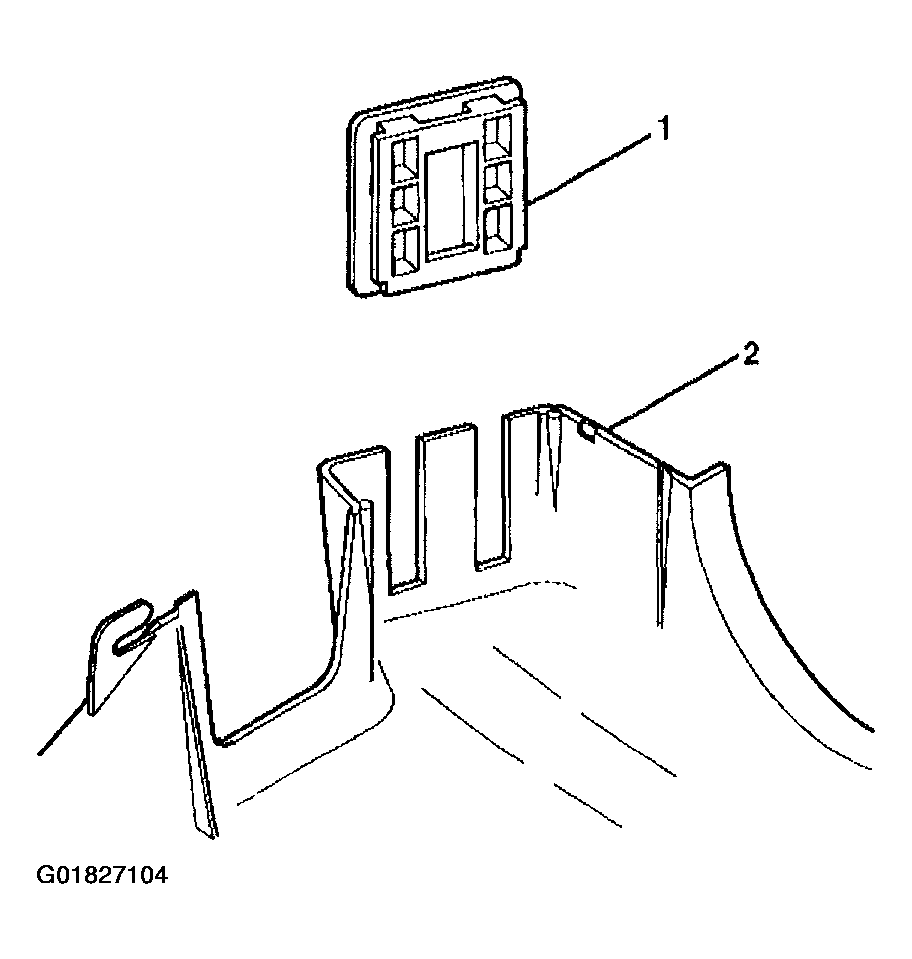

Fig 2: Trim Cover Protector
Courtesy of GENERAL MOTORS CORP.
Install the upper trim cover (2) and secure by using the TORX® head screw (1).
Tighten

Tighten the screw to 1.5 N.m (13 lb in).

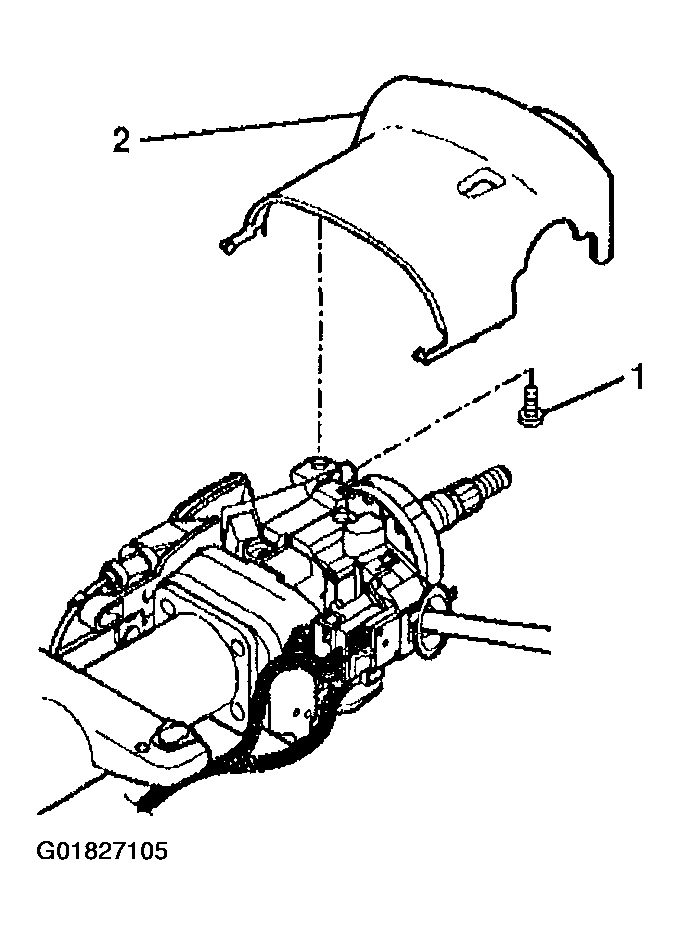

Fig 3: Upper Trim Cover
Courtesy of GENERAL MOTORS CORP.
Install the lower trim cover (1) and secure by using 2 pan head tapping screws (2).

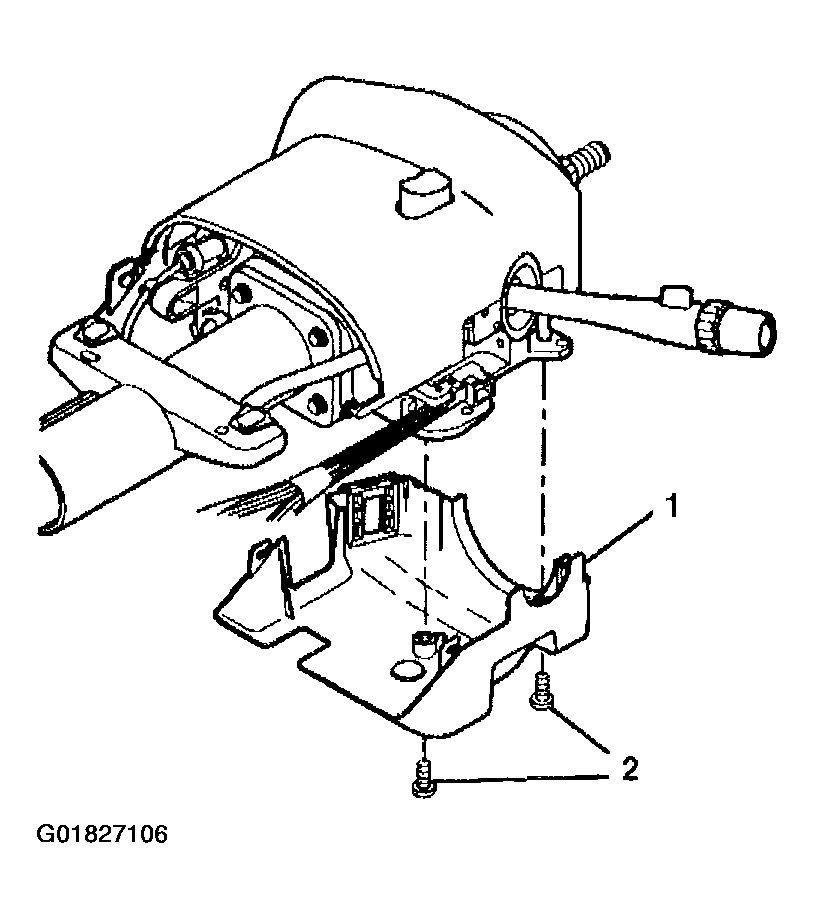

Fig 4: Lower Trim Cover
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the screws to 3.5 N.m (31 lb in).
Install the tilt lever assembly. Refer to TILT LEVER REPLACEMENT - On Vehicle .
Install the steering wheel onto the column. Refer to Steering Wheel Replacement .
Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
