Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .

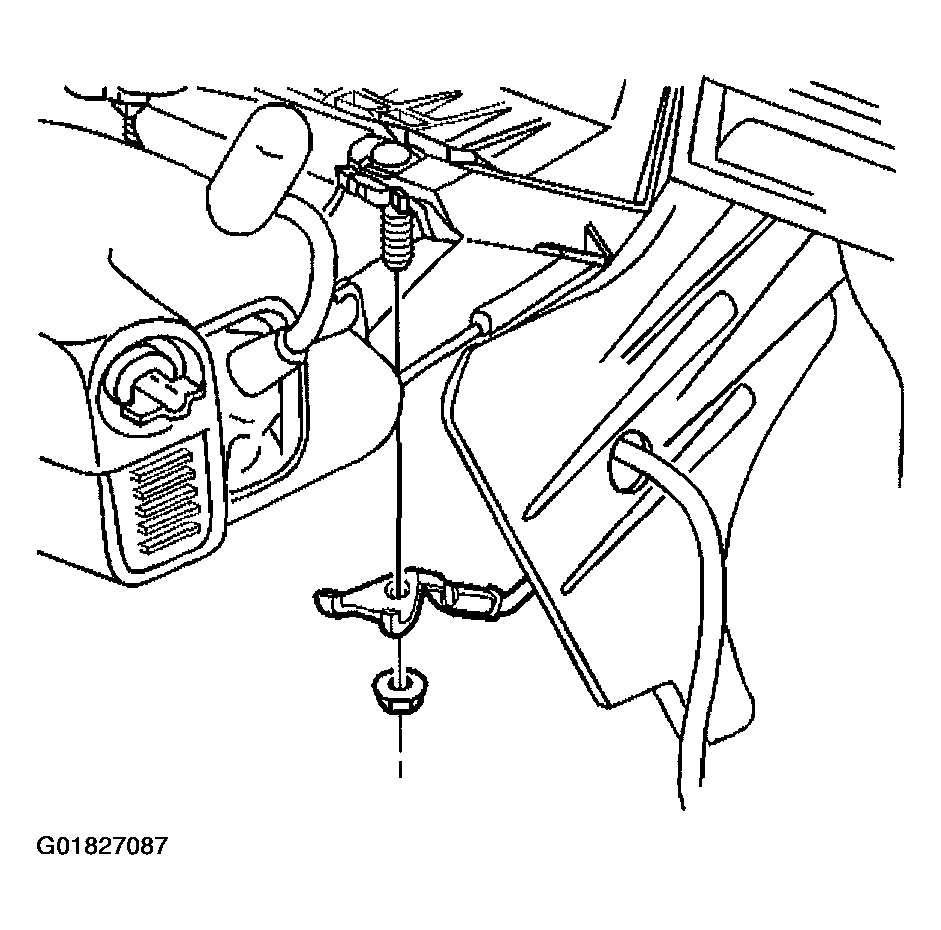

    2. Fig 1: Steering Column Upper Nut
    G01827087Courtesy of GENERAL MOTORS CORP.
  2. Remove the steering column upper nut.
  3. Remove the center console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR .
  4. Remove the anchor cable nut from the center console bracket.

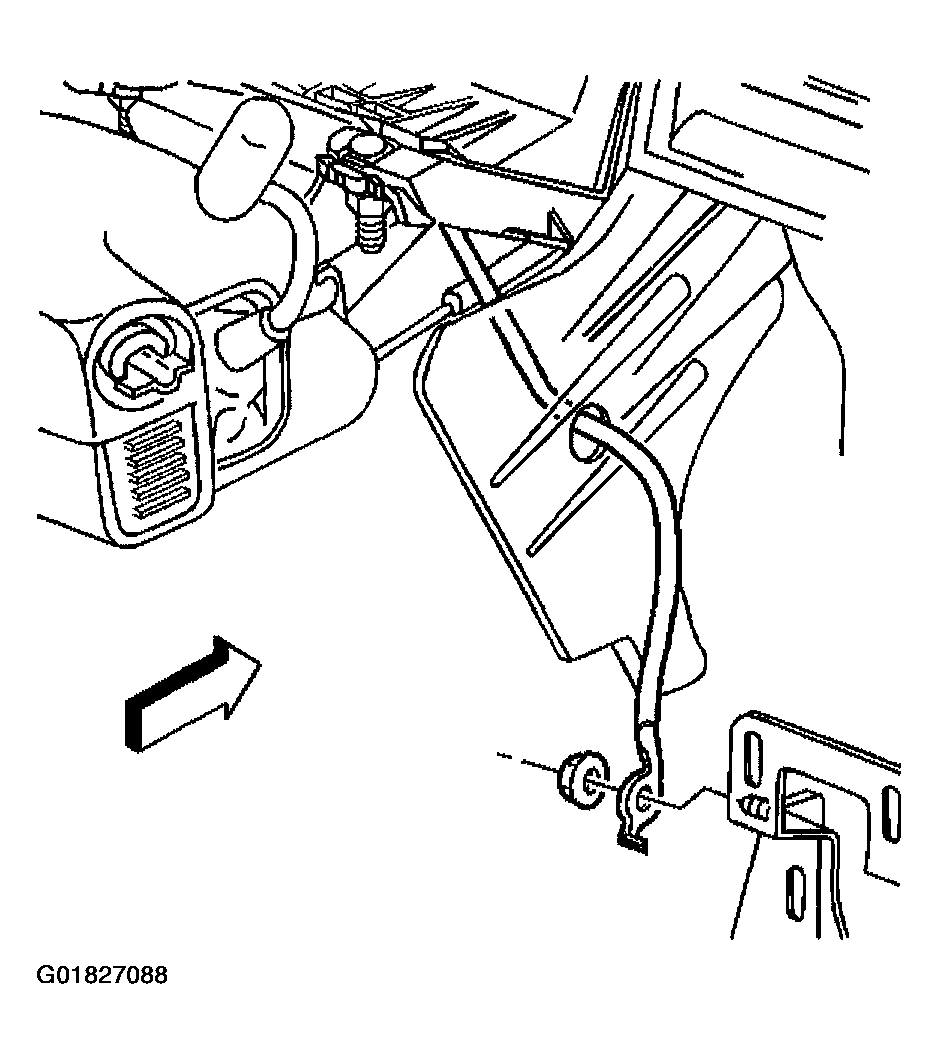

    Fig 2: Removing Anchor Cable Nut From The Center Console Bracket
    G01827088Courtesy of GENERAL MOTORS CORP.
  5. Remove the anchor cable.
